48 Cores Fiber Optic Patch Panel Cabinet Welding Tray 4 x 12F Rack Mounting
  • name
  • name
  • name
  • name

48 Cores Fiber Optic Patch Panel Cabinet Welding Tray 4 x 12F Rack Mounting

MOQ: 50PCS
Price: Negotiable
Standard Packaging: 1 pc / carton box
Delivery Period: 3-5 days
Payment Method: T/T or western Union
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO, SGS
Model Number
ODF-UT4-SC/FC
Capacity:
48cores
Dimension:
485*300*140mm
Weight:
6.9kgs
Connector Type:
FC/PC,SC/PC,SCAPC,FC/APC,LC/APC,ST/UPC
Splice Tray Qty:
4pcs X12 Fibers
Splice Tray Capacity:
12 Fibers
Pigtail Type:
Sc Fc Lc St Pigtail 0.9mm1.5meter
Material:
Cold Rolled Steel Sheet
Metal Thickness:
1.0 Mm
Highlight:

optical distribution frame

,

sliding patch panel

Product Description

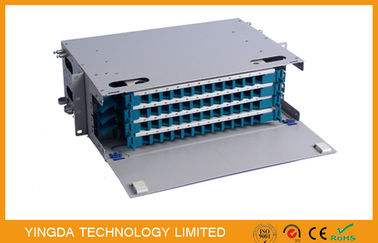

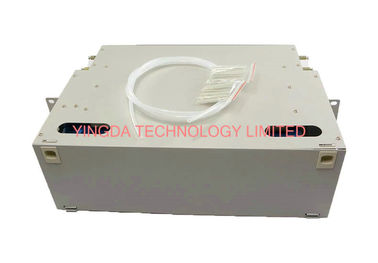

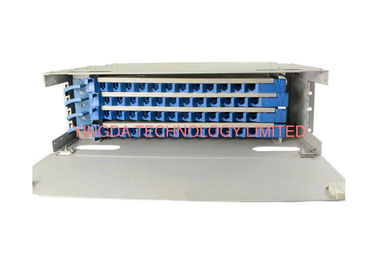

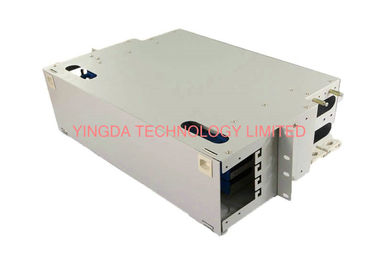

48 Cores Fiber Optic Patch Panel Cabinet Welding Tray 4 x 12F Rack Mounting


48Cores ODF optical fiber distribution frame is standard 19 inch chassis, capacity including 48Cores, It is high density, all modular design. This unit box make fiber splicing, fiber cable storage, cable distribution in one set, each fused distribution module can be individuallyextracted,satisfy the need of on and off the frame operation.


Large capacity optical distribution frame also are good operation, fused distribution module can be installed FC, SC,ST, LC and many other adapters, and is suitable for common fiber optic pigtails and ribbon pigtail, equipped with 12 core integrated fiber melting unit tray, can be directly welded.



Main Technical Parameters


  1. Environment temperature: -5 ~+45°C
  2. Relatively humidity:≤85% (+30°C)
  3. Atmospheric pressure:70~166 KPa
  4. Connector attenuation (Interchangeable and repeat): ≤0.5dB
  5. Insertion loss: ≤ 0.3dB
  6. Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
  7. Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC), 1min no breakdown, no arc
  8. Isolation resistance between high voltage protection place and distribution frame: ≥ 100MΩ/ 500V (DC)
  9. By cascading 12 port splice integration module, configurable 12-144 core, 12 core per tray
  10. Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.


Structure features


  • Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
  • The downward and the side door use imported lock
  • The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc
  • Configure reinforced core and cable fixed seat,complete accessories


Performance advantage

  • Good sealing performance, flexible configuration, quick installation
  • Set  three functions: the optical fiber splice, cable storage, cable distribution in one set
  • Easy operation, reliable grounding, protect the safety
  • The full protection of the jumping fiber, ensure the bending radius ≥ 40mm


Standard package


Box body

1pc

Screws

4pcs

Sleeve (40/45/60mm)

4pcs

Buffer tube

1pc

Welding module tray 12core

4pcs
