Fiber Optic OTDR Launch Cable Box 1KM SC FC LC ST G.652D Corning Single Mode

MOQ: 1 pc
Price: negotiable
Standard Packaging: 1pc/box
Delivery Period: 7days after payment
Payment Method: Western Union, T/T
Supply Capacity: 5,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
YDLB-SCA-SCA-02CR-1.0
Connector:
SC/APC
Fiber Count:
1
Insertion Loss:
< 0.2dB
Fiber Type:
SM Singlemode
Package:
Box
Cable Color:
Yellow
Cable Diameter:
3.0mm
Temperature:
-40~+80°C
Cable Loss:
0.5dB/km
Cable Length:
1km
Highlight:

fiber optic tool kits

,

fiber polishing film

Product Description

Fiber Optic OTDR Launch Cable Box 1KM SC FC LC ST G.652D Corning Single Mode



Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in many different configurations and fiber lengths, maximum can hold up to 2km.



Technical Parameter



Dimension -L*W*H (cm) 23.8*14.1*6.7cm / 13.5*9*4.3cm
Material SR Polypropylene
Color Black / yellow
Weight 0.75k/ 0.35kg (without fiber)
Operating temperature -40°C to +55°C
Typical loss <1dB @ 1310nm for 1km
Connector type SC, LC, FC, ST,E2000, etc.
Fiber type SMF-28e
Fiber brand Corning/YOFC/OFS/DRAKA/YOFC/Fiber home, etc
Fiber length 500mts, 1km, 2km,etc.

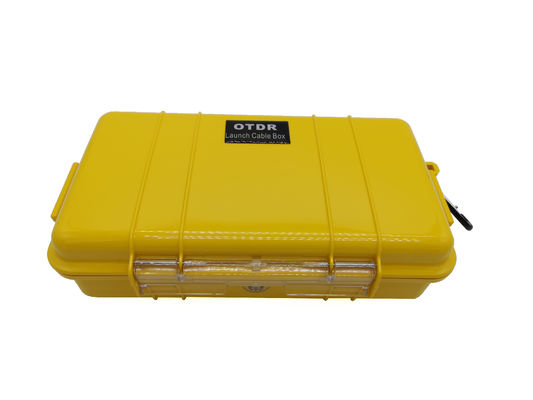

Fiber Optic OTDR Launch Cable Box 1KM SC FC LC ST G.652D Corning Single Mode 0

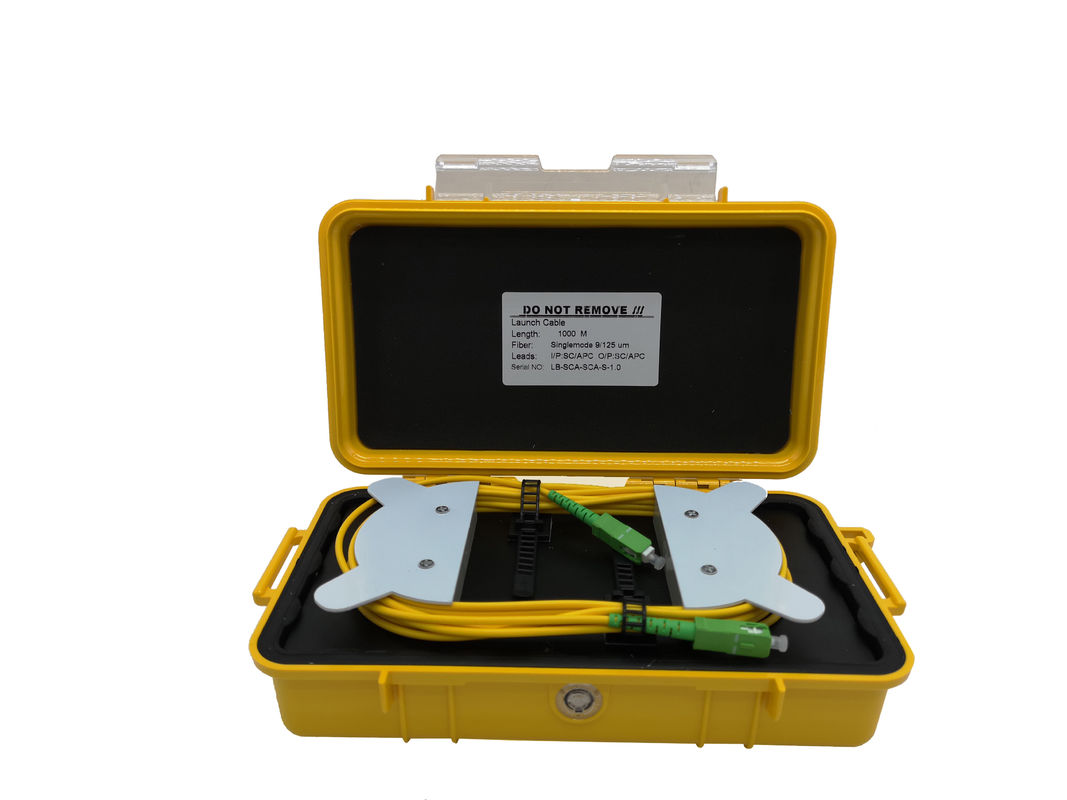

Fiber Optic OTDR Launch Cable Box 1KM SC FC LC ST G.652D Corning Single Mode 1

Features

  • Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
  • Compound Latch for positive seal and easy opening with locking feature.
  • Water and dust proof allowing the unit to be taken into almost any environment
  • Case can house up to 2,000 meters of fiber
  • Auto Purge Valve for changes in altitude and temperature
  • Different connectors can be available, SC LC ST FC E2000,etc.

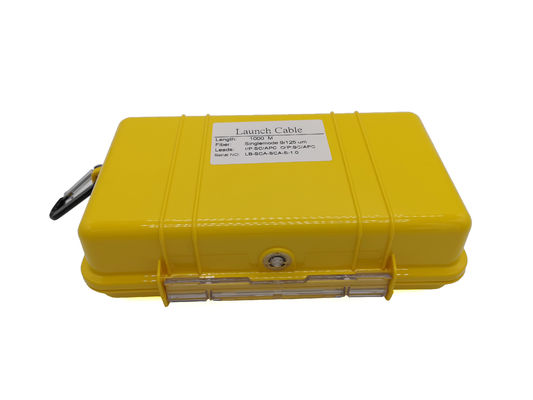

Fiber Optic OTDR Launch Cable Box 1KM SC FC LC ST G.652D Corning Single Mode 2

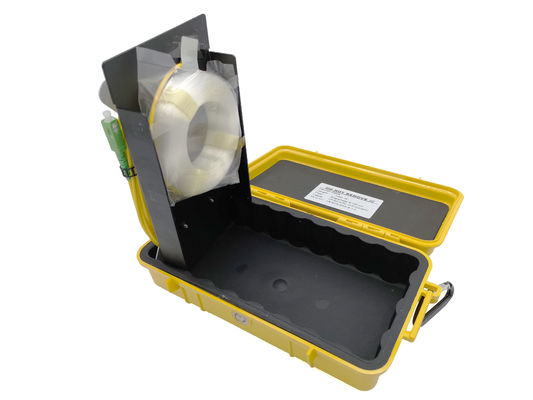

Fiber Optic OTDR Launch Cable Box 1KM SC FC LC ST G.652D Corning Single Mode 3

Order information -YDLB-A-B-FTFB-L



YDLB - A=input connector - B=output connector - FT=Fiber type FB=Fiber brand - L=Length(m)

YD=yingda

LB=launch box



SCU=SC/UPC

SCA=SC/APC

FCU=FC/UPC

FCA=FC/APC

E2U=E2000/UPC

E2A=E2000/APC

... ...

XXX=null



SCU=SC/UPC

SCA=SC/APC

FCU=FC/UPC

FCA=FC/APC

E2U=E2000/UPC

E2A=E2000/APC

... ...

XXX=null



2D=G652D

A1=G657A1

A2=G657A2

B3=G657B3

M1=OM1

M2=OM2

M3=OM3

M4=OM4

CR=corning

OFS=OFS

DK=Draka

FJ=Fujikura

YF=YOFC

FH=Fiberhome

... ....



0.5=500m

1.0=1km

2.0=2km

... ...



For example:

Launch cable box 1km corning 9/125um FC/UPC-LC/APC

Model-- YDLB-FCU-LCA-2DCR-1.0



Fiber Optic OTDR Launch Cable Box 1KM SC FC LC ST G.652D Corning Single Mode 4
