| Brand Name: | YINGDA |
| Model Number: | FPG-SCM2-12-09-15 |
| MOQ: | 50 pcs |
| Price: | negotiable |
| Delivery Time: | 7days after payment |
| Payment Terms: | Western Union, T/T |

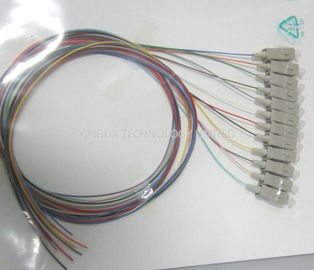

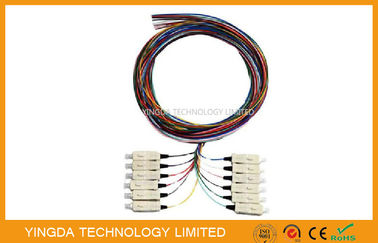

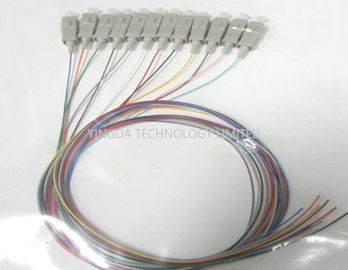

Fiber Optic Pigtail SC MM 50/125um 12Cores, 12 Fibers Pigtail LSZH Multimode 3M
Features
multi fiber can be choosed from 1core, 2core to 24cores,48core,96core,etc.
Can be connected with MT-RJ, SC, ST, FC, LC,MU,MPO/MTP,LX5,DIN,D4,ESCON connectors.
Before delivery,will test each patch cord insertion loss
customized assembly.
100 % test before delivery
Optical Specification
|
Item |
Single mode(nomomodo) |
Multimode(Multimodo) |
|
Wavelength |
1310&1550nm |
850&1300nm |
|
Fiber type |
9/125um |
62.5/125um,50/125um,50/125um OM3,50/125um OM4 |
|
Connector type |
SC ST FC LC MU MTRJ E2000 DIN D4 ESCON |
|
|
Insertion loss on average |
≤0.3dB |
≤0.3dB |
|
Max. insertion loss |
≤0.5dB |
≤0.5dB |
|
Return loss |
UPC≥55dB;APC≥65dB |
≥20dB |
|
Operating temperature |
-40~+75℃ |
|
|
Storage temperature |
-40~+85℃ |
|
Order information
|
Connector |
Fiber type |
Cable diameter |
Cable jacket |
Length |
|
LC/UPC |
9/125um |
0.9mm simplex |
PVC |
0.5m |
|
LC/APC |
50/125um |
1.8mm simplex |
LSZH |
1m |
|
FC/UPC |
62.5/125um |
2.0simplex |
|
3m |
|
FC/APC |
50/125um OM3 |
3.0mm simplex |
|
5m |
|
SC/UPC |
50/125um OM4 |
1.8mm duplex |
|
... |
|
SC/APC |
|
2.0mm duplex |
|
|
|
ST/UPC |
|
3.0mm duplex |
|
|
|
MTRJ/female |
|
3.0mm round |
|
|
|
MTRJ/male |
|
... |
|
|
|
MU/UPC |
|
|
|
|
|
MU/APC |
|
|
|
|
|
E2000 |
|
|
|
|
|
|
