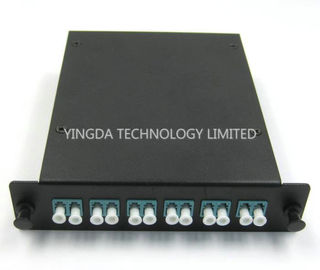

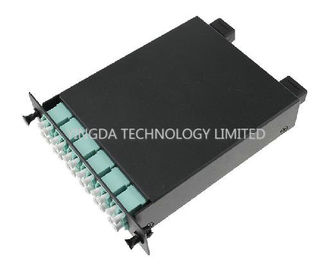

24 Fiber SC FC ST LC MPO / MTP Cassette Modules For Patch Panel Distribution

12 Fibers 24 Fibers SC FC ST LC MPO / MTP Cassette Modules For

 Patch Panel Distribution





MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors.

They are used to interconnect MPO backbones with LC or SC patching.



Modular system allows for rapid deployment of high density data center infrastructure as well as

 improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted

in 1U or 4U 19”multi-slot chassis.

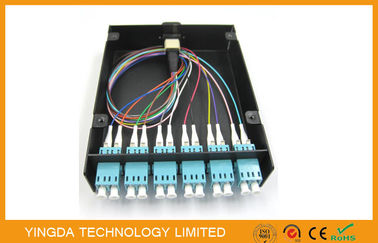

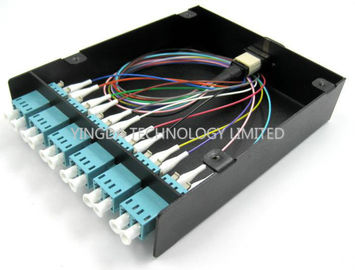

MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance

and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion

loss for demanding power budget high speed networks.



Features

  1. MTP/MPO standard compliant multifibre connector
  2. High-density and small design;Easy and fast installation
  3. 12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical parts
  4. Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2)fiber.
  5. Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed
  6.  quality and performance.
  7. Metallic shell with high strength protect the inner fibers effectively
  8. Supports easy reconfiguration for moves, adds, and changes
  9. High performance zirconia sleeve adaptors



Application

  • Data Centre Infrastructure
  • Storage Area Network-Fiber Channel
  • Emerging 40 & 100Gps Protocols
  • Parallel optics



Technical Specification

24 Fiber SC FC ST LC MPO / MTP Cassette Modules For Patch Panel Distribution 0

Parameters

Standard Fiber Cable Assemblies

Fiber Type

SM(G.652/G.657A)

MM(OM1/OM2/OM3/OM4)

Jacket Materials

LSZH/OFNR/PVC

Connector Type

SC/LC/ST/LC/MU/MTRJ/MPO/E2000

Ferrule Materials

Ceramic

Testing Wavelengths

1310±30/1550±30nm

850±30/1300±30nm

Insertion Losss(dB)
TIA/EIA-455-107

≤ 0.3dB
(PC/UPC/APC)

≤ 0.3dB
(PC/UPC)

Return Loss(dB)
TIA/EIA-455-107

≥45dB(PC/UPC)
≥55dB(APC)

≥35dB(PC/UPC)

Exchangeability

≤ 0.2dB

Cable Assemblies

Pigtail/Simplex/Duplex/Fan-out Patchcord

Operating Temperature (° C)

-10~ + 70

Storage Temperature (° C)

-40 ~ +85

Package

1unit/bag

*All values specified are with connectors.
