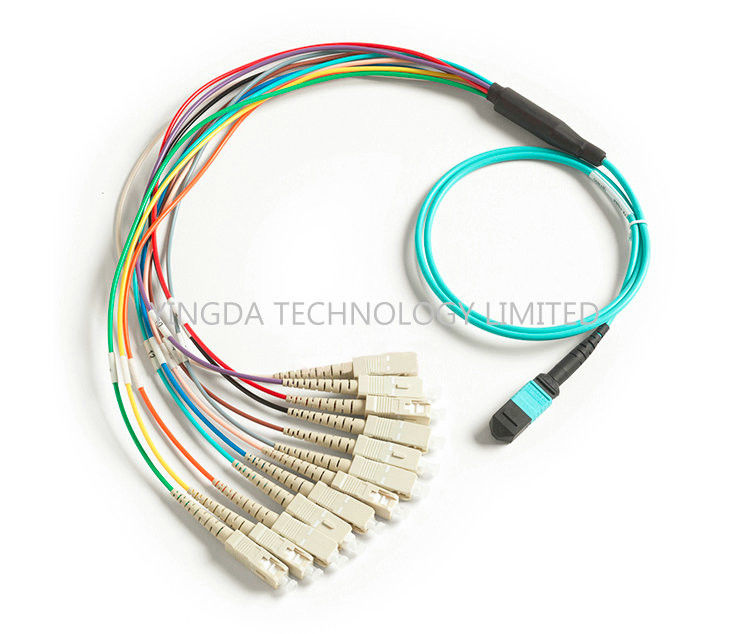

OM3 10G MTP MPO Cable 7.8mm Ferrule SC 900um , Multi Fiber Optic Pigtails

OM3 10G MTP MPO Cable 7.8mm Ferrule SC 900um , Multi Fiber Optic Pigtails

  • High Light

    MPO patch cord

    ,

    mpo patch cable

  • Connector
    MPO Male
  • Fiber Type
    OM3 10G
  • Cable Type
    Multi-fiber Ribbon Cable
  • Fiber Count
    12 Fiber SC
  • Insertion Loss
    <0.3dB
  • Package
    Vacuum / Plastic Packing
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    MTPf-12SC-OM3-03
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1 pc/ box, 160 pcs/carton box
  • Delivery Time
    7days after payment
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    10,000 pcs per month

OM3 10G MTP MPO Cable 7.8mm Ferrule SC 900um , Multi Fiber Optic Pigtails

OM3 10G MTP MPO Cable 7.8mm Ferrule, 12 Multi-Fiber Fiber Optic Pigtails SC 900um





MPO (Multi-fiber Push On) generally is MT series connectors. MT series ferrule end face

connect precisely through the 2pcs 0.7mm guide pins and guide holes at both sides.MPO

can have 2-12 Core design,maximum 24 Cores.At present, most use 8Fibers and 12 Fibers

connectors. MPO connector is compact size,multi-fiber,small, widely applied to high density

integrated optical line environment in the routing process.





Application

  • FTTH, FTTX
  • 40/100G connected SFP, SFP+ transceiver inside the equipment.
  • Telecommunication
  • CATV, LAN network
  • Fiber oiptic sensors
  • Optical transmission system
  • Test equipment



MPO MTP connector spare parts

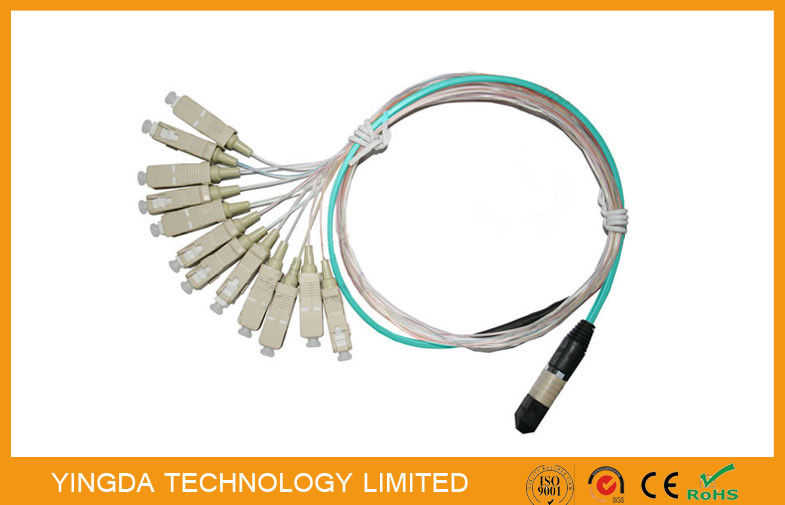

 OM3 10G MTP MPO Cable 7.8mm Ferrule SC 900um , Multi Fiber Optic Pigtails 0





YINGDA have many years experience in production management, can provide a variety of MPO truck cable, harness cable, fanout cable with break-out kits (round or square 2-24 Cores 0.9mm, 2.0mm fan-out ), ribbon cable, bunchy cable, etc. All products conforms to Telcordia-GR-326, IEC standards and ROHS requirements.





Fiber optic multi-fiber cable two types:

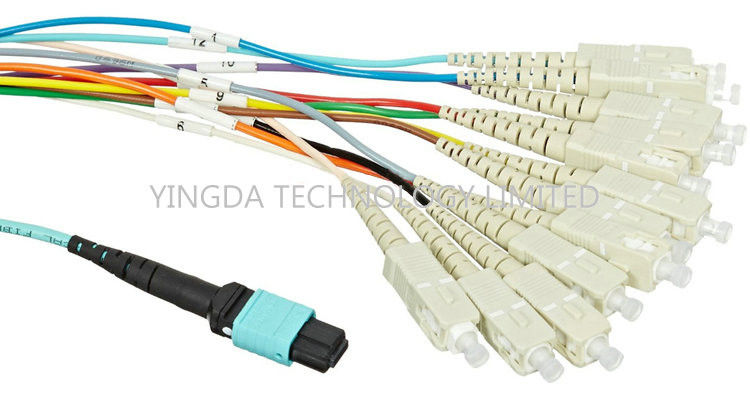

OM3 10G MTP MPO Cable 7.8mm Ferrule SC 900um , Multi Fiber Optic Pigtails 1



Order information



P/N

Description

MPOm-12SC-OM3

MPO Fan-out patch cord, OM3 (50/125um),

MPO Male-12x SC UPC 1m Orange

MPOm-62SC-OM3

MPO Fan-out patch cord, OM3 (50/125um),

MPO Male-6xDuplex SC UPC 1m Orange

MPOm-62SC-OM3-U

MPO Fan-out patch cord, OM3 (50/125um),

MPO Male-6xDuplex SC UPC 1m Orange uni-boot
