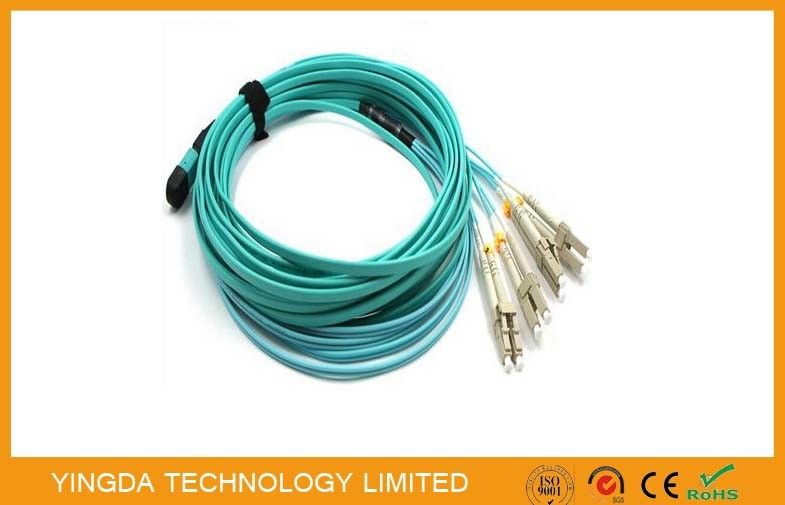

MPO- 8 LC 3 MTP MPO Cable Patch Cord With QSFP + SR4 Optical Transceivers

MOQ: 100 pcs
Price: 0.2USD-100USD
Standard Packaging: 1pc/ box,200pcs/carton box
Delivery Period: 7days after payment
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
MTP-LC duplex 8Fibers
Connector:
MTP Female Connector
Fiber Type:
OM3 10G
Cable Type:
Ribbon With Fanout Kits
Fiber Count:
8 Fibers
Insertion Loss:
<0.5dB
Package:
Vacuum Packing
Highlight:

MPO fanout cable

,

mpo patch cable

Product Description

MPO- 8 LC 3 M Patch Cord, QSFP+ SR4 Optical Transceivers MTP MPO Cable Patch Cord





Model

Fiber type

Cable type

Connector

type

Boot

diameter

Polish

method

Length

MPO-8LC-OM3-3M

8Fiber OM3

50/125μm

Ribbon cable

MPO-female

3.0mm

PC

3M





MPO Cable Note:



This fiber optic jumper patch cord is MTP-8LC, can connector QSFP-SR4 optical transceivers. Patch cord is MPO  to 8LC multimode 8fibers, insertion loss:0.7dB.

Length can customized.

Connectors can be customized.

Lead time: about 1week.





MPO MTP Cable Description



MPO (Multifiber Push On) generally is MT series connectors. MT series ferrule end face connect precisely through the 2pcs 0.7mm guide pins and guide hole at both sides.MPO can have 2-12 Core design,maximum 24 Cores.At present, most use 8Fibers and 12 Fibers connectors.

MPO connector is compact size,multi-fiber,small,widely applied to  high density integrated optical line environment in the routing process,application of FTTX. and 40/100G connected SFP, SFP+ transceiver inside the equipment.





YINGDA have many years experience in production management, can provide a variety of MPO truck cable, harness cable, fanout cable with break-out kits(round or square 2-24  Cores 0.9mm, 2.0mm fan-out ), ribbon cable, bunchy cable, etc. All products conforms to Telcordia-GR-326, IEC standards and ROHS requirements.





MPO to MPO Cable  Order information

Model

Specification

Length.Meters

Cable

MPO-MPO-OM3-1M

MTP-MTP/MPO-MPO OM3 50/125um

fiber optic patch cord 8Fibers

1meter

Ribbon cable

MPO-MPO-OM3-2M

MTP-MTP/MPO-MPO OM3 50/125um

fiber optic patch cord 8Fibers

2meter

Flat cable

MPO-MPO-OM3-3M

MTP-MTP/MPO-MPO OM3 50/125um

fiber optic patch cord 8Fibers

3meter

Round cable

...

...

...

...





MPO 12 Cable Specifications



Item

Parameters

Connectors

MPO

Fiber type

MM (PC)

Working wavelength

850nm, 1300nm

Test wavelength

850nm, 1300nm

End face polishing method

PC

Insertion loss

MPO: typical ≤0.40dB, max. ≤0.75dB

Return loss

≥50dB

Applicable cable

MPO: ribbon or bundle cable

Repeat ability

≤0.10dB

Interchange ability

≤0.20dB

Durability

≤0.20dB (after 500matings)

Vertical Pull Force

≥120N( except 0.9mmcable) or customized

Working Temperature

-20℃ to +70℃

Storage Temperature

-40℃to +85℃



MPO female connector structure

MPO- 8 LC 3 MTP MPO Cable Patch Cord With QSFP + SR4 Optical Transceivers 0

MPO- 8 LC 3 MTP MPO Cable Patch Cord With QSFP + SR4 Optical Transceivers 1



How to confirm the male or Female Connector?

The Male connector with 2pcs Pin, and the Female Connector  with 2 guide holes.



MPO- 8 LC 3 MTP MPO Cable Patch Cord With QSFP + SR4 Optical Transceivers 2MPO- 8 LC 3 MTP MPO Cable Patch Cord With QSFP + SR4 Optical Transceivers 3

The connector has difference color to option, normal SM patch cord is  dark green connector, yellow color is Elite-IL patch cord.





YINGDA'S MPO Cable Workshop



MPO- 8 LC 3 MTP MPO Cable Patch Cord With QSFP + SR4 Optical Transceivers 4MPO- 8 LC 3 MTP MPO Cable Patch Cord With QSFP + SR4 Optical Transceivers 5

MPO- 8 LC 3 MTP MPO Cable Patch Cord With QSFP + SR4 Optical Transceivers 6MPO- 8 LC 3 MTP MPO Cable Patch Cord With QSFP + SR4 Optical Transceivers 7



YINGDA provide MPO truck cable, breakout cable,fanout cable, LGX Module box, 1U 96fibers mpo patch panel.
