Standard Metal Sliding Tray Fiber Optic 19” Patch Panel 12 / 24 Port Fiber Optical Distribution Box GPSM-1U / 2U / 4U
  • name
  • name
  • name
  • name

Standard Metal Sliding Tray Fiber Optic 19” Patch Panel 12 / 24 Port Fiber Optical Distribution Box GPSM-1U / 2U / 4U

MOQ: 100 PCS
Price: Negotiable
Standard Packaging: Packed in plastic bag, in a shipping outer carton box.
Delivery Period: 5 working days after received your payment
Payment Method: T/T or western Union, ,MoneyGram
Supply Capacity: 500,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
GPSM-24SCU-FULL
Highlight:

12 Port Fiber Optical Distribution Box

,

sliding patch panel

,

24 Port Fiber Optical Distribution Box

Product Description

Standard Metal Sliding Tray Fiber Optic 19” Patch Panel 12 / 24 Port Fiber Optical Distribution Box GPSM-1U / 2U / 4U

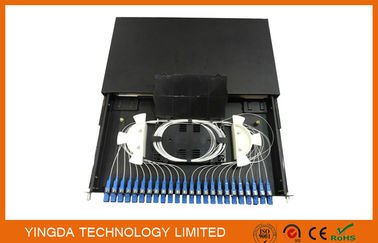

19” standard metal Sliding tray Rack Mount Fiber Optic Patch Panel GPSM-1U/2U/4U,12/24port SC fiber optic patch panel simplex, pre-assembly



slidinh tray fiber optic patch panel features

  1. Applicable in the termination and 19'' standard structure, sliding design,rack mounted
  2. Suitable for FC,SC,ST,LC,E2000 adapters
  3. max. capacity: 144 cores SC
  4. customer logo can be silk print.
  5. sample is available



Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

Qty/

carton(pc)

G.w

(kg)

GPSM-1U-SC12

430*300*1U

12

485*420*350

5

29

GPSM-1U-FC24

24

485*420*350

5

29

GPSM-1U-2SC24

48

485*420*350

5

29

GPSM-2U-FC48

430*300*2U

48

500*355*550

4

26.5

GPSM-4U

130*300*4U

192

500*350*540

1

18.9



Advantage

  • Cold rolled steel sheet,with electrostatic spraying
  • FC,SC,ST,LC adapters available
  • Box size: 430*250*1U availabl, for cost save.



Fiber patch panel empty box

Standard Metal Sliding Tray Fiber Optic 19” Patch Panel 12 / 24 Port Fiber Optical Distribution Box GPSM-1U / 2U / 4U 0Standard Metal Sliding Tray Fiber Optic 19” Patch Panel 12 / 24 Port Fiber Optical Distribution Box GPSM-1U / 2U / 4U 1Standard Metal Sliding Tray Fiber Optic 19” Patch Panel 12 / 24 Port Fiber Optical Distribution Box GPSM-1U / 2U / 4U 2Standard Metal Sliding Tray Fiber Optic 19” Patch Panel 12 / 24 Port Fiber Optical Distribution Box GPSM-1U / 2U / 4U 3

Fiber sliding drawer patch panel more product show:

Standard Metal Sliding Tray Fiber Optic 19” Patch Panel 12 / 24 Port Fiber Optical Distribution Box GPSM-1U / 2U / 4U 4
