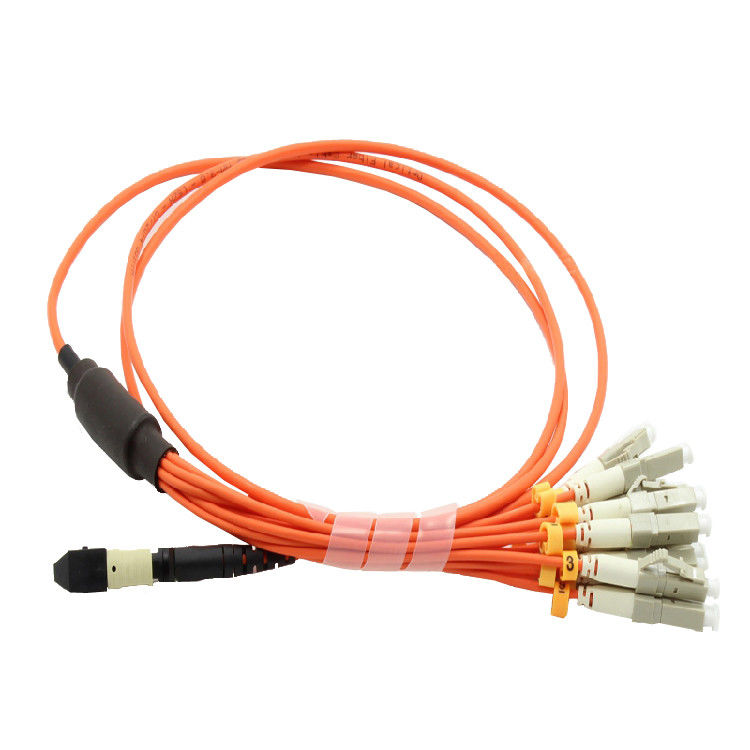

LC Simplex MTP MPO Cable OS19 / 125UM 12 Fibers Bundle Cable Vacuum packing

LC Simplex MTP MPO Cable OS19 / 125UM 12 Fibers Bundle Cable Vacuum packing

  • High Light

    LC Simplex MTP MPO Cable

    ,

    OS19 MTP MPO Cable

    ,

    12 Fibers MTP MPO Cable

  • Connector
    MPO MTP Male
  • Fiber Type
    OS1 9/125UM
  • Cable Type
    Bundle Cable
  • Fiber Count
    12 Fibers LC Simplex
  • Insertion Loss
    <0.3dB
  • Package
    Vacuum Packing
  • Return Loss
    ≥50dB (PC)
  • Tensile Strength
    ≥10kg
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    MPOf-12LC-OM2-03
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1 pc/ box, 160 pcs/carton box
  • Delivery Time
    7days after payment
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    10,000 pcs per month

LC Simplex MTP MPO Cable OS19 / 125UM 12 Fibers Bundle Cable Vacuum packing

12 Fibers Breakout MPO / MTP -LC Harness Patch Cord Cable 0.9mm SM





Description

YINGDA MPO / MTP Fan-out patch cords are simplex multi-fiber Cable using the MPO / MTP connector in fiber counts of 4, 8, 12, 24 or 48. There is Male or Female MPO / MTP connectors

on each end, the other end is standard connectors like FC, SC, ST, LC,etc, connect both is break-out kits, which can be round or square type, all on customer request.



MPO Available in 4~48 fibers versions as well as multi-mode (62.5/125, 10G OM2 / OM3 / OM4, Bend-insensitive fiber, etc.) and single-mode (G652D, G657A1 etc.) fiber types.



YINGDA products are 100% tested at our factory to deliver optimal performance and reliability.



Features

  1. MPO / MTP connector interface patchcord.
  2. Choices of different cable structure to cater for different installation needs.
  3. Available in 4/8/12/24/48 cable fibers from round or ribbon optical cable.
  4. Improves and simplifies fiber routing, decreases fiber management space.
  5. Comply with IEC 61754-7, Telcordia GR-1435-CORE, RoHS.



Specification





Single mode

Multimode

Insertion Loss

≤0.3dB

≤0.3dB

Return Loss

≥50dB (PC)

≥20dB

Repeatability

≤0.1

≤0.1

Durability

≤0.2 dB typical change, 1000 matings

≤0.2 dB typical change, 1000 matings

Interchangeability

≤0.2dB

≤0.2dB

Tensile strength

≥10kg

≥10kg

Operating Temperature

-40 to + 80°C

-40 to + 80°C

Storage Temperature

-40 to + 80°C

-40 to + 80°C





Application

1. LAN, WAN and Metro Networks

2. FTTH project & FTTX Deployments

3. CATV System

4. GPON, EPON

5. Fiber Optic Test Equipment

6. Data-base Transmit Broadband Net



Order information



P/N

Description

MPOmA-12LC-S62

MPO Fan-out patch cord, OS2 (G652D),

MPO/APC Male-12xLC UPC 1m Yellow

MPOmA-62LC-S62

MPO Fan-out patch cord, OS2 (G652D),

MPO/APC Male-6xDuplex LC UPC 1m Yellow

MPOmA-12LC-S67

MPO Fan-out patch cord, SM (G655A),

MPO/APC Male-12xLC UPC 1m Yellow

MPOmA-62LC-S67

MPO Fan-out patch cord, SM (G655A),

MPO/APC Male-6xDuplex LC UPC 1m Yellow

MPOm-62LC-S62-U

MPO Fan-out patch cord, OS2 (G652D),

MPO/APC Male-6xDuplex LC UPC 1m Yellow uni-boot

MPOm-62LC-S67U

MPO Fan-out patch cord, SM (G655A),

MPO/APC Male-6xDuplex LC UPC 1m Yellow uni-boot





Assembly cable structure

LC Simplex MTP MPO Cable OS19 / 125UM 12 Fibers Bundle Cable Vacuum packing 0



LC Simplex MTP MPO Cable OS19 / 125UM 12 Fibers Bundle Cable Vacuum packing 1



The reason why Choose us:

1. On time delivery

2. Customization

3. Factory outlet

4. Large product inventory with massive production line

5. China's professional gas detection leader

6. Quality guarantee

7. Product distribution involves multi-fields, dozens of countries including some developed countries.



FAQ

1. Are you factory direct?

as a professional Cable manufacturer, specialized in MPO Patch Cable, MPO Breakout Cable, Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

2. What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord

3. Product quality guarantee period?

20 years Guarantee for fiber optic cable

4. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
