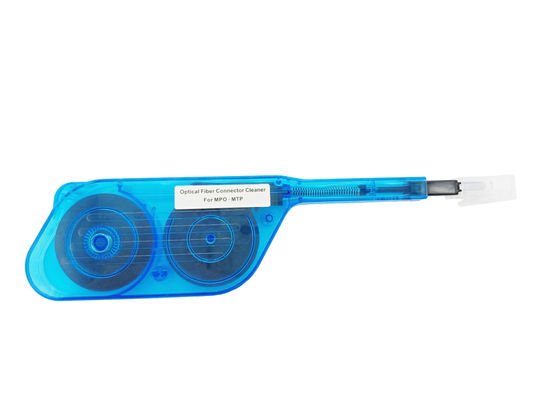

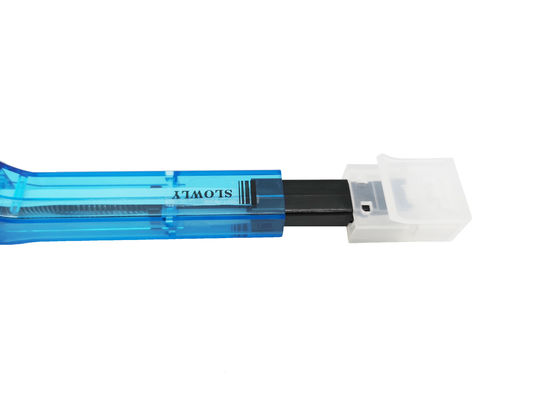

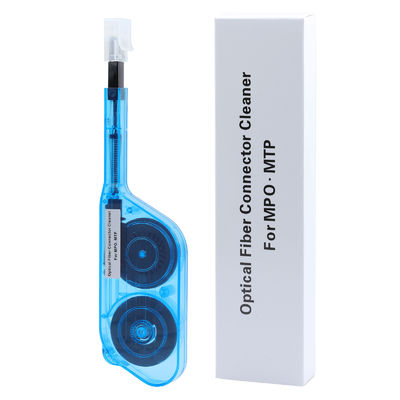

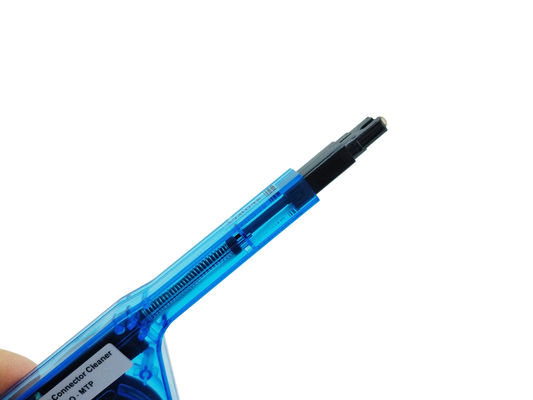

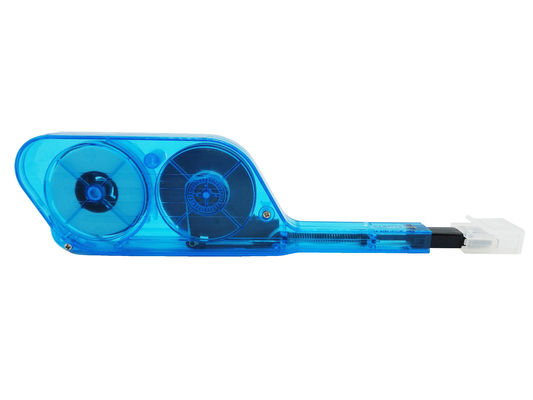

12 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times

12 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times

  • High Light

    MPO MTP 12 Fiber Tool Kits

    ,

    MPO Optical Fiber Connector Cleaner

    ,

    MTP Optical Fiber Connector Cleaner

  • Color
    Transparent Blue
  • Material
    Anti-static Resin
  • Connector
    MPO MTP Connectors
  • Life Time
    600 Times
  • Package
    Gift Box , 1pcs In A Box
  • User Manual
    English
  • Termperature
    -40~+85°C
  • Ferrule Type
    12fiber, 24fiber
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO, CE, ROHS
  • Model Number
    CLEP-MPO
  • Minimum Order Quantity
    1PC
  • Price
    Negotiable
  • Packaging Details
    1pc/ box, 5pcs/ inner box, 200pcs/carton box
  • Payment Terms
    Western Union, T/T, MoneyGram
  • Supply Ability
    500000PCS a month

12 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times

12 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times



12 Fiber MPO MTP Cleaner One-Click Optical Fiber Connector Cleaning Cleaner Pen 600 Times





Fiber Optic Cleaner Pen is designed to specially work well with the female connectors, this instruments cleans the ferrule end faces removing dust, oil, and other debris without or scratching the end face.



12 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times 0

12 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times 1



Features

  • Can clean the optical fiber connector ferrule end face ((female) in the adapter, can also directly clean connector ferrule end face (male) with matching accessories.
  • The operation is very simple, can continue obtain high quality cleaning effect in use;
  • One unit clean more than 600 fiber end;
  • The water and oil cleaning effect is much higher than the traditional cotton cleaning rod;
  • Easy to use, portable and disposable;
  • When cleaning is completed, "clicking" remind.

12 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times 212 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times 312 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times 4

Specification

Model CLEP-MPO
Connector type MPO & MTP
Housing color blue transparent
net weight 0.1kg
Material anti-static resin
Life span >600 times
Cleaning degree >99%
Dimension 215*51*15mm

12 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times 5

12 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times 612 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times 7

12 Fiber Tool Kits MPO MTP Cleaner One Click Optical Fiber Connector Cleaner 600 Times 8





The Necessity Of Of One-Click End-Face Cleaning Pen



In optical fiber communication, even he dirt or small particles which is invisible to our eyes adhered to the end face of the optical fiber connector may lead to optical signal been cut off, or result in reflection wave for fiber damage, and can even damage the source, make big damage to the whole communication system. Thus, before connection, must clean the optical fiber connectors ferrule (male), adapters (female),or devices.



Brief Introduction Of One-Click End-Face Cleaning Pen



One-Click end face cleaning pen is the innovative design and can replace the cleaning core,it is the most popular fiber cleaning tool, it replace traditional cotton swab + alcohol, when used simply press can clear the attachments on the connector ferrrule,device, modules, it is sustainable use and ensure the best cleaning effect,it is indispensable tool for cable maintenance, widely used in optical network maintenance business, engineering or equipment, device manufacturers, optical fiber end face cleaning pen easily solve the problem of optical fiber adapter ferrule cleaning.



Cost Performance Of One-Click End-Face Cleaning Pen



One-Click optical fiber end face cleaning pen is price low, high performance, good cleaning effect, its price only is 1 / 12 of the Canadian AFC-3000 cleaning gun, cleaning effect is far good than imports professional cleaning cotton. It is now widely used in the domestic optical fiber industry, and it is one of the domestic public recognition of the low price, high performance portable fiber end face cleaner.
