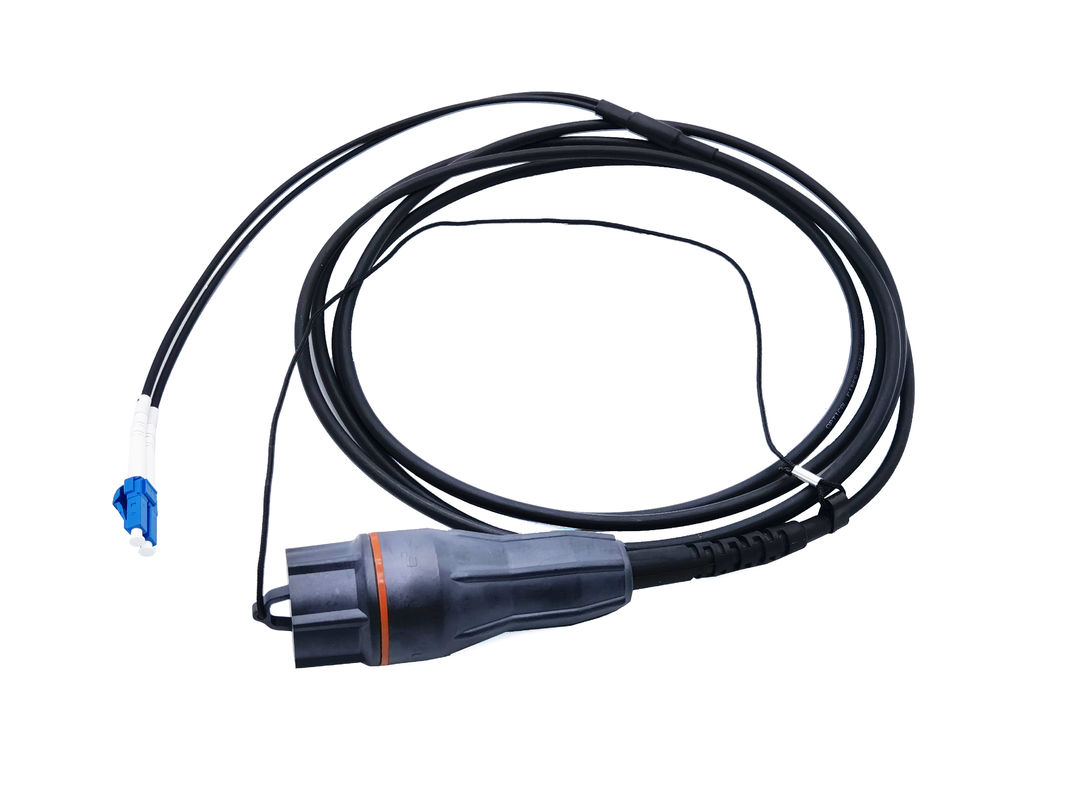

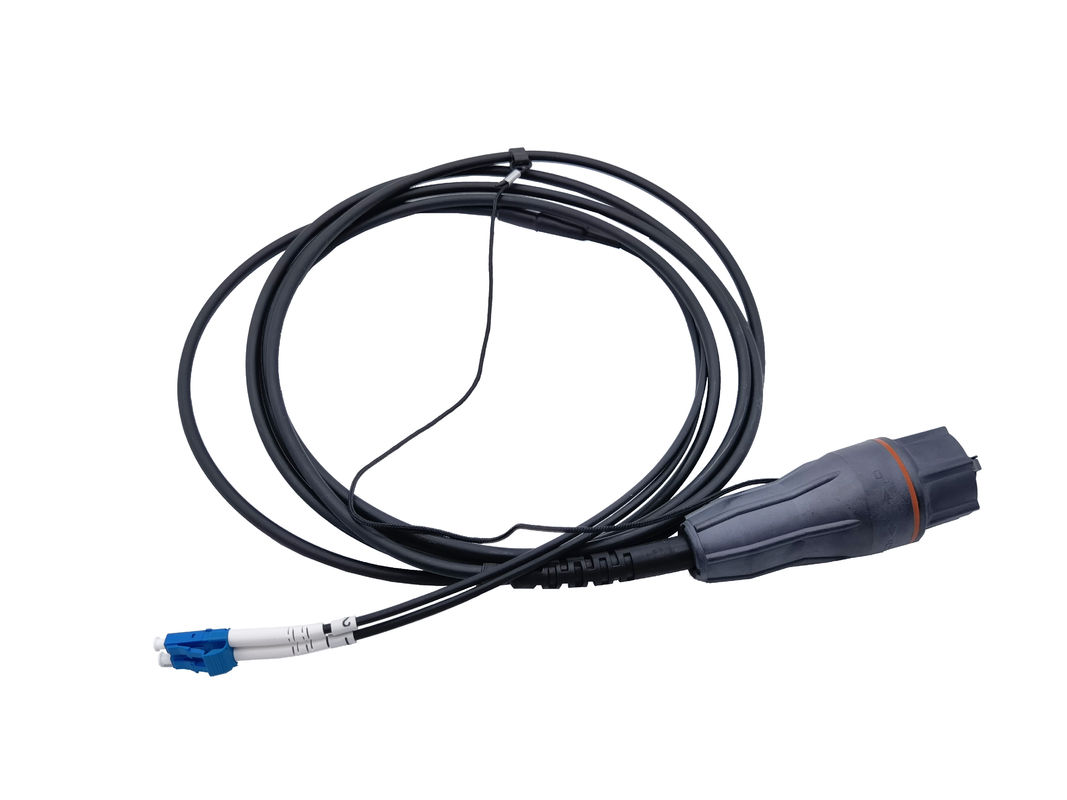

FTTA Waterproof IP67 Fiber Optic Patch Cord 4.8mm G657A2 RRH

FTTA Waterproof IP67 Fiber Optic Patch Cord 4.8mm G657A2 RRH

  • High Light

    4.8mm Fiber Optic Patch Cord

    ,

    FTTA Fiber Optic Patch Cord

    ,

    G657A2 optical patch cord

  • Application
    Outdoor FTTA
  • Connector
    LC/UPC, FullAXS-LC Connector
  • Fiber Count
    2core
  • Fiber Type
    Single Mode
  • Cable Sheath
    LSZH
  • Cable Length
    3 Meters
  • Cable Color
    Black
  • Insertion Loss
    < 0.3dB
  • Cable Diameter
    4.8mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS,ROHS
  • Model Number
    YDPC-F(LCU)-LCU-02A2-003
  • Minimum Order Quantity
    100 PCS
  • Price
    Negotiable
  • Packaging Details
    1 piece / bag
  • Payment Terms
    L/C, T/T, Western Union

FTTA Waterproof IP67 Fiber Optic Patch Cord 4.8mm G657A2 RRH

FTTA Waterproof IP67 Fiber Optic Patch Cord 4.8mm G657A2 RRH



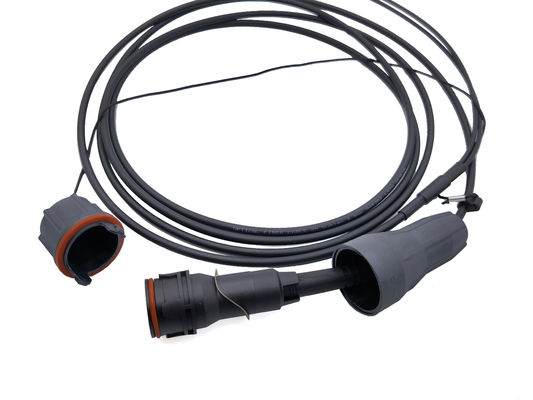

FTTA Waterproof IP67 Base Station FullAXS LC Duplex Cable Assembly LSZH 4.8mm G657A2 RRH


The new FullAXS connector systems were designed to function with a very large Z-axis tolerance, hence accommodating for the broadest range of transceivers on the market. This unique feature will allow end users to pick almost any transceiver they wish. Meanwhile, users can conveniently remove and replace transceivers through a cutout in the bulkhead that completely eliminates the need to open the entire remote radio box and expose its contents to hazardous weather conditions. For the optical connection, the connector system includes an industry-standard LC duplex interface for fast mating with all LC duplex SFP transceivers.s

FTTA Waterproof IP67 Fiber Optic Patch Cord 4.8mm G657A2 RRH 0

With the development of distributed antenna systems (DAS), Fullaxs-LC connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.



The FullAXS connector can be designed for either single mode or multi-mode optical transmission applications. Use the cable assembly firmly establish themselves through the bulkhead is directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application.

FTTA Waterproof IP67 Fiber Optic Patch Cord 4.8mm G657A2 RRH 1

Connector Parameter

Fiber type Single mode Multi-mode
Insertion loss <0.3dB <0.5dB
Return loss UPC>50dB, APC>60dB >30dB
1st connector LC duplex
2nd connector LC duplex uni-boot
Fiber count 2cores
Cable diameter 0.19”(4.8mm±0.2mm diameter)
Cable material LSZH
Cable color Black
Fiber color Blue orange




FEATURES

  • Open bulkhead for easy access to SFP
  • Positive mechanical feedback to operator when fully mated
  • One-hand mating
  • Duplex LC interface
  • Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
  • Robust bayonet locking for easy, fast, and secure mating
  • Multimode and single mode both available
  • Water proof, dust proof and corrosion resistant
  • Expansion to RJ45 and Power possible
  • Plug has tolerance free design, fully free floating on Z-axis
  • No cable buckling during or after installation
  • Cost effective metal die cast bulkhead
  • Field installable version available

FTTA Waterproof IP67 Fiber Optic Patch Cord 4.8mm G657A2 RRH 2FTTA Waterproof IP67 Fiber Optic Patch Cord 4.8mm G657A2 RRH 3FTTA Waterproof IP67 Fiber Optic Patch Cord 4.8mm G657A2 RRH 4

APPLICATIONS

  • WIMAX and LTE Base Stations
  • Remote Radio Heads (RRH)
  • Industrial outdoor applications
  • Robotics
  • Aerospace & Defense



Mechanical specifications

Parameter Standard Parameter Standard
150N pull force IEC61300-2-4 Temperature 40°C – +85°C
Vibration GR3115 (3.26.3) Cycles 50 Mating Cycles
Salt Mist IEC 61300-2-26 Protection Class/Rating IP67
Vibration IEC 61300-2-1 Mechanical Retention 150 N cable retention
Shock IEC 61300-2-9 Interface LC interface
Impact IEC 61300-2-12 Adapter Footprint 36 mm x 36 mm
Temperature / Humidity IEC 61300-2-22 Duplex LC Interconnect MM or SM
Locking Style Bayonet style Tools No tools required



Cable parameter

FTTA Waterproof IP67 Fiber Optic Patch Cord 4.8mm G657A2 RRH 5



Fiber count 2
Tight buffer fiber Dimension 800±50μm
Material LSZH
Color Blue, Orange
Outer jacket Dimension 4.8±0.2mm
Material LSZH
Color Black

FTTA Waterproof IP67 Fiber Optic Patch Cord 4.8mm G657A2 RRH 6

Order information - YDPC-A-B-FCFT-CL

YDPC - Connector A - Connector B - Fiber count =FC Fiber type =FT - Cable length =CL

YD=yingda

PC=patch cord



F(LCU)=FullAXS(LC/UPC)

F(LCA)=FullAXS(LC/APC)

F(MPO)=FullAXS(MPO)

LCU=LC/UPC

LCA=LC/APC

MPO=MPO/MTP

...

Xxx=NULL



F(LCU)=FullAXS(LC/UPC)

F(LCA)=FullAXS(LC/APC)

F(MPO)=FullAXS(MPO)

LCU=LC/UPC

LCA=LC/APC

MPO=MPO/MTP

...

Xxx=NULL



01=1core

02=2core

08=8core

12=12core

...





2D=G652D

A1=G657A1

A2=G657A2

M1=OM1

M2=OM2

M3=OM3

M4=OM4

M5=OM5

...



001=1meter

002=2meter

...

010=10meter

...

120=120meter

...



For example:
FullAXS -LC/UPC duplex cable assembly 10meter G657A1 LSZH black
Part no.: YDPC-F(LCU)-LCU-02A1-010
