FTB Fiber Optic Termination Box 1 To 8 PLC Splitter Fanout 900um With Breakout Kits

Brand Name: YINGDA
Model Number: FTB008A
MOQ: 1 piece
Price: 0.18USD-4.29USD
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
ABS+PC
Color:
White
Cable Port:
2 In 8 Out
Fusion Capacity:
8 Cores
Splitter:
1X8 Fanout Plc Splitter
Connector:
SC/APC
Input Diameter:
12 Mm
Output Diameter:
2*3.0 Mm
Features:
Laser Mark, Or OEM , 2 Removable Cover
Application:
Wall Mounted Indoor
Packaging Details:
1 pc / box, 60 pcs / carton box
Highlight:

fiber optic distribution box

,

fiber optic terminal box

Product Description

1 to 8 PLC Splitter Fanout 900um Fiber Optic Terminal FTB Box with Breakout Kits



This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.



The cover of the box is fixed with screws into the bottom, and the front lid of the outputs to adapter is hinged with the upper parts, and it is fixed with screws to the bottom. Opening of the lid will not affect the movement of the other parts of the box, this unique design makes the box more safe, nice and humanity when installation on site and afterwards possible maintenance.



There are 1 splice tray for max. 8 fibers fusion splice, it has enough space for 8 fiber buffer cable or single fiber 1.5meter storage, also it can split 1x2,1x4,1x8,2x2,2x4 mini splitter, mixing fusion, splittering, distribution and storage in a box. The fiber bending radius minimum is 20mm.



Caja de 8 puertos Specification :

Model FTB008A
Dimension (H*W*D)

235*125*45 mm

Cable ports 2in, 8out
Cable dimeter In:12mm, out: 2*3.0mm
Installation Wall mounted
Max. Fusion Capacity

24 core (single fiber)

Splice tray 1pc
Material ABS+PC
Color Gray
Max. Splitter 1x2,1x4,1x8, 2x2, 2x4 mini splitter
Max. Adapter

8pcs SC simple





Features:
1. Integrated with splice cassette and cable management system
2. Manage fibers in a reasonable fiber radius condition
3. Fiber bend radius control more than 40mm
4. 1*8 micro type Splitter can be installed
5. All splicing trays can be extended up to a self-locking position of 120 degrees
6. The adapter can be rotated at an angle
7. 8ports cable entrance for distribution cables for option, 2*3mm FTTH Drop Cable, 3mm armored cable

Product Details:

FTB Fiber Optic Termination Box 1 To 8 PLC Splitter Fanout 900um With Breakout Kits 0

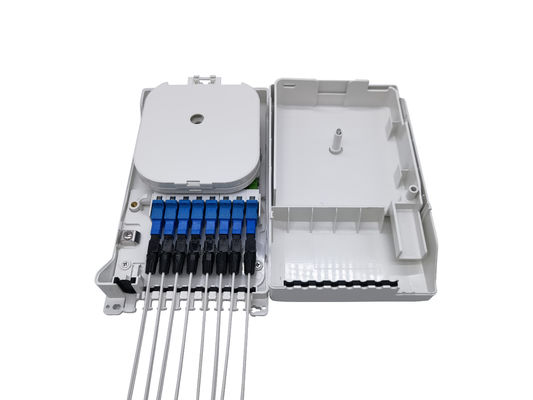

1. Made of ABS+PC material, and there are 8pcs out cable ports with 8pcs drop cable 2*3mm.

2. large area for slik print your Logo, better develop for your brand.



FTB Fiber Optic Termination Box 1 To 8 PLC Splitter Fanout 900um With Breakout Kits 1

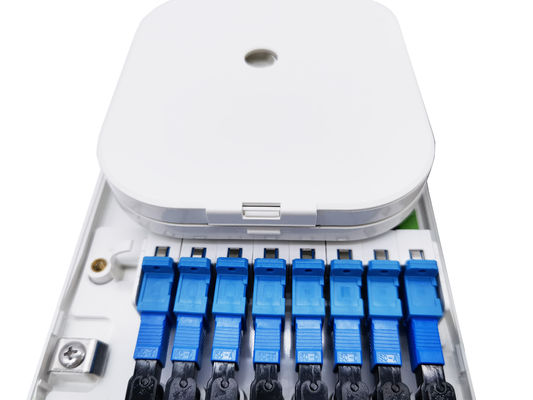

This 8ports FTB008A fiber access terminal is 4layer design, fixed by a screw from the cover middle.

close the box with 3 screw rods, and the front adapter lid can be open and insert the indoor cable with pre-terminated connectors into the adapters to finish the installation.





FTB Fiber Optic Termination Box 1 To 8 PLC Splitter Fanout 900um With Breakout Kits 2

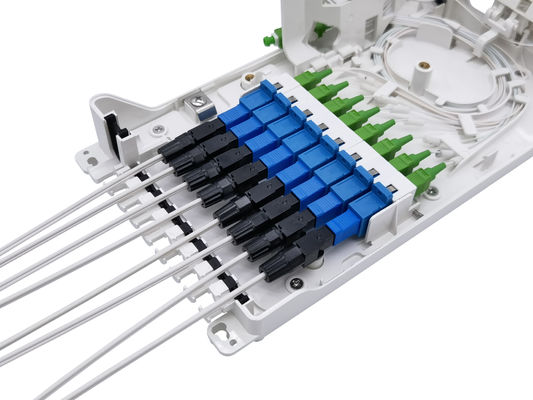

There are 2pcs splice trays, max capacity is 24cores. Support load with 2pcs* 1*8 PLC splitter.

splitter is fix on down the splice tray with sticker, output splitter connectors insert into the adapter, input of splitter no connector was brought in the splice tray and fusion with the feeder cable.



Standard package:

The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.



Accessories like below:

FTB Fiber Optic Termination Box 1 To 8 PLC Splitter Fanout 900um With Breakout Kits 3

  • Cable nylon ties
  • Heat shrinkable tube
  • Wall mount expansion screws
  • Sealing of inputs or outputs
  • Adapters or plc splitter optional pre-terminated at factory
  • English or Spanish instruction manual
