Waterproof 4 Ports 2 Door Fiber Optic Patch Panel ODF Wall Mounted With SC/APC adapters

Waterproof 4 Ports 2 Door Fiber Optic Patch Panel ODF Wall Mounted With SC/APC adapters

  • High Light

    rack mount odf

    ,

    optical distribution frame

  • Material
    Cold Rolled Steel
  • Capacity
    24 Cores
  • Adapter
    SC/ST LC/FC All Ok
  • Dimension
    350*300*80mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    GP(05)D
  • Minimum Order Quantity
    100pcs
  • Price
    usd45~usd60
  • Packaging Details
    1pc / box, 4 pcs / carton box
  • Delivery Time
    7-10 days
  • Payment Terms
    Western Union, MoneyGram, T/T
  • Supply Ability
    5000 pcs per month

Waterproof 4 Ports 2 Door Fiber Optic Patch Panel ODF Wall Mounted With SC/APC adapters

Waterproof 4 Ports 2 Door Fiber Optic Termination Box ODF Wall Mounted With SC/APC adapters

Model: GP(05)D



Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room. The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.

Provide fusion and storage appliance for optical cables.



Specification



Model GP(05)D-SC24
Dimension/mm 350*300*80
Max. Capacity 24cores / 1tray
Max. Adapter 24pcs SC adapter
Material

Body: cold rolled steel sheet, electrostatic spraying

Splice tray: ABS

Installation method Outdoor wall mount
Package information
Quantity / Carton box 4pcs
Carton size/mm 405*355*605
Gross weight /Carton box 19kgs



Features

  • 2door with key to make sure safe and convenient oepration
  • distribution and fiber storage is seperate room, better protection
  • adapter panel is metal sheet, and sperated with clip, can take off to install adapter and pigtail, easy to oeprate
  • adapter panel can be changeable into SC FC LC ST adapter on demand
  • Reliable protection appliance of fixing, stripping and earthing for optical cables.
  • Whole range protected design for fiber lay to ensure the bending radius ≥40mm
  • Provide various accessories to avoid any unexpected damage to the fiber
  • all material is 1.2mm metal sheet, high quality.
  • all metal parts is stainelss steel material, long life span
  • cable ports with rubber seal and whole box is waterproof, suitable for outdoor application
  • wall mount with expansion screws

More pictures

Waterproof 4 Ports 2 Door Fiber Optic Patch Panel ODF Wall Mounted With SC/APC adapters 0Waterproof 4 Ports 2 Door Fiber Optic Patch Panel ODF Wall Mounted With SC/APC adapters 1

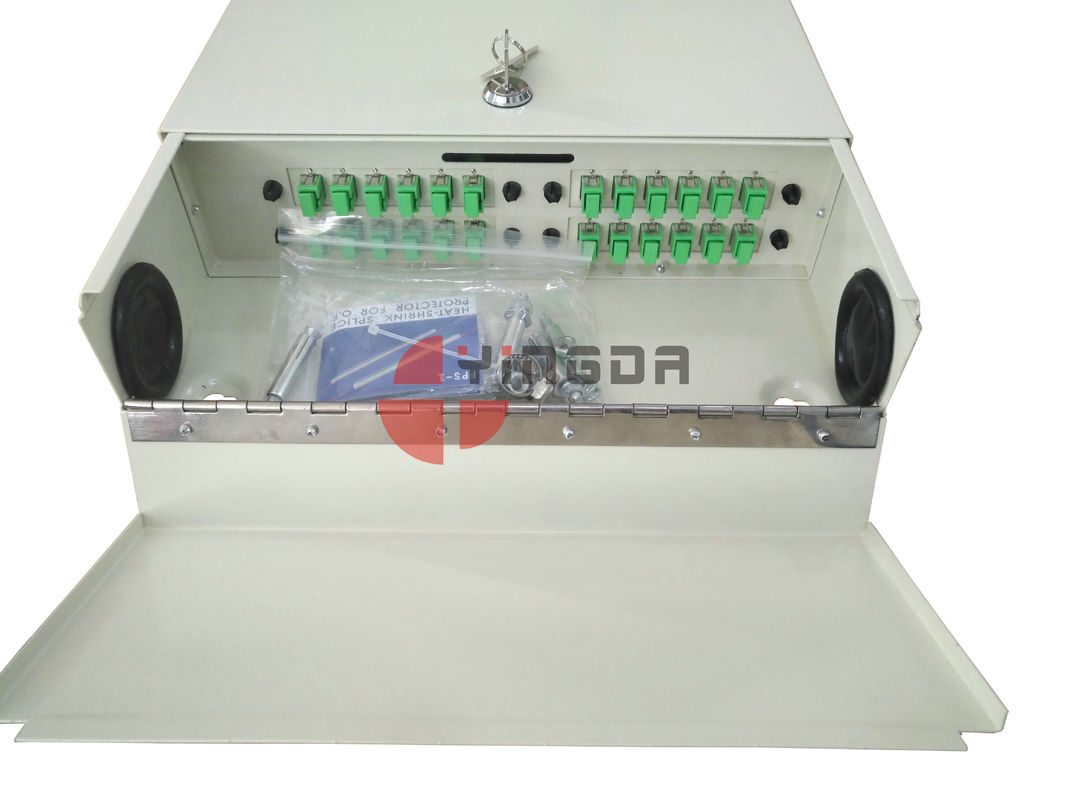

4pcs adapter panel, repeatable and changeable, it can use SC,FC, LC, ST or other types



Waterproof 4 Ports 2 Door Fiber Optic Patch Panel ODF Wall Mounted With SC/APC adapters 2Waterproof 4 Ports 2 Door Fiber Optic Patch Panel ODF Wall Mounted With SC/APC adapters 3

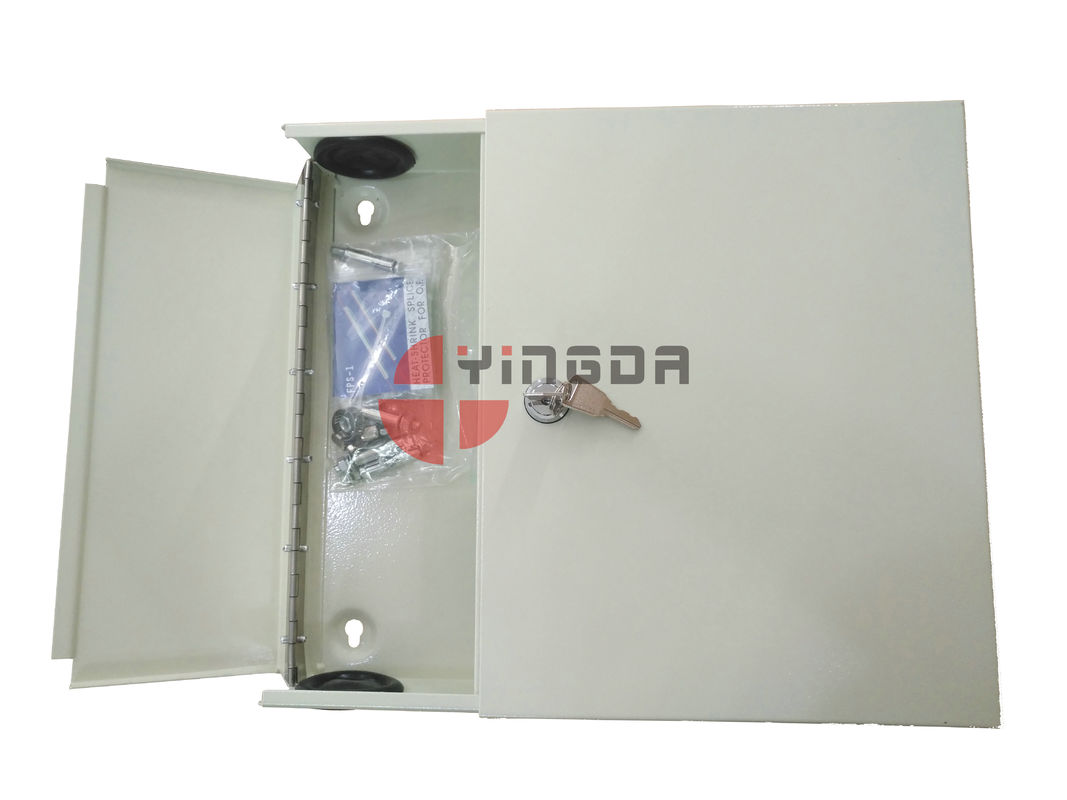

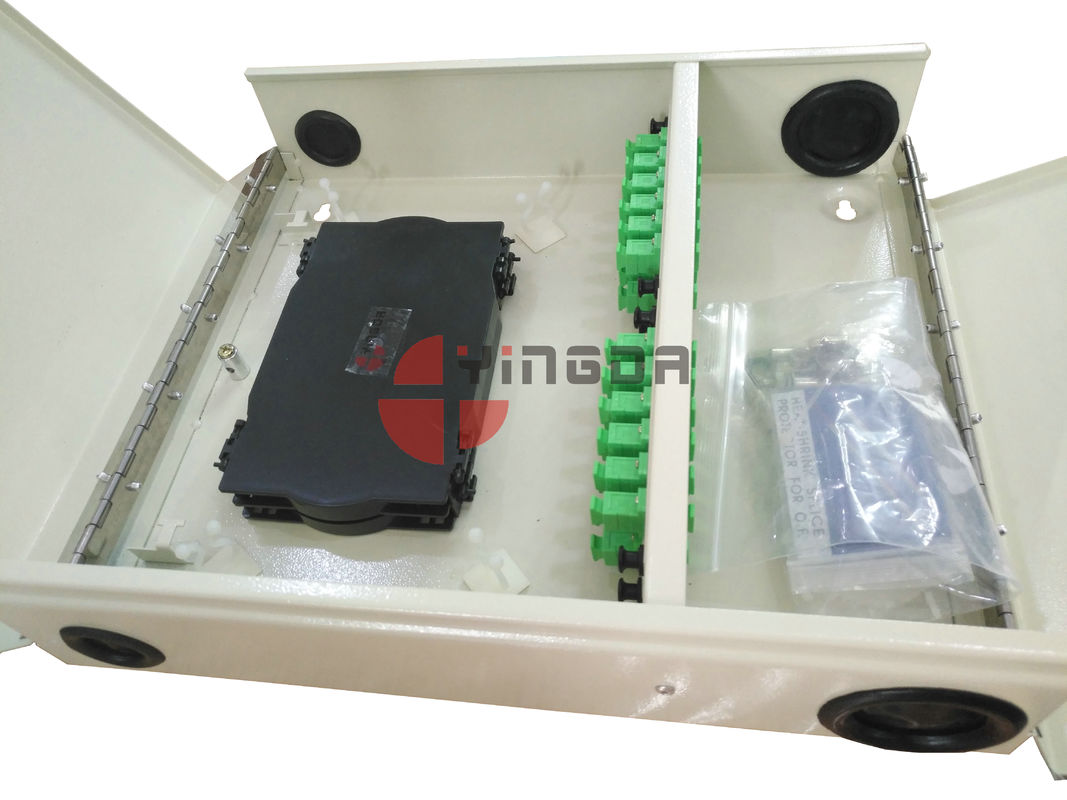

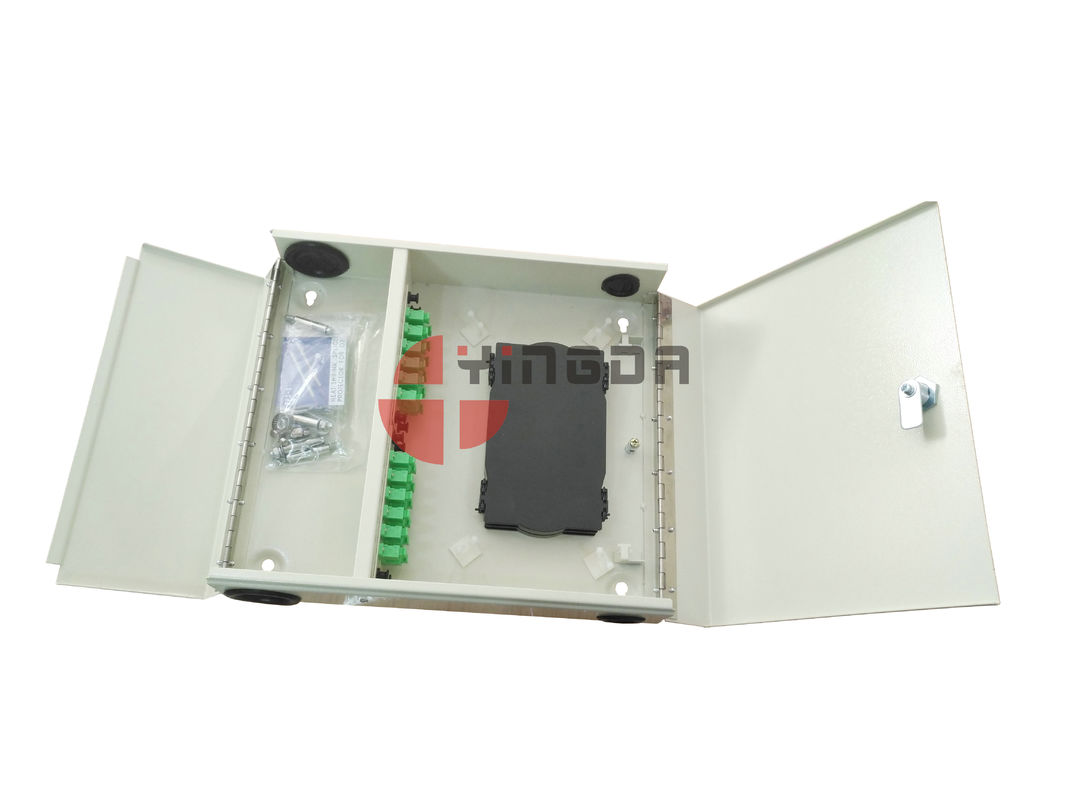

cable port with rubber seal, stainelss steel hinge                     24fiber tray- black with cover



Waterproof 4 Ports 2 Door Fiber Optic Patch Panel ODF Wall Mounted With SC/APC adapters 4Waterproof 4 Ports 2 Door Fiber Optic Patch Panel ODF Wall Mounted With SC/APC adapters 5



    accessory bag with sleeves                                  master box for delivery, with customer label
