IP65 Metal Optical Fiber Termination Box Cold Rolled Steel for FTTH GPON
  • name
  • name
  • name
  • name

IP65 Metal Optical Fiber Termination Box Cold Rolled Steel for FTTH GPON

MOQ: 100pcs
Price: usd45~usd60
Standard Packaging: 1pc / box, 4 pcs / carton box
Delivery Period: 7-10 days
Payment Method: Western Union, MoneyGram, T/T
Supply Capacity: 5000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
GP(05)D
Material:
Cold Rolled Steel
Capacity:
24 Cores
Adapter:
SC/ST LC/FC All Ok
Dimension:
350*300*80mm
Highlight:

rack mount odf

,

sliding patch panel

Product Description

IP65 Metal Optical Fiber Termination Box Cold Rolled Steel for FTTH GPON





Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room. The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.

Provide fusion and storage appliance for optical cables.



Specification



Model GP(05)D-SC24
Dimension/mm 350*300*80
Max. Capacity 24cores / 1tray
Max. Adapter 24pcs SC adapter
Material

Body: cold rolled steel sheet, electrostatic spraying

Splice tray: ABS
Installation method Outdoor wall mount
Package information
Quantity / Carton box 4pcs
Carton size/mm 405*355*605
Gross weight /Carton box 19kgs

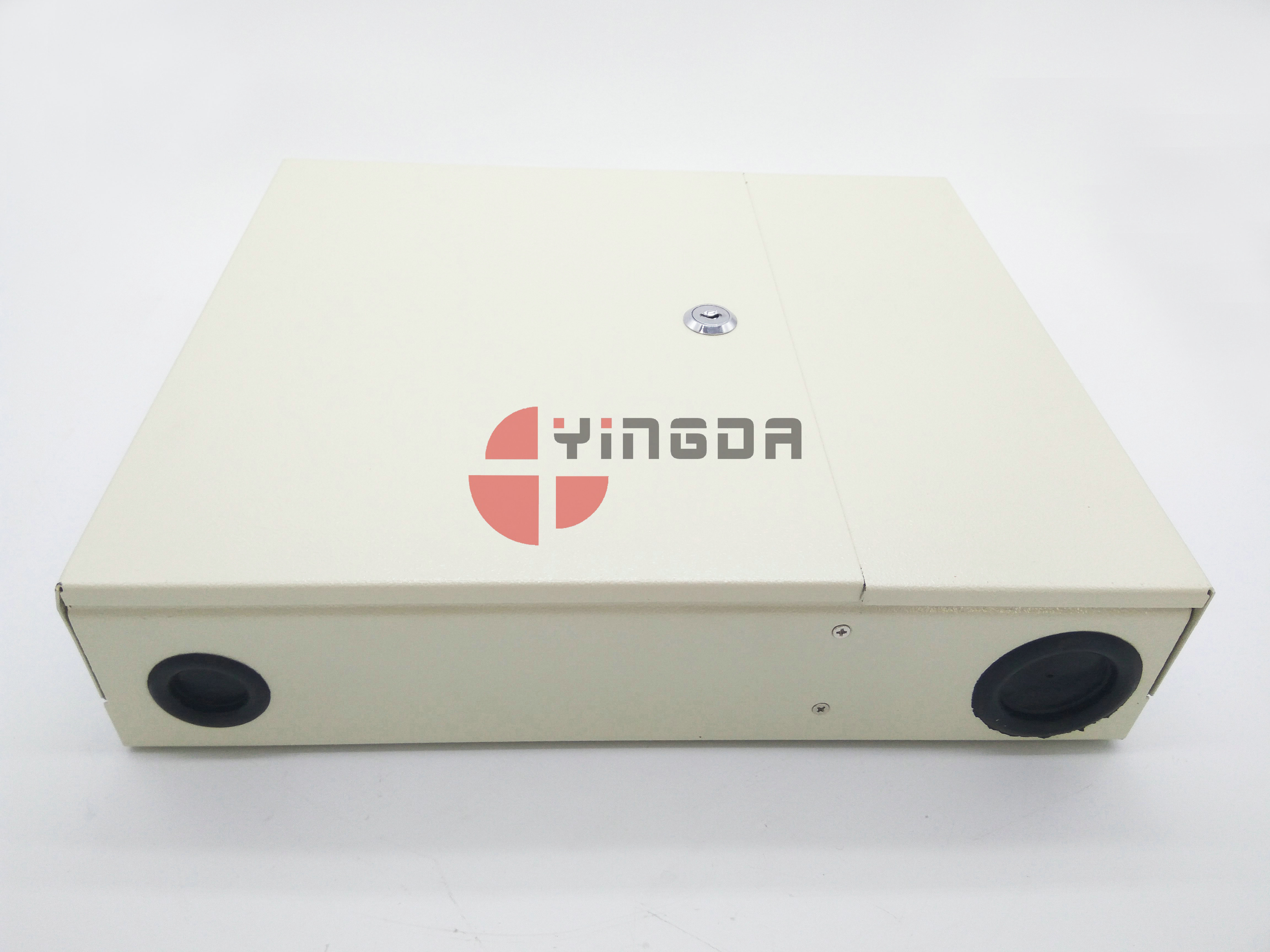

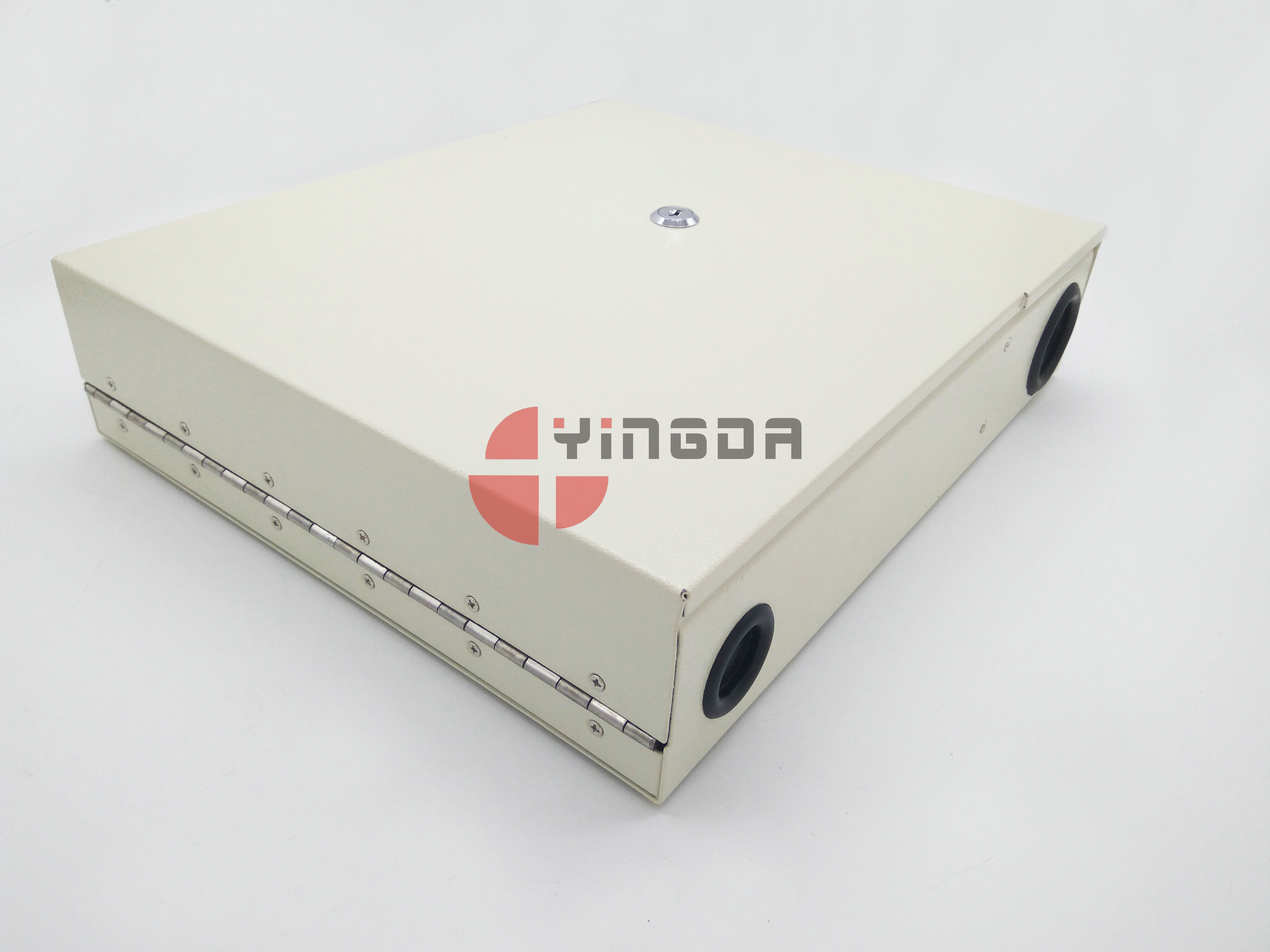

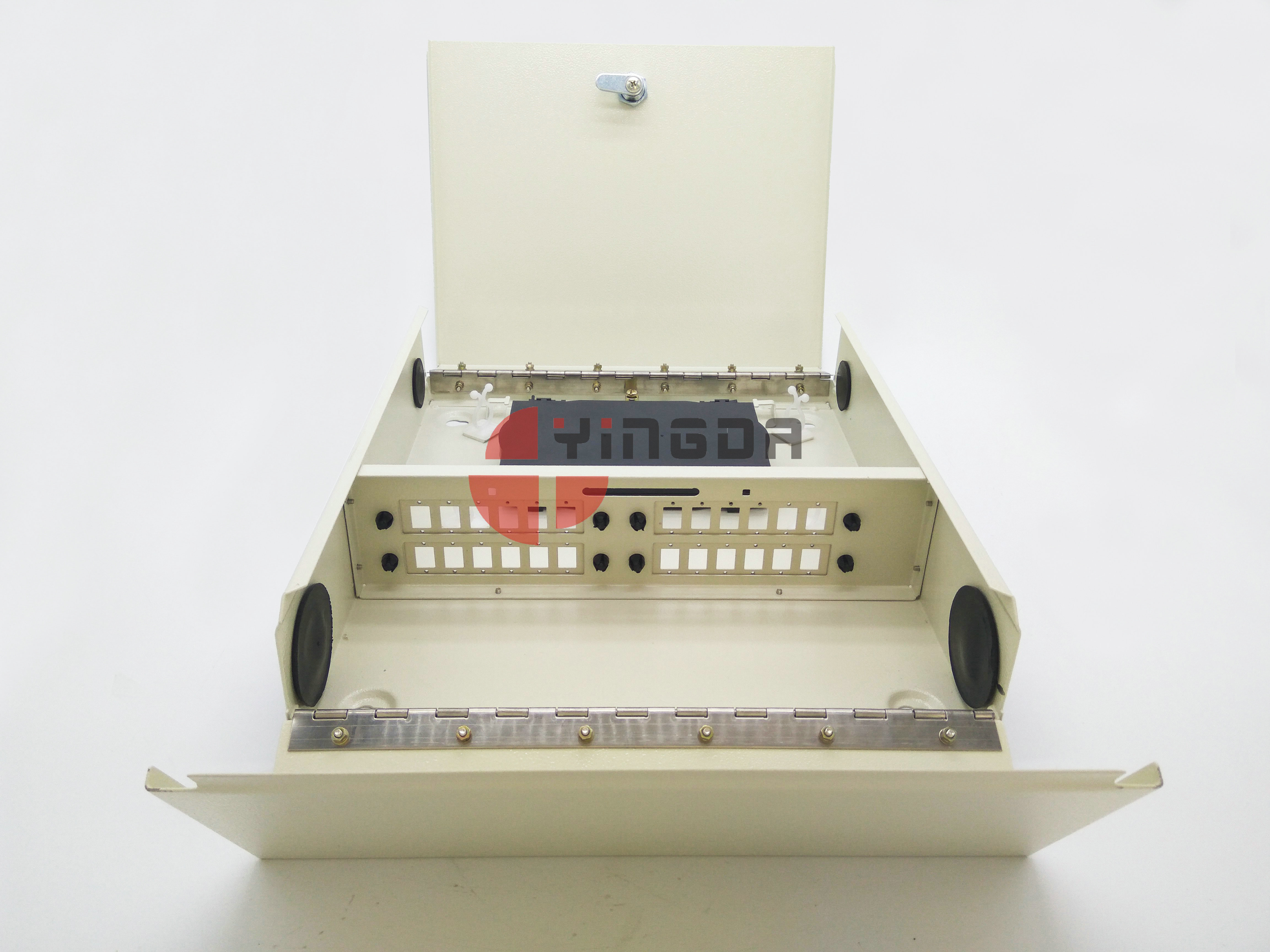

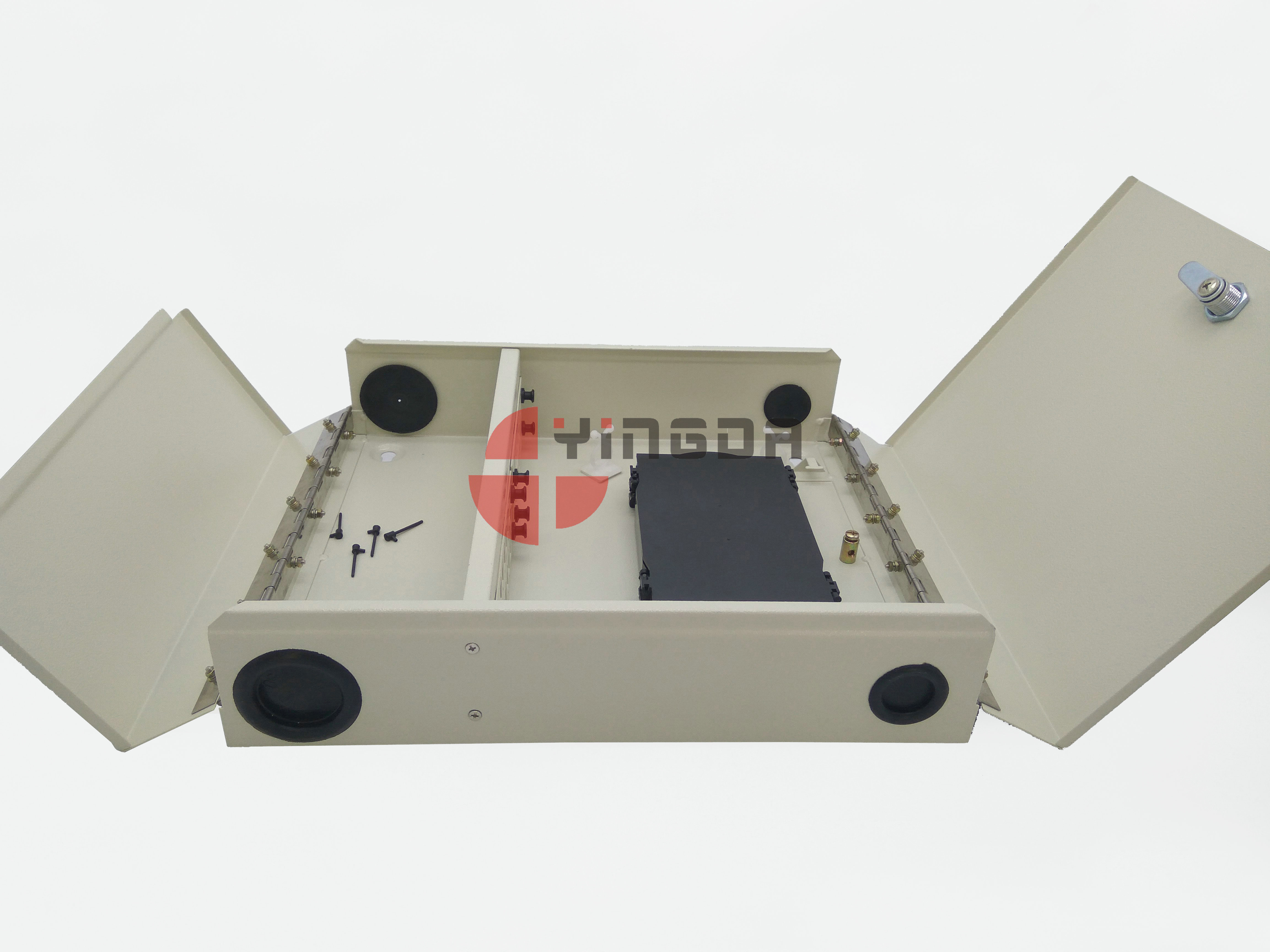

IP65 Metal Optical Fiber Termination Box Cold Rolled Steel for FTTH GPON 0IP65 Metal Optical Fiber Termination Box Cold Rolled Steel for FTTH GPON 1IP65 Metal Optical Fiber Termination Box Cold Rolled Steel for FTTH GPON 2IP65 Metal Optical Fiber Termination Box Cold Rolled Steel for FTTH GPON 3IP65 Metal Optical Fiber Termination Box Cold Rolled Steel for FTTH GPON 4IP65 Metal Optical Fiber Termination Box Cold Rolled Steel for FTTH GPON 5

Features

  • 2door with key to make sure safe and convenient oepration
  • distribution and fiber storage is seperate room, better protection
  • adapter panel is metal sheet, and sperated with clip, can take off to install adapter and pigtail, easy to oeprate
  • adapter panel can be changeable into SC FC LC ST adapter on demand
  • Reliable protection appliance of fixing, stripping and earthing for optical cables.
  • Whole range protected design for fiber lay to ensure the bending radius ≥40mm
  • Provide various accessories to avoid any unexpected damage to the fiber
  • all material is 1.2mm metal sheet, high quality.
  • all metal parts is stainelss steel material, long life span
  • cable ports with rubber seal and whole box is waterproof, suitable for outdoor application
  • wall mount with expansion screws
  •
