NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors

NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors

  • High Light

    fiber optic junction box

    ,

    fiber optic distribution box

  • Material
    ABS+PC
  • Dimension
    170*130*40mm
  • Box Type
    Ftth Fiber Optic Box
  • Splitter Type
    Mini Splitter 1:8
  • Adapter Type
    Sc Adapter Coupler Without Flange
  • Function
    Mix Fusion Distribution Splitting In A Box
  • Features
    Seperate Cover, Ftth Splice Box, Use 1x8 Spltiter
  • Cable Enter
    2 Round Prots, 10mm
  • Cable Exit
    2x3mm 2x5mm Drop Cable With Fast Connetor
  • Installation
    Indoor Wall Mount Box
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB008
  • Minimum Order Quantity
    500pcs
  • Price
    negotiable
  • Packaging Details
    1pc/box, 60pcs/carton box
  • Delivery Time
    1week
  • Supply Ability
    1000k per month

NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors

8 Ports Fiber Optic Termination Box, NAP Indoor with 1x8 Splitter Distribution Box White FTTH SC/UPC Connectors





This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.



The entry 2ports can use multi-fiber cable maximum diameter 12mm. The output ports 8pcs FTTH 2x3mm drop cable or 3mm soft cable. Meanwhile, unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.



Fiber Optic Distribution Box Features

  1. Whole box is made of engineering plastic ABS+PC brand new material, white color.
  2. The lid of the box have round edges, and closed by allen screws, anti-theft, more safer.
  3. Two covers, one is for front adapter operation, the other is for cable fusion and feeder cable in and out, independent space design, more secure and reasonable.
  4. Opening of the lid will not affect the movement of the other parts of the box. Both cover is removable.
  5. There is 1 splice tray for extra fiber, and max. Fusion 4cores single fiber.
  6. All the metal parts is stainless steel AISI-303 and resistant to the corrosion in normal temperature.
  7. Each adapter holder is individual, not a whole set of adapter panel. Each one can turn 360°degree, it is much easier to use, change adapters, or future maintainence.
  8. All the materials used is non toxic and dermatologically safe.
  9. The materials high quality ensure a minimum period of 20 years.
  10. In front there is cable management rods for better operation.



NAP 8 Cores FTTH Box Specification



Model FTB008
Dimension 170*130*40mm (H*W*D)
Cable ports 2 inlet, 8 outlet
Cable dimeter In:12mm, out: 3mm or 2x3mm drop cable
Installation Wall mounted
Max. Fusion 4 cores (single fiber)
Splice tray 1pc
PLC Splitter 1x2,1x4,1x8 mini splitter
Max. Adapter 8pcs SC simplex without flange
Material ABS+PC
Color White



8 Cores Indoor  Wall Mount Termination Box Product Details



NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors 0NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors 1

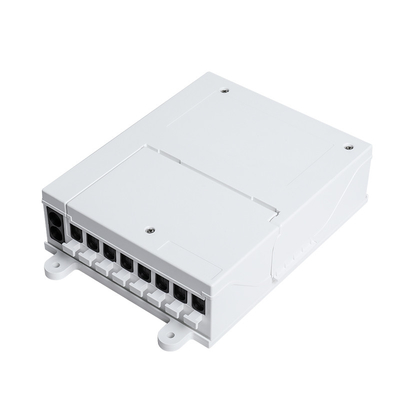

     Front overview, white, ABS+PC material,                  Front cover is fix by screw with bottom

        Left: feeder cable entry and exit                                8pcs SC adapter and cable outports

      Right: drop cable or soft cable exit



NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors 2NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors 3

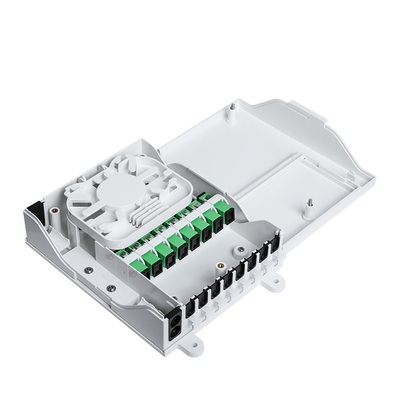

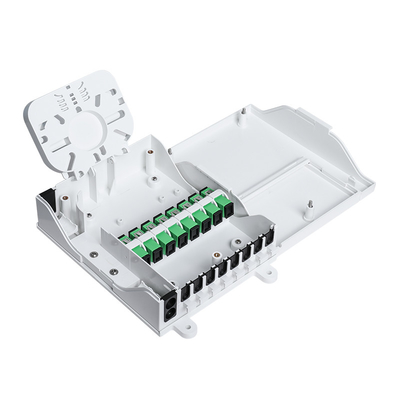

                Internal overview                                                         Internal overview

 splice tray max. fusion 4 single fibers                       adapter holder is 360degree turn, better use

   adapter is shutter type, normal is ok                           label marks for user to identify fiber route



NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors 4NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors 5

  There are stainnless steel screws and rods           Cover and bottom is seperate,not with hinge



NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors 6NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors 7

   1pcs Splicet tray for fusion and fiber storage      Box bottom is wall mounted with screws on wall

    clip connection with the bottom of the box               strengthen lines for longer life time

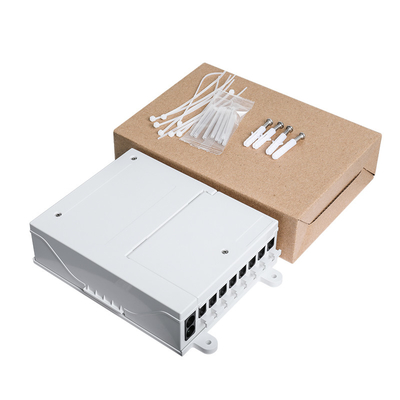

Fiber optic splice enclosure Standard package



The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.



Accessories like below:

  • Cable nylon ties
  • Heat shrinkable tube
  • Wall mount expansion screws
  • Sealing of inputs or outputs
  • User manual
  • Adapters or plc splitter



UNCUT PORT SERIES:

NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors 8    NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors 9

                MODEL: FTB008                                         MODEL: FTB008A

NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors 10   NAP Indoor Fiber Optic Termination Box with 1x8 Splitter White FTTH SC/UPC Connectors 11

                 MODEL: FTB008B                                        MDOEL: FTB016A
