IP54 8 Port FTTH Fiber Optical Termination Box Mid Span Anti UV Shocking Resistance Gray PC Alloy

IP54 8 Port FTTH Fiber Optical Termination Box Mid Span Anti UV Shocking Resistance Gray PC Alloy

  • High Light

    FTTH Fiber Optic Termination Box

    ,

    IP54 Fiber Optic Termination Box

    ,

    IP54 fiber optic junction box

  • Material
    PC+ABS
  • Max Splice
    20 FO
  • Cable In/out
    4 INLETS 8 OUTLETS
  • No. Of Fiber Adapter
    8 Pcs Of SC
  • No. Of PLC Splitter
    1pc 1x8 Mini Splitter
  • Weight
    0.45 KG
  • Color
    Light Grey
  • Dimension(mm) W*D*H
    210*125*47 Mm
  • Cable Diameter
    12.5mm Feeder Cable
  • Cable Exit
    Ftth Flat Fiure-8 Drop Cable 2x3mm Or 2*5mm 2*1.6mm
  • Feature
    Straight Through Ports, No Need Cut Cable
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO, CE, ROHS
  • Model Number
    FTB008B
  • Minimum Order Quantity
    500pc
  • Price
    Negotiable
  • Payment Terms
    T/T, L/C, Western Union

IP54 8 Port FTTH Fiber Optical Termination Box Mid Span Anti UV Shocking Resistance Gray PC Alloy

IP54 8 Port FTTH Fiber Optical Termination Box Anti UV Shocking Resistance Gray PC Alloy



This product integrates the function of splicing and splitting, suitable for the straight through or branch connection, and terminal connection in optical system, protection connection for cables and distribution pigtails. The cables can be spliced with indoor cables by splitting to meet the requirement of traditional network.

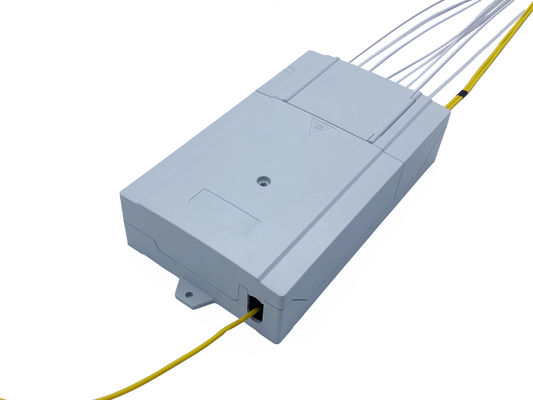

IP54 8 Port FTTH Fiber Optical Termination Box Mid Span Anti UV Shocking Resistance Gray PC Alloy 0

Specification

Model FAT-8T-B
Dimension(mm) W*D*H 210*125*47 Material ABS+PC
Max splice 20 FO Cable in/out

4 INLETS

8 OUTLETS

No. Of fiber adapter 8 pcs of SC No. Of PLC splitter 2pcs of 1x8 PLC
Color Light grey Weight 0.45KG

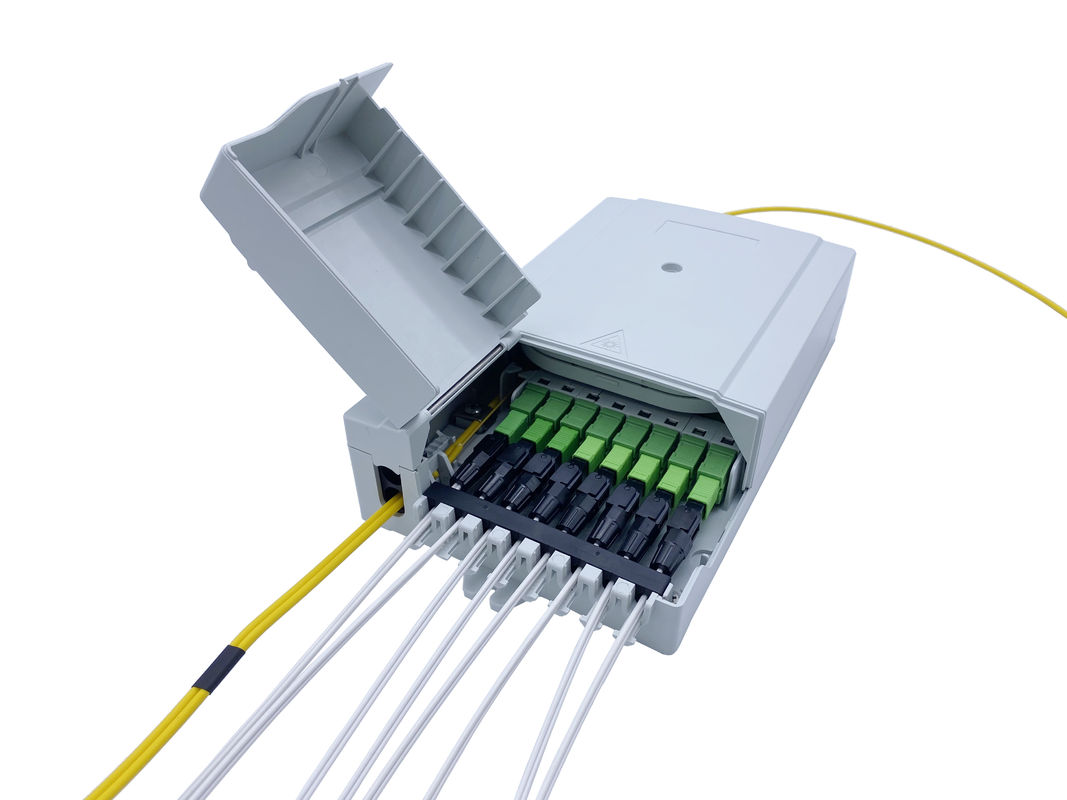

IP54 8 Port FTTH Fiber Optical Termination Box Mid Span Anti UV Shocking Resistance Gray PC Alloy 1IP54 8 Port FTTH Fiber Optical Termination Box Mid Span Anti UV Shocking Resistance Gray PC Alloy 2IP54 8 Port FTTH Fiber Optical Termination Box Mid Span Anti UV Shocking Resistance Gray PC Alloy 3



Features:

  • High impact plastic PC+ABS, standard user interface SC
  • Suitable for 1x8 PLC splitter
  • Anti-UV, shocking resistance d.
  • Wall mount application with scerws
  • Unique middle panel≥180°, clear area for splicing and distribution, less cross- connection for cables
  • IP-54 protection level for indoor use.

IP54 8 Port FTTH Fiber Optical Termination Box Mid Span Anti UV Shocking Resistance Gray PC Alloy 4

IP54 8 Port FTTH Fiber Optical Termination Box Mid Span Anti UV Shocking Resistance Gray PC Alloy 5

Technical data:

  • Fiber bend radius:≥40mm
  • Splice tray excess loss:≤0.01dB
  • Temperature Range : - 40℃ + 60℃
  • Anti lateral pressure : ≥2000N / 10 cm
  • Shock resistance:≥20N.m




  IP54 8 Port FTTH Fiber Optical Termination Box Mid Span Anti UV Shocking Resistance Gray PC Alloy 6

Key word: 8 port terminal box, fiber access point, fiber terminal box, termination box, ftth box
