Dustproof Fiber Optic Patch Panel ODF SC Optical Distribution Frame Metal Slide Out Type
  • name
  • name
  • name
  • name

Dustproof Fiber Optic Patch Panel ODF SC Optical Distribution Frame Metal Slide Out Type

MOQ: 100PCS
Price: negotiable
Standard Packaging: 1pc per box, 3pcs per carton box
Delivery Period: 1week
Payment Method: T/T, Western Union,paypal
Supply Capacity: 10000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO
Model Number
GPSR-4U-96SC
Material:
Cold Rolled Steel
Cable Entry:
4ports At Back
Cable Ouputs:
96port SC Adapter Port
Color:
White
Size:
430*300*4U, 480mm Width With Ears At Both Side
Type:
Slide Out / Drawer Type
Rack Size:
19inch
Adapter:
SC, LC, FC,ST,E2000 All Ok
OEM:
Ok
Sample:
Ok
Highlight:

rack mount odf

,

sliding patch panel

Product Description

4U 19Inch 96 Ports ODF SC Optical Distribution Frame Metal Slide Out Type Dustproof Completed





Sliding Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in

optical fiber transmission communication network, which is suitable for indoor optical cable

splice directly and branch connection, and protective the fiber.



Features

Applicable in the termination and 19'' standard structure,

Rack mount in optical distribution frame ODF

Suitable for FC,SC,ST,LC,E2000 adapters

1.2mm Cold rolled steel sheet, with electrostatic spraying

Box size: 430*300*1U available, for cost save.

Metal sliding tray of the splice tray and bottom, easier and faster operation without open the cover

Clip cover design, dustproof and whole box closed not in operation

4cable entry ports at back.



Specification

Model Dimension(W*D*H)mm Max capacity(cores)
GPSR-1U-SC24 430*300*1U 24
GPSR-1U-FC24 430*300*1U 24
GPSR-2U-SC48 430*300*1U 48
GPSR-2U-FC48 430*300*2U 48
GPSR-4U-SC96 430*300*4U 96



Product details:



Dustproof Fiber Optic Patch Panel ODF SC Optical Distribution Frame Metal Slide Out Type 0Dustproof Fiber Optic Patch Panel ODF SC Optical Distribution Frame Metal Slide Out Type 1

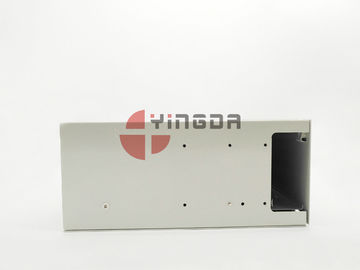

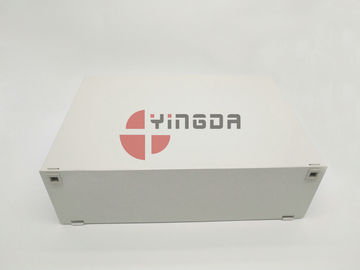

  • 4round ports at back for feeder cable entry with rubber seal.
  • metal body, white color, 1.2mm thickness steel.
  • ABS material for 24fiber tray, nice design, humanity cable management system internal

Dustproof Fiber Optic Patch Panel ODF SC Optical Distribution Frame Metal Slide Out Type 2Dustproof Fiber Optic Patch Panel ODF SC Optical Distribution Frame Metal Slide Out Type 3

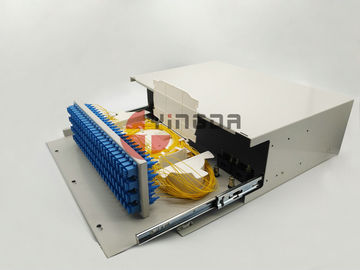

  • stainless steel metal sliding tray, easy to slide out of the inner part for distribute,fusion and storage,long term life span

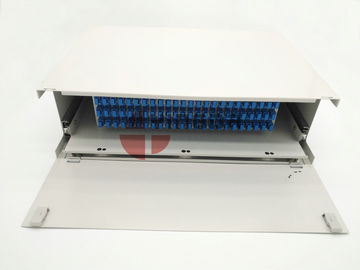

  • 96port SC front adapter panel is fixed on the bottom, screws is provided, and there is splice tray each maximum 24fibers.
