19" 4U 96 Port SC Slide Out Drawer Fiber Optic Patch Panel Optical Distribution Box Steel Loaded

19" 4U 96 Port SC Slide Out Drawer Fiber Optic Patch Panel Optical Distribution Box Steel Loaded

  • High Light

    optical distribution frame

    ,

    sliding patch panel

  • Material
    Cold Rolled Steel
  • Cable Entry
    4ports At Back
  • Cable Ouputs
    96port SC Adapter Port
  • Color
    White
  • Size
    430*300*4U, 480mm Width With Ears At Both Side
  • Type
    Slide Out / Drawer Type
  • Rack Size
    19inch
  • Adapter
    SC, LC, FC,ST,E2000 All Ok
  • OEM
    Ok
  • Sample
    Ok
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    GPSR-4U-96SC
  • Minimum Order Quantity
    100PCS
  • Price
    negotiable
  • Packaging Details
    1pc per box, 3pcs per carton box
  • Delivery Time
    1week
  • Payment Terms
    T/T, Western Union,paypal
  • Supply Ability
    10000pcs per month

19" 4U 96 Port SC Slide Out Drawer Fiber Optic Patch Panel Optical Distribution Box Steel Loaded

19" 4U 96 Port SC SlideOut Drawer Fiber Optic Patch Pane, Optical Distribution Box Steel Loaded





Sliding Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in

optical fiber transmission communication network, which is suitable for indoor optical cable

splice directly and branch connection, and protective the fiber.



Features

Applicable in the termination and 19'' standard structure,

Rack mount in optical distribution frame ODF

Suitable for FC,SC,ST,LC,E2000 adapters

1.2mm Cold rolled steel sheet, with electrostatic spraying

Box size: 430*300*1U available, for cost save.

Metal sliding tray of the splice tray and bottom, easier and faster operation without open the cover

Clip cover design, dustproof and whole box closed not in operation

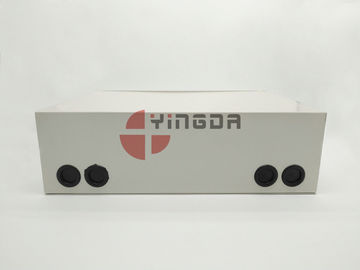

4cable entry ports at back.



Specification

Model Dimension(W*D*H)mm Max capacity(cores)
GPSR-1U-SC24 430*300*1U 24
GPSR-1U-FC24 430*300*1U 24
GPSR-2U-SC48 430*300*1U 48
GPSR-2U-FC48 430*300*2U 48
GPSR-4U-SC96 430*300*4U 96



Product details:

19" 4U 96 Port SC Slide Out Drawer Fiber Optic Patch Panel Optical Distribution Box Steel Loaded 019" 4U 96 Port SC Slide Out Drawer Fiber Optic Patch Panel Optical Distribution Box Steel Loaded 1

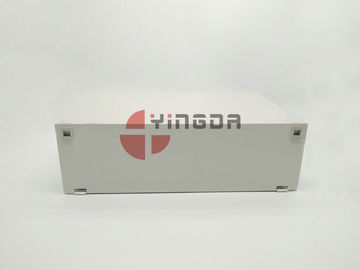

  • body is made of cold rolled steel material, white color, total closed, humanity deign
  • front door is locked by hinge,clip design, can be take off, which is dustproof and user friendly

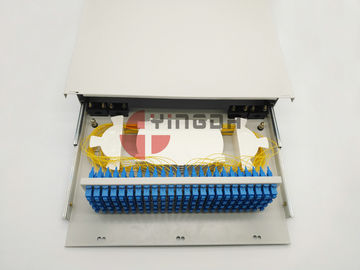

  • 96port SC adapter panel in front, and there is engough place for calbe management in front panel, 4tray of 24cores is made of brand new ABS materials, not second hand.

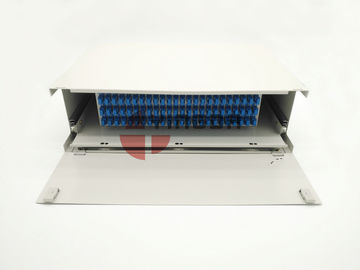

  • whole inner part can ben slide out for cable route,distribute and fusion splice,easy to operate and maintainance.



19" 4U 96 Port SC Slide Out Drawer Fiber Optic Patch Panel Optical Distribution Box Steel Loaded 219" 4U 96 Port SC Slide Out Drawer Fiber Optic Patch Panel Optical Distribution Box Steel Loaded 3

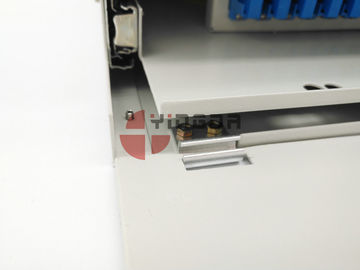

  • stainless steel metal slide tray, easy to slide out of the inner part for distribute,fusion and storage,long term life span
  • 96port SC front adapter panel is fixed on the bottom, screws is provided, and there is splice tray each maximum 24fibers.

19" 4U 96 Port SC Slide Out Drawer Fiber Optic Patch Panel Optical Distribution Box Steel Loaded 419" 4U 96 Port SC Slide Out Drawer Fiber Optic Patch Panel Optical Distribution Box Steel Loaded 5

there is cable routing rods at the back for better management and protection. fusion splice tray is big enough for fusion, brand new materials make sure the longer life.
