Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter

Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter

  • High Light

    fiber optic closure

    ,

    splitter distribution box

  • Material
    PC+ABS
  • Capacity
    12 Fibers
  • Adapter Qty
    12pcs SC Adaptor In 3way
  • Split Ratio
    1x2,1x4,1x8 Micro Splitter Optional
  • Color
    White
  • Size
    250*190*39mm
  • Connector Insertion Loss
    <0.2dB
  • OME Or Sample
    Ok
  • Cable Port
    Cable Gland, 2 Inports, 16 Outports
  • Cable Diameter
    16mmin, 3mmdrop Cable Out
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0212G
  • Minimum Order Quantity
    200pcs, first order accept small order
  • Price
    negotiable
  • Packaging Details
    1pc/box, 20pcs/carton box
  • Delivery Time
    5-8working days
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C
  • Supply Ability
    50k per month

Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter

Outdoor 12Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter IP65





FDB0216G optic fiber boxes is applicable PLC coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH.



Features

  • The two-tier structure, the upper wiring layer optical splitter, lower for fiber splicing layer.
  • Optical Splitter module drawer modular design with a high degree of interchangeability and versatility;
  • Up to 12pcs FTTH drop cable
  • 2 ports for outdoor cable in
  • 12 ports for drop cable or indoor cable out
  • can accommodate 1x4 and 1x8 1x16 PLC splitter (or 2x4 or 2x8)
  • Wall mounting and pole mounting application
  • IP 65 waterproof protection class
  • Indoor or outdoor use
  • Suitable for 12x SC / LC duplex adapter
  • Pre-terminated pigtails,adapters, plc splitter available.

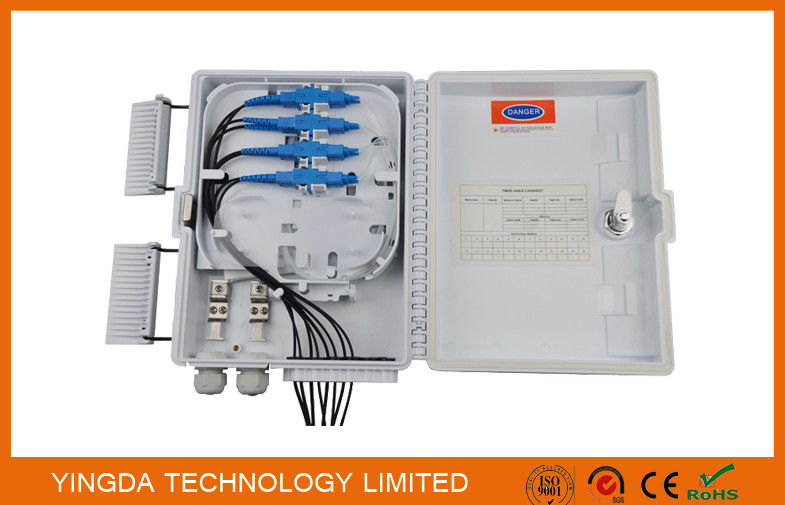

White Color Box

Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter 0Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter 1



Gray Color Box

Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter 2Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter 3



Cable Entry Port can do cable gland or uncut cable express port like below:Outdoor 12 Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter 4



Application



1.Widely used in FTTH (Fiber To the Home) access network

2.Telecommunication Networks

3.CATV Networks

4.Data communications Networks

5.Local Area Networks

6.Suitable for Telekom UniFi



Specifications



Model FDB0216G
Dimension 250*190*39mm
Max capacity

12CORES

; PLC:1X2,1X4,1X8,1X12

Max adapter 12X SC simplex, LC duplex adapter
Max splitter ratio 1x2,1x4,1x8,2x4,2x8 mini splitter
Cable port 2in 16out
Cable diameter In: 16mm; out:2*3.0mm drop cable or indoor cable
Material PC+ABS
Color White, black, gray
Environmental requirement Working temprature : -40℃~+85℃
Relative humidity : ≤85% (+30℃)
Atmospheric pressure : 70Kpa~106Kpa
Main technical Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insertion and extraction : >1000 times
Thunder-proo technical

The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC); IR≥2*104MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V





Standard Accessories



Cabinet keys; Plastic expansion screw, Self-tapping screws; Hose clamps, Shrinkable sleeves, buffer tube, pole mount or wall mount kits etc.
