12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box

Basic Information
Place of Origin: SHENZHEN, CHINA
Brand Name: YINGDA
Certification: ISO
Model Number: FDB0212C
Minimum Order Quantity: 200pcs, first order accept small order
Price: negotiable
Packaging Details: 1pc/box, 20pcs/carton box
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50k per month
Contact Now
Detail Information
Material: PC+ABS Capacity: 12 Fibers
Adapter Qty: 12pcs SC / LC Duplex Split Ratio: 1x2,1x4,1x8 Micro Splitter
Color: White Size: 225*200*65mm
Connector Insertion Loss: <0.2dB OME Or Sample: Ok

Product Description

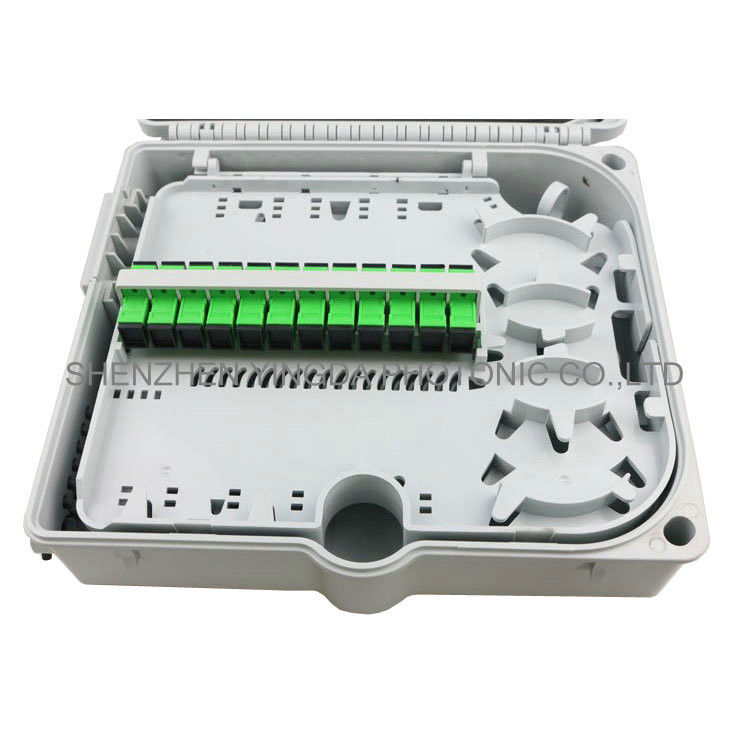

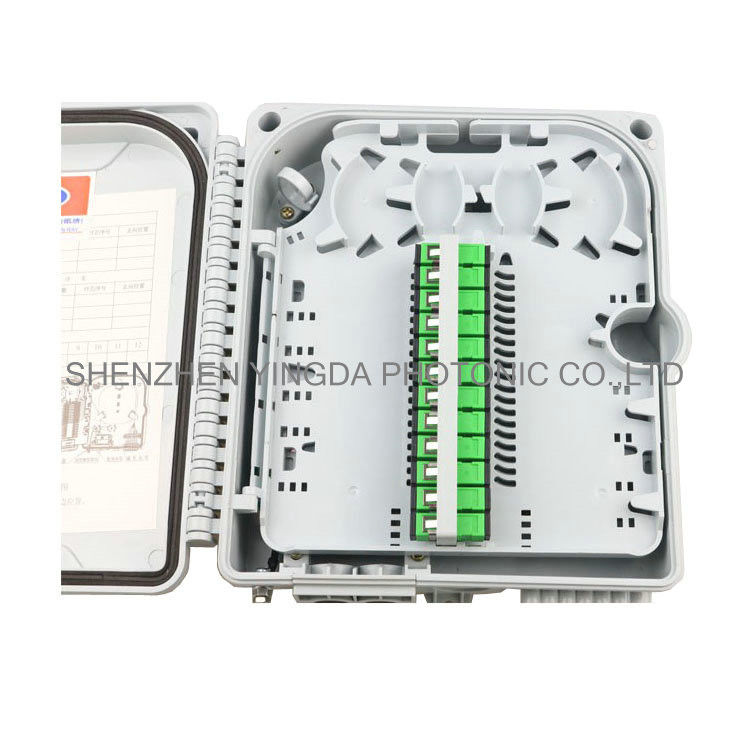

IP65 12 Cores 8 Cores FTTH Fiber Optic Termination Box ABS+PC 2In 12Out PLC Splitter Box



Model:FDB0212C





The distribution box is used as a terminal point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box ,and meanwhile it provide solid protection and management for the FTTX net work building.





Features:

•Total enclosed structure, be in nice shape
•Material: PC+ABS, wet proof , waterproof, anti--aging
•Clamping for feeder cable and drop cable, fiber splicing , fixation, storage, distribution...all in one
•Cable, pigtail , patch cord are running through own path without disturbing each other, cassette type SC adapter installation, easy to maintain and extend the capacity
•Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.



Application: FTTH and FTTB



Standard Configuration

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, rubber steal for cable entrance

Optional Configuration
Extra lock and key



More pictures

12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box 12 Cores 8 Cores FTTH Fiber Optic Termination Box / Distribution Box IP65 PLC Spiltter Distribution Box



Specifications

Environmental requirement   Main technical data
Working temperature -40~+75℃ Insertion loss ≤0.2dB
Relative humidity ≤85%(+30℃) UPC Return loss ≥50dB
Atmospheric pressure 70KPa~106KPa APC Return loss ≥60dB
size 2 core 168*102*32mm
size 4 core 186*116*41mm
size 6 core 196*116*41mm
size 8 core 223*180*48mm
size 12core 310*224*73mm
size 24 core 317*237*101mm
size 32 core 420*320*132mm
