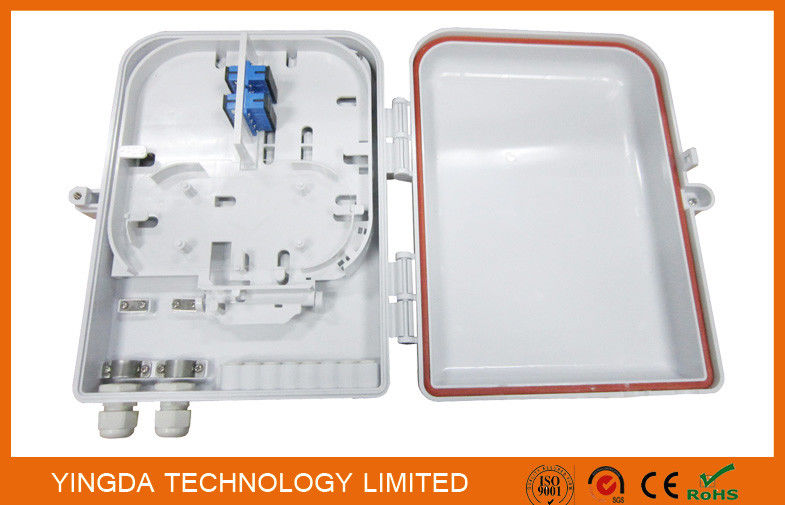

Outdoor iIP68 16 Ports Fiber Optic Cable PLC Splitter DistributionTermination Box White Plastic

Outdoor iIP68 16 Ports Fiber Optic Cable PLC Splitter DistributionTermination Box White Plastic

  • High Light

    fiber optic closure

    ,

    optical distribution box

  • Adapter
    SC/UPC
  • Capacity
    16 Fibers
  • Output
    16 Pieces
  • Cable Inport
    2 PCS
  • PLC Splitter
    1:16 Mini Splitter
  • Dimension
    260*320*90mm
  • Material
    PC
  • Color
    White
  • Cable Diameter
    6-10mm
  • Adapter Quantity
    16 Pieces SC
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB-0216A
  • Minimum Order Quantity
    100PCS
  • Price
    NEGOTIABLE
  • Packaging Details
    1 pc per box, 10 pcs per carton shipping box
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union, MoneyGram

Outdoor iIP68 16 Ports Fiber Optic Cable PLC Splitter DistributionTermination Box White Plastic

Outdoor iIP68 16 Ports Fiber Optic Cable PLC Splitter DistributionTermination Box White Plastic





YINGDA FTTH Fiber Customer Terminal Box is used in the end termination of residential buildings and villas, to fix and splice with pigtails; Hinge and convenient press-pull button lock design; Wall mounted with mechanical protection function.



Features

  • The box is made of high impact plastic PC material, high strength,good quality
  • Can use in outdoor harsh environment -40~+85°C
  • Can maximum hold 16pcs SC or LC duplex adapters
  • Indoor or outdoor pole-mounting or wall-mounting
  • Can install adapter, pigtails or plc splitter at factory
  • Can use micro splitter 1x8 or 1x16
  • 2inports, and 16outports
  • Waterproof class IP65
  • Max capacity 16cores
  • OEM or ODM ok
  • 100% test before shipment



Specifications

Model FDB0216A
Dimension 260*320*90Mm
Cable ports 2in, 16out
Cable diameter In :7-10mm, out: 2*3.0mm or indoor cable
PLC split ratio 1x2, 1x4, 1x8,1x16 micro splitter
Net weight 1.4kg
Material PC / ABS
Color White





More Products:



a. each product in a individual carton box with all accessories.

b. white color, PC material, plastic

c. 2 inports, 16outports

d. plastic key to open box, also 2 plastic press-pull bolt

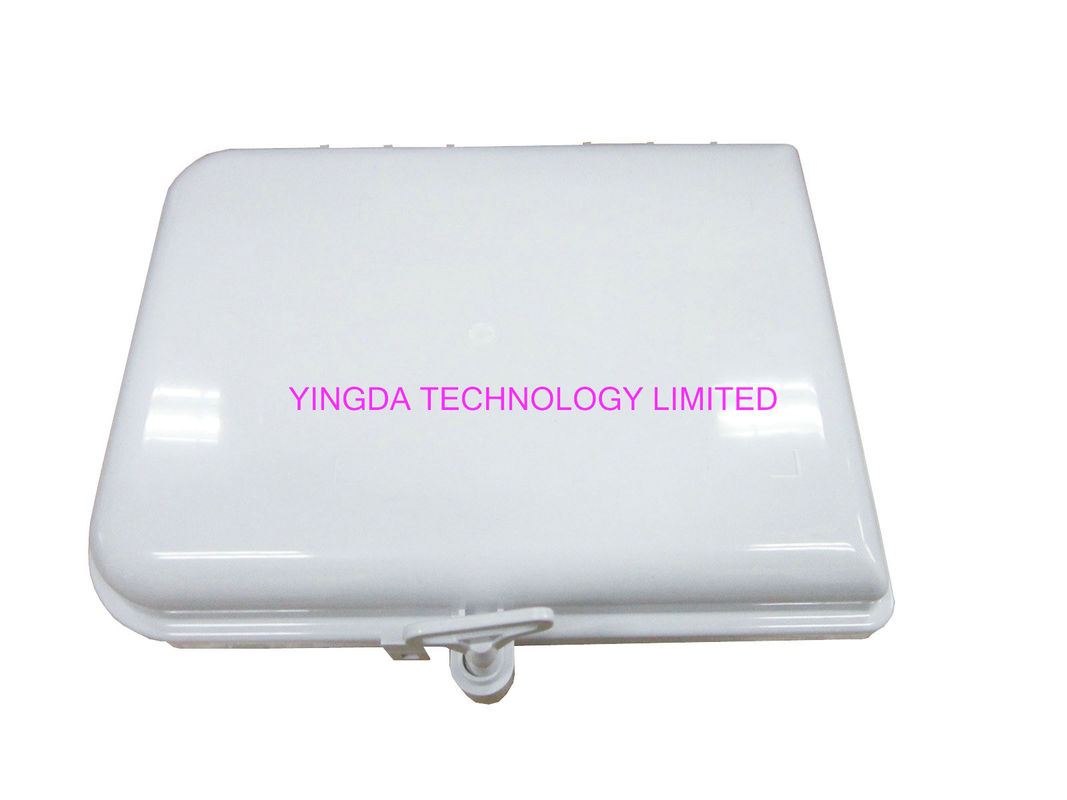

Outdoor iIP68 16 Ports Fiber Optic Cable PLC Splitter DistributionTermination Box White Plastic 0 Outdoor iIP68 16 Ports Fiber Optic Cable PLC Splitter DistributionTermination Box White Plastic 1



a/  all cable ports is isolated with outside with rubbeer seal, waterproof, can use in outdoor

b/ adaper panel can use maximum SC adapters x 16pcs, will equipped adapter screws when delivery



Outdoor iIP68 16 Ports Fiber Optic Cable PLC Splitter DistributionTermination Box White Plastic 2 Outdoor iIP68 16 Ports Fiber Optic Cable PLC Splitter DistributionTermination Box White Plastic 3

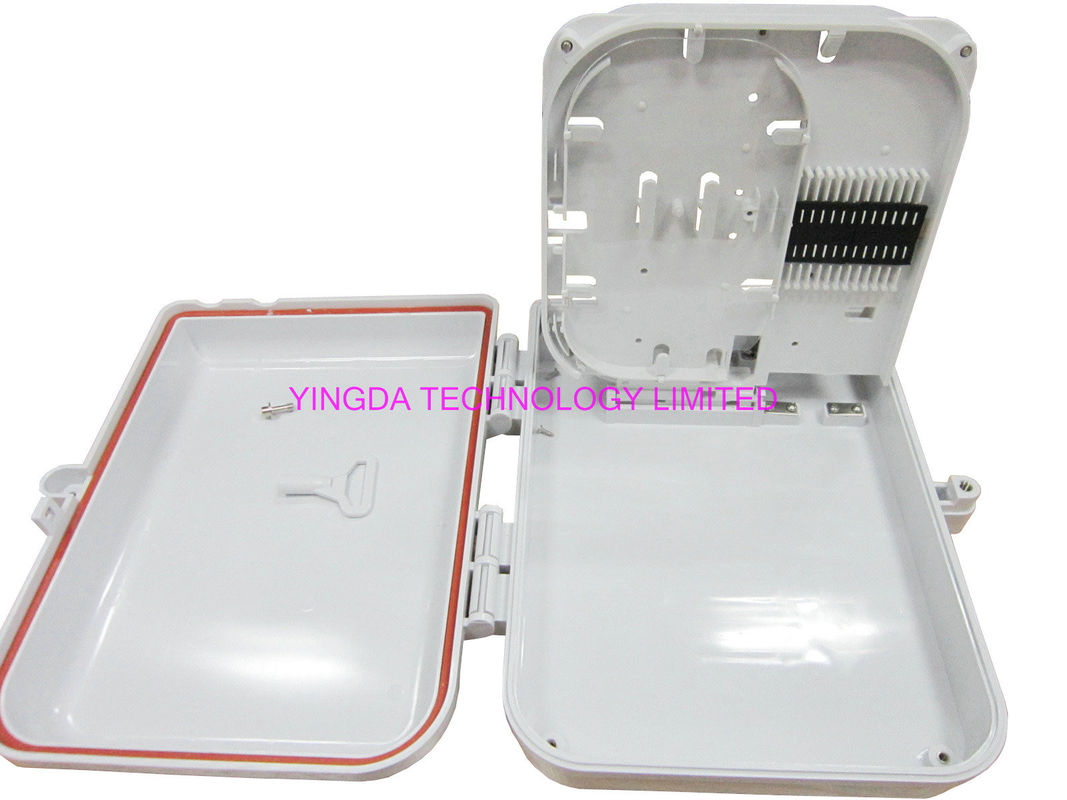

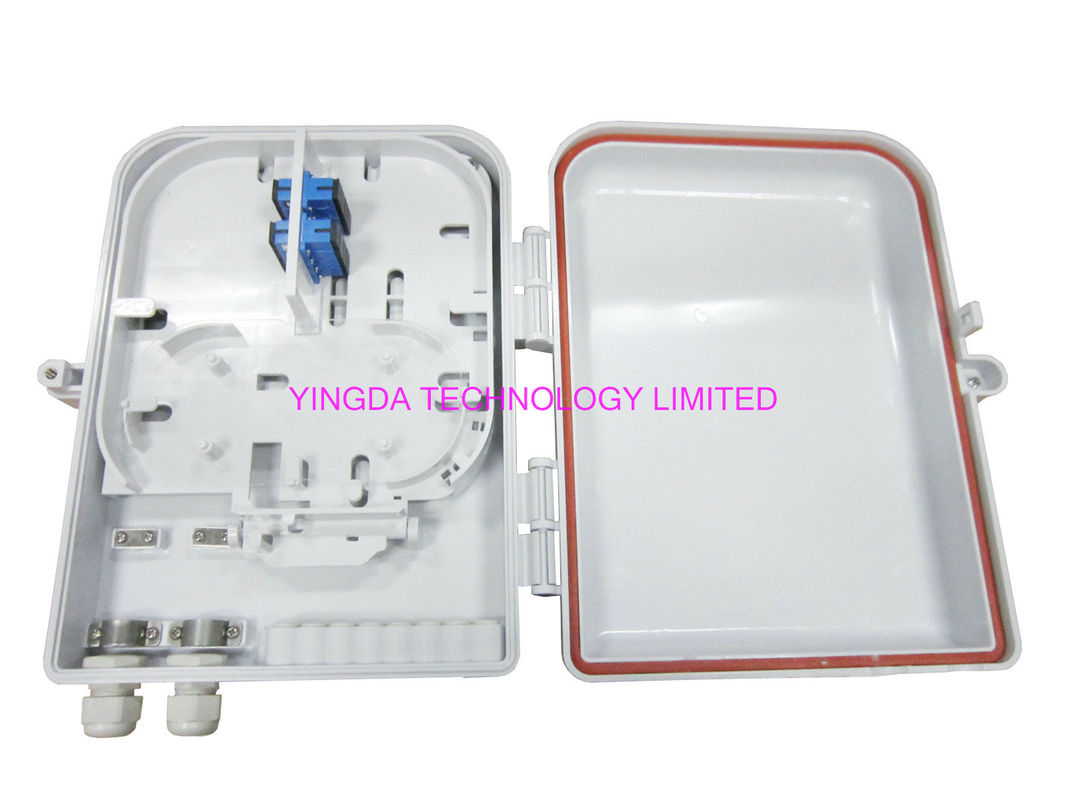

FDB0216 fiber terminal box inside views           FDB-0216 optic terminal box internal view

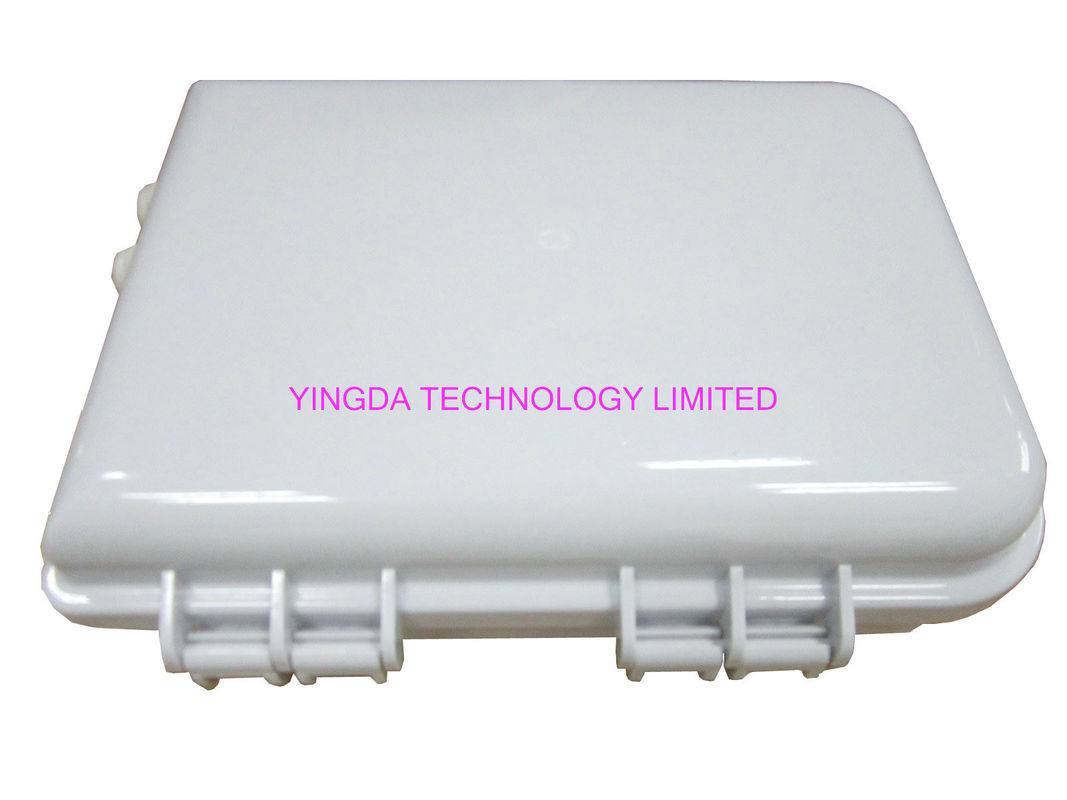

Outdoor iIP68 16 Ports Fiber Optic Cable PLC Splitter DistributionTermination Box White Plastic 4 Outdoor iIP68 16 Ports Fiber Optic Cable PLC Splitter DistributionTermination Box White Plastic 5





Package information

Model FDB0216A
Carton quantity 10pcs
Carton size 56*36*62cm
Carton weight 15.6kg



Application

  1. Widely used in FTTH access network.
  2. Telecommunication Networks
  3. Data communications Networks
  4. Local Area Networks
  5. CATV Networks
