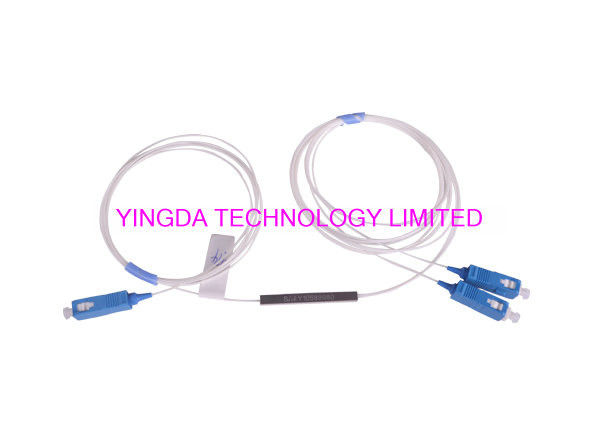

Steel Tube Splitter PLC 900um 1 Meter LSZH G657A SC Connector
| Place of Origin | china |
|---|---|
| Brand Name | YINGDA |
| Certification | ISO |
| Model Number | 1X2 1*2 1:2 PLC splitter |
| Minimum Order Quantity | 100 pcs |
| Price | negotiable |
| Packaging Details | 1pc/ box,100pcs/carton box |
| Delivery Time | 5-8days after payment |
| Payment Terms | Western Union, T/T, MoneyGram |
| Supply Ability | 10,000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Split Ratio | 1:2 Coupler | Connector | SC UPC |
|---|---|---|---|
| Fiber Type | SMF G657A1 | Insertion Loss | <3.5dB |
| Uniformity (Max.) | <0.5dB | Wavelength | 1260 - 1650 Nm |
| PDL(Max.) | 0.2dB | Standard | Telcordia GR-1221 And GR-1209 |
| Steel Tube | 60*7*4mm | ||
| High Light | fiber optic splitter,fbt coupler |
||
Product Description
1x2 1:2 1*2 Steel Tube Splitter PLC 900um 1Meter LSZH G657A SC Connector UPC Polished
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity. Precision Micro-optics provides 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter shown below.
Steel tube size:
Features
- Low insertion loss and PDL
- High channel number
- Compact size
- High reliability
- Wide operating wavelength and temperature range
- Excellent channel uniformity
- Telecordia GR-1221 and GR-1209
More pictures
PLC splitter steel tube can add connectors, SC/UPC or SC/APC
the cable diameter is 0.9mm, can be white or different color input and output.
Each cable have label ring to identify the split
steel tube can print: customer LOGO,product name serial number as per customer request
each PLC splitter will pack with 1pc test report when delivery.
package can be blister bag or carton box. For cost saving, we suggest carton box, it can also protect the fibers and products in a very good condition.
Specifications (1XN):
| Port Configration | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
| Insertion Loss (dB) | Typical | 3.5 | 6.8 | 10.2 | 13.1 | 16.2 | 20.2 |
| Max | 4.0 | 7.4 | 10.5 | 13.5 | 16.9 | 21.0 | |
| Channel Uniformity (dB) | 0.5 | 0.7 | 1.0 | 1.4 | 1.8 | 2.0 | |
| PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| WDL (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 | |
| TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | |
| Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 60X12X4 | 80(L)X20(W)X6(H) | ||||
| RL (dB) | > 55dB | ||||||
| Directivity (dB) | > 55dB | ||||||
| Fiber Type | G652D or G657A | ||||||
| Operating Temperature Range | -40ºC ~ 85ºC | ||||||
Specifications (2XN):
| Port Configration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | |
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
| Insertion Loss (dB) | Typical | 3.8 | 7.2 | 10.6 | 14.0 | 16.8 | 20.8 |
| Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.9 | 21.5 | |
| Channel Uniformity (dB) | 1.0 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 | |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 | |
| WDL (dB) | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1.0 | |
| TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | |
| Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 80(L)X12(W)X4(H) | 80X20X6 | ||||
| RL (dB) | > 50dB | ||||||
| Directivity (dB) | > 55dB | ||||||
| Fiber Type | G652D or G657A | ||||||
| Operating Temperature Range | -40ºC ~ 85ºC | ||||||
YINGDA produce all kinds of PLC splitters of fiber optic and sell at home and aboard: mini module type, LGX module type, steel tube type, bare fiber type, ABS plastic module type, Rack type, fusion module tray type, splitter closure type... etc.
