Product Details:
|
| Split Ratio: | 1:2 Coupler | Connector: | LC/APC |
|---|---|---|---|
| Fiber Type: | Single Mode G657A2 | Insertion Loss: | <3.9dB |
| Uniformity (Max.): | <0.5dB | Wavelength: | 1260 - 1650 Nm |
| PDL(Max.): | 0.2dB | Standard: | Telcordia GR-1221 And GR-1209 |
| Steel Tube: | 60*7*4mm | Cable Color: | In: White, Out: Blue, Orange |
| High Light: | fiber optic splitter,fbt coupler |
||

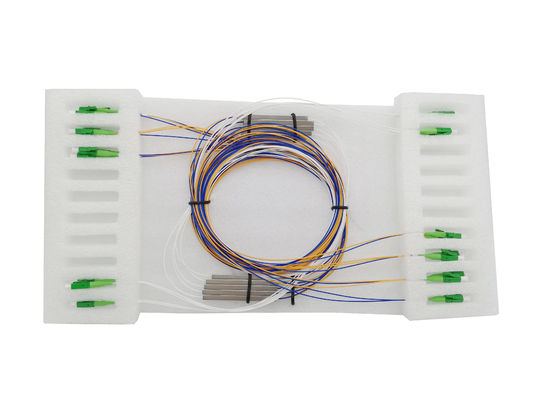

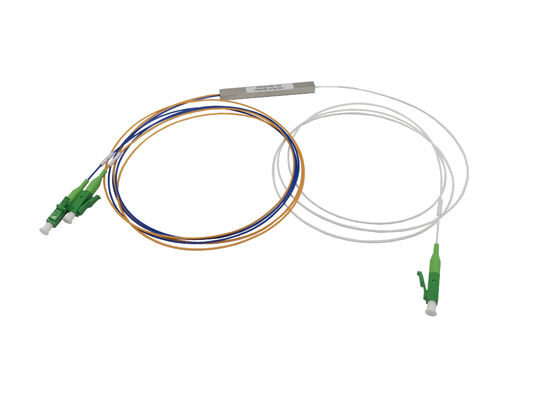

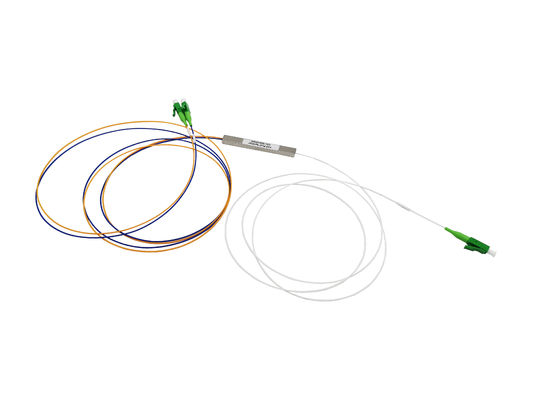

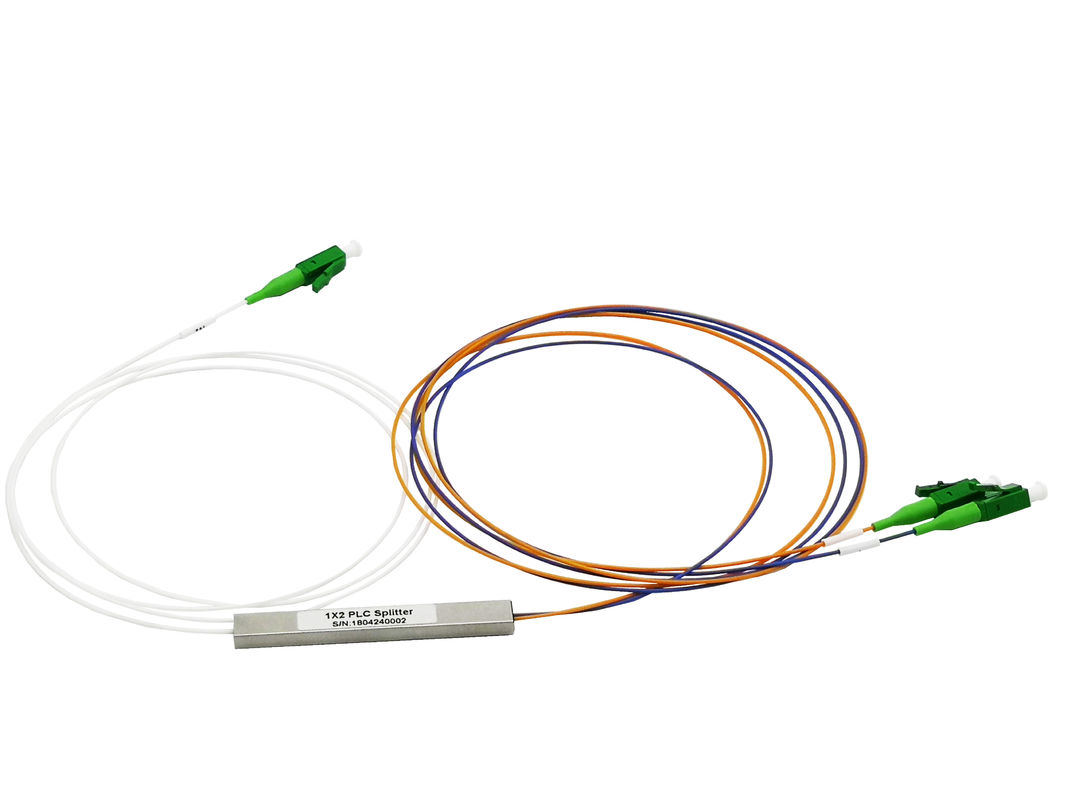

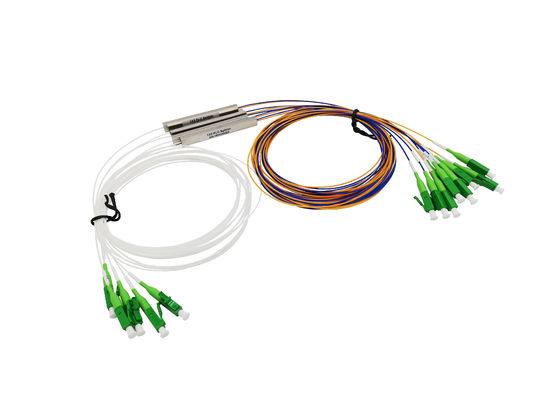

1X2 Mini Fibre optic PLC Splitter Single Mode Corning G657A2 FTTH CTO Box SC LC/APC 1*2 2Way
YINGDA produce all kinds of PLC splitters of fiber optic and sell at home and aboard: mini module type, LGX module type, steel tube type, bare fiber type, ABS plastic module type, Rack type, fusion module tray type, splitter closure type... etc.
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity. Precision Micro-optics provides 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter shown below.
Specifications (1XN):
| Port Configration | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
| Insertion Loss (dB) | Typical | 3.5 | 6.8 | 10.2 | 13.1 | 16.2 | 20.2 |
| Max | 4.0 | 7.4 | 10.5 | 13.5 | 16.9 | 21.0 | |
| Channel Uniformity (dB) | 0.5 | 0.7 | 1.0 | 1.4 | 1.8 | 2.0 | |
| PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| WDL (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 | |
| TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | |
| Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 60X12X4 | 80(L)X20(W)X6(H) | ||||
| RL (dB) | > 55dB | ||||||
| Directivity (dB) | > 55dB | ||||||
| Fiber Type | G652D or G657A | ||||||
| Operating Temperature Range | -40ºC ~ 85ºC | ||||||
Specifications (2XN):
| Port Configration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | |
| Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
| Insertion Loss (dB) | Typical | 3.8 | 7.2 | 10.6 | 14.0 | 16.8 | 20.8 |
| Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.9 | 21.5 | |
| Channel Uniformity (dB) | 1.0 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 | |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 | |
| WDL (dB) | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1.0 | |
| TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | |
| Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 80(L)X12(W)X4(H) | 80X20X6 | ||||
| RL (dB) | > 50dB | ||||||
| Directivity (dB) | > 55dB | ||||||
| Fiber Type | G652D or G657A | ||||||
| Operating Temperature Range | -40ºC ~ 85ºC | ||||||
Features
key word: 1x2 plc splitter, 1x2 splitter, ftth splitter, fiber splitter, optical splitter, 1:2 splitter, plc splitter
