Fiber Optic Splitter Box
Created with Pixso. 24 Cores Fiber Optic Splice Box Plastic Fiber To Home Splitter Distribution Box

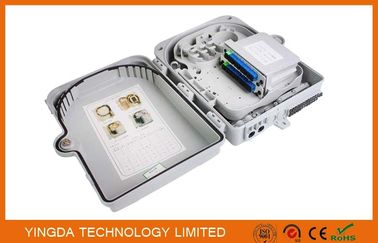

24 Cores Fiber Optic Splice Box Plastic Fiber To Home Splitter Distribution Box

Brand Name: YINGDA
Model Number: FDB0224D
MOQ: 500 PCS
Price: Negotiable
Delivery Time: 5-8 working days
Payment Terms: T/T,Western Union, MoneyGram
Detail Information
Place of Origin:
china
Certification:
ISO
Max Capacity:
24fibers
Dimension:
317*237*101mm
Cable Diameter:
2*3.0mm Drop Cable Or Indoor Cable
Material:
PC+ABS
Color:
White Gray, Black
Adapter Quantity:
24 Pieces SC
Cable Ports:
2inlet, 24outlets
Special:
Un-cut Cable Go Through The Box
Application:
Pole Mount, Wall Mount
Customer Request:
LOGO, Sample, Lebel Ok.
Packaging Details:
1 pc per box, 10 pcs per carton shipping box
Supply Ability:
20000pcs/month
Highlight:

optical distribution box

,

splitter distribution box

Product Description

Plastic Fiber To Home Splitter Distribution Box, 24Cores Fiber Optic Splice Box SC Adaptors Flip Cover





Model: FDB0224D



The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting and distribution can be done in this box,

and in meanwhile, it provides solid protection and management for the FTTx network building.



Features:

  1. High strength engineering plastic PC+ABS
  2. wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP55.
  3. Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.
  4. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one box.
  5. Both indoor and outdoor use
  6. Wall mounting and pole mounting application
  7. Industry standard user interface, max load24pcs LC SC adapter
  8. 2pcs uncut cable entry ports, 24 outports for FTTH drop cable
  9. Can accommodate 1x4,1x8,1X16, 2x4,2x8 & 2x16 LGX modular splitter insert type
  10. Can pre-installed pigtails,patch cords or adapter, splitter.



Techanical Parameters



Environmental requirement Main technical data
Working temperature -40°C~+75°C Insertion loss ≤0,2dB
Relative humidity ≤85%(+30°C) UPC return loss ≥50dB
Atmospheric pressure 70KPa~106KPa APC return loss ≥60dB



Terminal Box Wiring Diagram

24 Cores Fiber Optic Splice Box Plastic Fiber To Home Splitter Distribution Box 0



1 Lid 2 Base
3 Flip plate 4 Lock and lock coat
5 Simple double slots 6 Grounding device
7 Module kit 8 Main cable expressing plate
9 Grounding bar 10 Main cable forcing expressing plate
11 24cores drop cable jig 12 Loop ring
13 Drop cable expressing plate 14 Drop cable clip
15 24cable exit dusty free blocker 16 Drop cable
17 Pigtails 18 Sc adapter
19 Main cable 20 Anchor
21 Insertion cassette/ adapter panel



Specification





Model

Size(A*B*C)

Max

Capacity

FTTH drop cable Adapter PLC splitter Material
FDB0224D 320*240*100mm 24fibers 24ports SCx24pcs or LC duplex 1x16 LGX module ABS+PC



Packaging information



Model CTN qty N.w/ctn G.w./ctn Ctn size
FDB0224D 10pcs 15.1kgs 17.5kgs 60*36*63cm





How to installation:

24 Cores Fiber Optic Splice Box Plastic Fiber To Home Splitter Distribution Box 1

1.Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.



2.Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole .





More Real Pictures

24 Cores Fiber Optic Splice Box Plastic Fiber To Home Splitter Distribution Box 2

box top and back veiw, with wal mount holes

24 Cores Fiber Optic Splice Box Plastic Fiber To Home Splitter Distribution Box 3

the cable port is especiallly design for uncut cable, so as to make the cable go through the box not cutting, easy to operate and save time and cost on site.

24 Cores Fiber Optic Splice Box Plastic Fiber To Home Splitter Distribution Box 4

the LGX modular can change into adapter panel on customer request, universal box.
