Fiber Optic Splitter Box
Created with Pixso. 24 Cores Outdoor Mid Span Access Fiber Optic Splitter Box FTTH GPON CTO IP65

24 Cores Outdoor Mid Span Access Fiber Optic Splitter Box FTTH GPON CTO IP65

Brand Name: YINGDA
Model Number: FDB0224C
MOQ: 100 PCS
Price: Negotiable
Delivery Time: 5-8 working days
Payment Terms: T/T,Western Union, MoneyGram, L/C
Detail Information
Place of Origin:
china
Certification:
ISO
Max Capacity:
24 Fibers
Dimension:
317*237*101mm
Cable Exit:
Ftth Flat 2*3.0mm Drop Cable
Material:
PC+ABS
Color:
Gray, Black
Adapter:
24 SC Couplers
Cable Entry:
1 Cable Gland, 2 Uncut Port (mid Span Access Port)
Special:
Un-cut Cable Go Through The Box
Application:
Ftth Fttb Fttx, Gpon, Epon, Pon Network
Customer Request:
LOGO, Sample, Lebel Ok.
Type:
Fiber Optic Junction Box, Splitter Box
Installation Method:
Pole Mount, Wall Mount
Packaging Details:
1 pc/inner cardboard box, 10 pcs/master box
Supply Ability:
20000pcs/month
Highlight:

fiber optic closure

,

optical distribution box

Product Description

24 Cores Outdoor Mid Span Access Fiber Optic Splitter Distribution Box FTTH GPON CTO IP65





This box is used as a temrination point for the 24cores feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building. It maximum can make 24subscribers ftth application network.





Specifications

Model Dimension Max capacity PLC splitter Adapter Cable port Material
FDB-0224B 317*237*101mm 24 fibers 1X16,1X8,1X4,1X2 mini splitter 24pcs SC 3in,24out ABS+PC




Wiring diagram

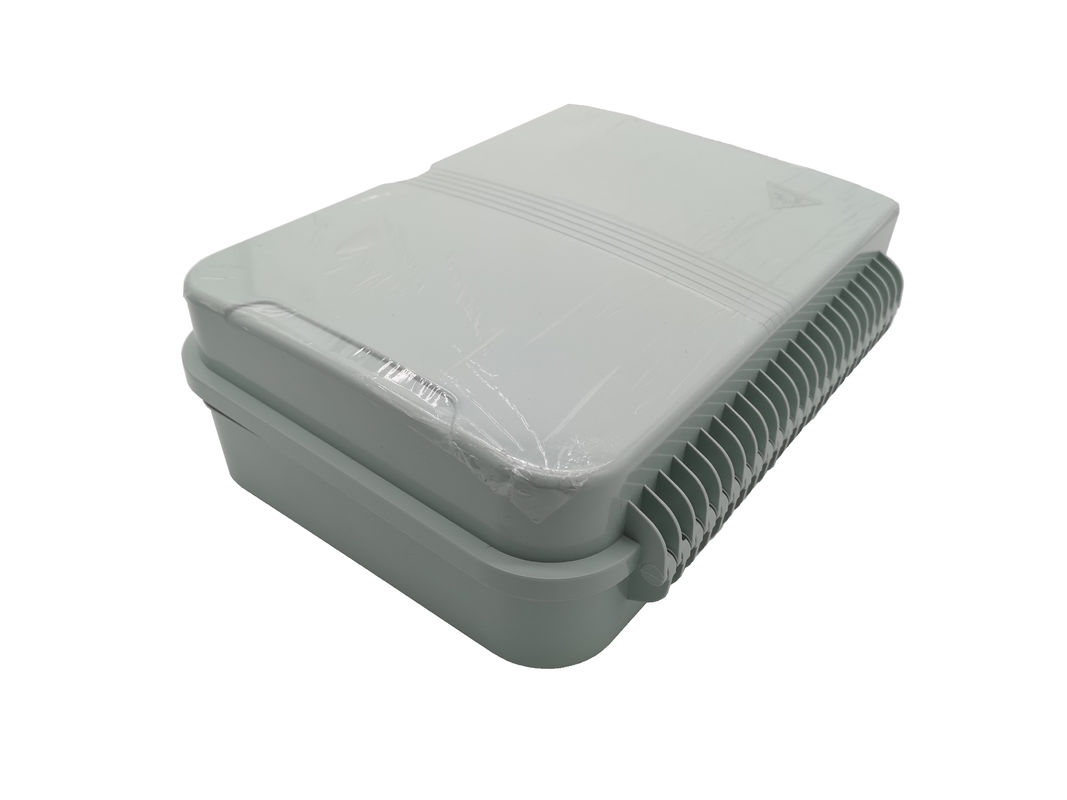

24 Cores Outdoor Mid Span Access Fiber Optic Splitter Box FTTH GPON CTO IP65 0





Terminal Box Completed Like below

+24PCS SC/UPC adapters

+ 24pcs SC/UPC fast connectors 55mm

+ 24pcs SC/UPC Pigtails 1Mts 0.9mm yellow G65A71 LSZH

+24pcs ftth flat drop cable 2x3.0mm black 1core G657A1 LSZH steel wrie,etc.

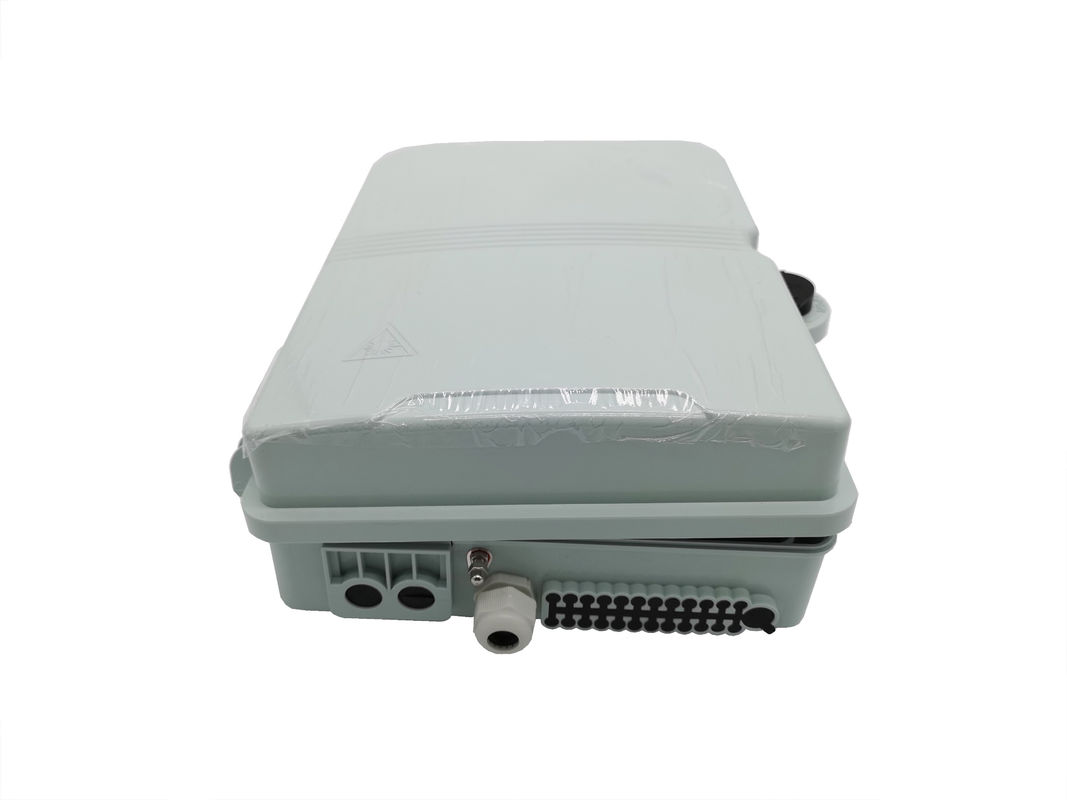

24 Cores Outdoor Mid Span Access Fiber Optic Splitter Box FTTH GPON CTO IP65 1

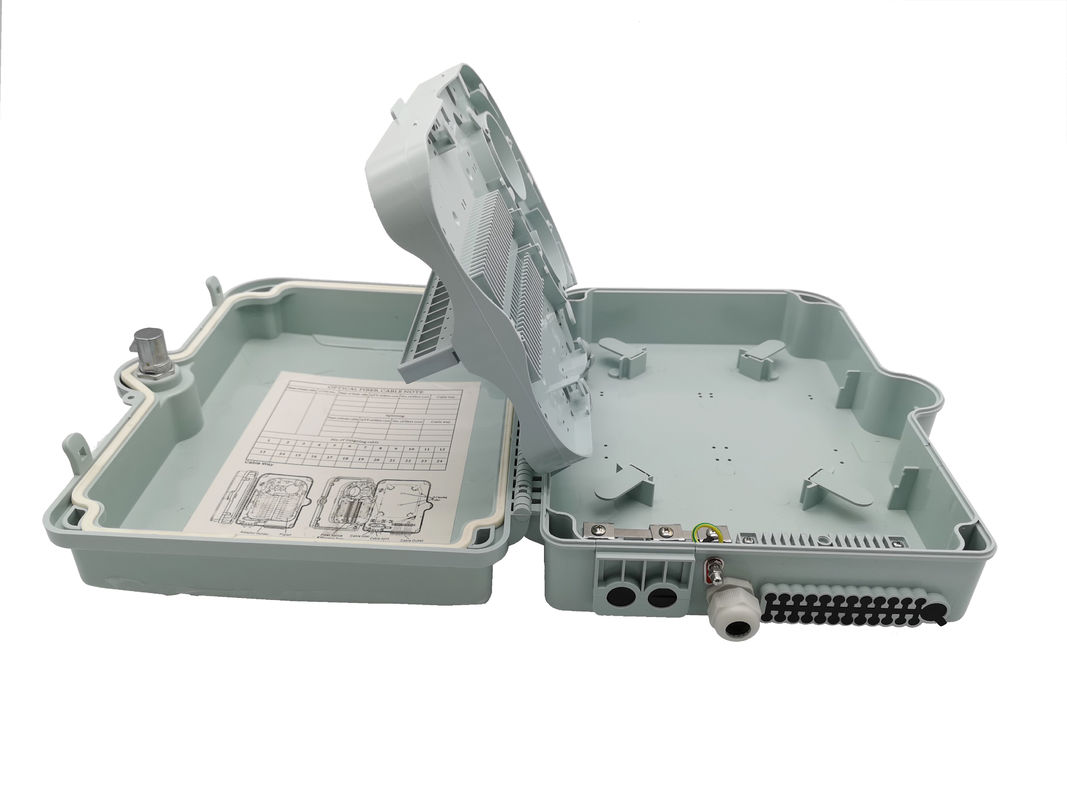

24 Cores Outdoor Mid Span Access Fiber Optic Splitter Box FTTH GPON CTO IP65 2

Overview:

  • Made of high quality high strength engineering PC+ABS material, anti-UV, anti-aging, flame retardantd material is optional;
  • Protects and manages cable effectively, all box mix fusion, distribution, splitting, storage in one set, multi-functional;
  • Standard size, moderate weight, easy to operate, green hand can do fiber optic installation without manual.

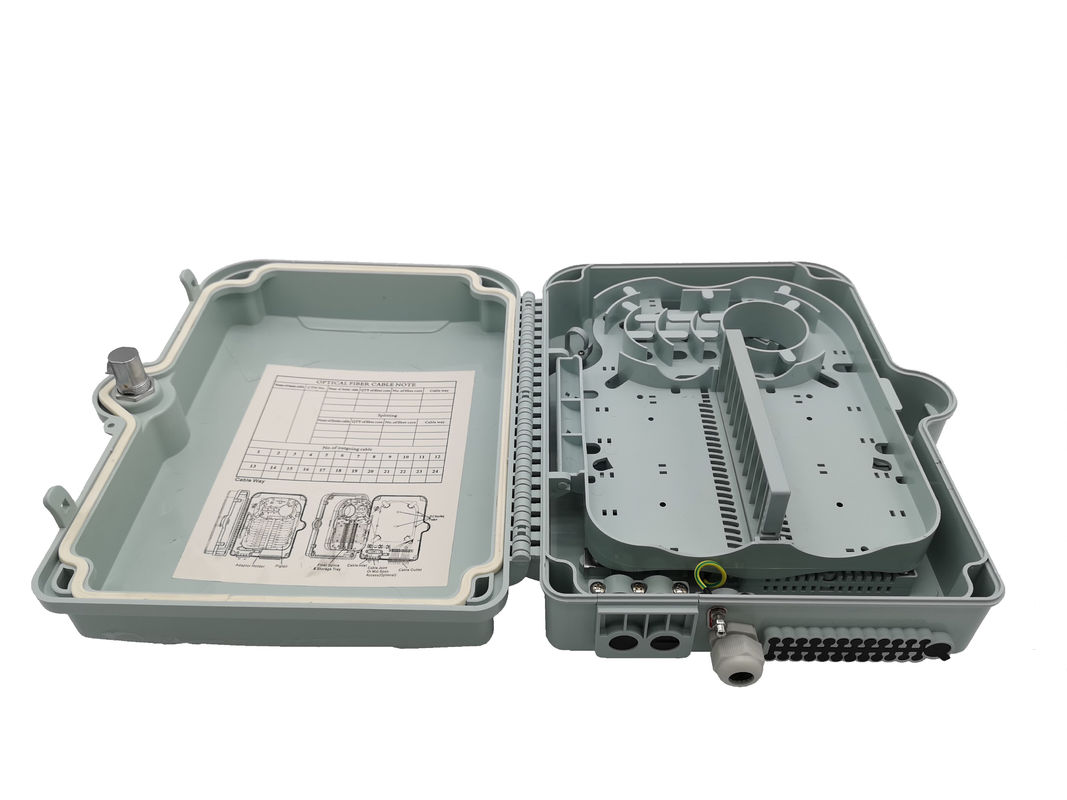

24 Cores Outdoor Mid Span Access Fiber Optic Splitter Box FTTH GPON CTO IP65 3

Cable entry &exit:

  • This distribution box can use mid span port or 1 cable gland optional, can maximum exit 24pcs ftth figure-8 bow-type drop cable;
  • All entry and exit cable have cable fixtion or clamps, which makes it stable after long time use, and all the metal parts are stainless steel;
  • Especially for drop cable exit, there are 2ways of 12pcs slots fo fix the cable, with screws to fix the parts on the box.
  • There is 1 piece yellow grouding wire to make sure outdoor safe installation.

24 Cores Outdoor Mid Span Access Fiber Optic Splitter Box FTTH GPON CTO IP65 4



Lock system:

  • Total enclosed structure, secured with anti-theft locking mechanism:with 2 clips (buckles) + 1xmaster key, anti-thief, dust proof.
  • The whole box is with waterproof seal circle, ensure IP65 protection level.
  • Suitable for both outdoor and indoor use

24 Cores Outdoor Mid Span Access Fiber Optic Splitter Box FTTH GPON CTO IP65 5



Fusion splice plate:

it can maximum hold 24pcs sleeve 60*1.0mm length, also large area for fiber routing, distribution, 2 slots to fix plc splitter steel tube 60*7*4mm size.

24 Cores Outdoor Mid Span Access Fiber Optic Splitter Box FTTH GPON CTO IP65 6



Mounting methods:

Pole mounted or wall mounted, if customer not specify, deliver wall mount type, pole mount need charge additionally.

24 Cores Outdoor Mid Span Access Fiber Optic Splitter Box FTTH GPON CTO IP65 7



Apdater plate (Related products):

  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc all in one
  • Suitable for SC and LC duplex adaptor, pigtails, fast connector, ftth drop cable, etc.
  • The adapter plate can change into LGX module by change the holder instead, if need, pls talk to sales@yingdapc.com
  • or TEL:+86 18688982406

24 Cores Outdoor Mid Span Access Fiber Optic Splitter Box FTTH GPON CTO IP65 8



Technical Paremeters



Work temperature -40~+85°C
Relative humidity ≤85% (+30°C)
Atmospheric pressure 70kPa-106kPa
Insertion loss ≤0.2dB
Upc return loss ≥50dB
APC return loss ≥60dB
Insert and pull out life ≥1000times
Insulation The grounding device is insulated with the termination box, IR≥1000m Ω/500V(direct current)
Withstand voltage Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U≥3000V (direct current)



Application

  • Telecommunication subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN
