Fiber Optic Splitter Box
Created with Pixso. 1X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out

1X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out

Brand Name: YINGDA
Model Number: FDB0216G
MOQ: 100PCS
Price: 1.0USD-18.6USD
Delivery Time: 6days
Payment Terms: Western Union, MoneyGram, T/T
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Material:
ABS+PC
Color:
White
Ftth Drop Cable:
16 Pcs
Cable Ports:
2in 16out
Plc Splitter:
1x2,1x4,1x8,1x16
Adapter:
SC, LC Duplex
Max Splicing:
24 Fibers
Application:
Wall Or Pole Mounting
Customer Logo:
Silk Print
Cable Entry:
Cable Gland X 2pcs
Packaging Details:
1pc in a box, 10 pcs per carton box
Supply Ability:
5000pcs/month
Highlight:

1X8 Fiber Optic Splitter Box

,

2In 16Out Fiber Optic Termination Panel

,

SC APC Fiber Optic Termination Panel

Product Description

PLC splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic Black





Model: FDB0216G



This outdoor fiber optic terminal box is widely use in FTTH network or cable distribution systems, it can be wall mount or pole mount. And maximum can hold 1x16 plc splitter, and 16pcs SC adapters, also has 16pcs FTTH drop cable outports 2 cable inport with cable gland. The box is clip design, easy to open and close.



FTTH fiber optic cable features

  1. Total enclosed structure, good outer appearance
  2. High strength plastic ABS+PC material, waterproof,dustproof,anti-aging.
  3. Clamp for feeder cable and drop cable, fiber splice,fix, store,and distribute in one box.
  4. Cable, pigtails, patchcord go through own path without distrurbing each other,cassette type SC adapter installation, easy to install and maintenance.
  5. Distribution panel can be flip up,feeder cable can be placed in a cup-join way.
  6. 2inport,16outports
  7. Max 16pcs SC adapter and 1x16 plc splitter
  8. Cable gland can be changed into un-cut cable joint (express port), so as to make the cable go through the box without cutting.
  9. White or black color

Fiber Cable Box Dimensions

1X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 0

Fiber terminal box specification



Environmental requirement Main technical data
Working temperature -40°C~+75°C Insertion loss ≤0,2dB
Relative humidity ≤85%(+30°C) UPC return loss ≥50dB
Atmospheric pressure 70KPa~106KPa APC return loss ≥60dB



Model and configuration



Model Size Max Capacity Installation Size Cable entry
SC LC PLC D*E (mm)
FDB0216G 293*219*84mm 16 32 32(LC) 155*82 With/without express port



Packaging information



Model CTN qty N.w/ctn G.w./ctn Ctn size
FDB0216G 10pcs 13.5kgs 16.4kgs 51*33.5*68cm



How to installation:



1.Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.



2.Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole .

1X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 1



Order information



Model Fiber count PLC split Adapter type Adapter qty Body color Cable port
FDB0216G

01=1fiber

02=2fibers

...

16=16fibers

102=1x2

104=1x4

108=1x8

116=1x16

SCA=SC/APC

SCU=SC/UPC

LCA=LC/APC

LCU=LC/UPC

01=1pc

02=2pcs

03=3pcs

...

16=16pcs

B=Black

W=white

G=gray

A=cable gland

B=uncut cable



More pictures of FDB0216 fiber optic splice box



1X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 21X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 3

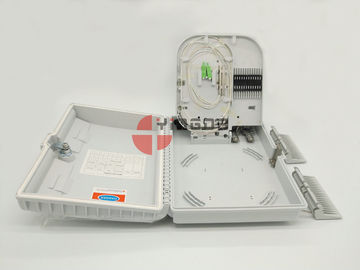

                          Internal of box                                                         Overview



1X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 41X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 5

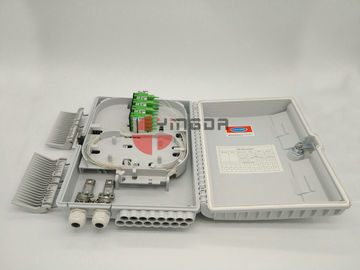

The plate can be flipped-up like pictures, one side is for adapter installation, the other side is for splicing fibers.



1X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 61X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 7

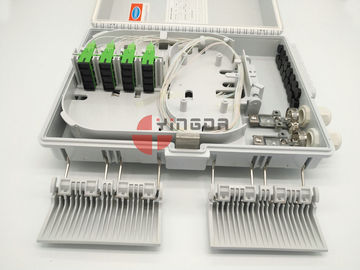

Install SC adapters (max. 24pcs).



1X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 81X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 9

Splice fibers on the plate, there are grooves to fix the steel tube of mini module PLC splitter. On the bottom of box, it is designed to place fiber cables.



1X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 101X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 11

There are two metal parts to fix the main cables that go through the input. This box has 2 inputs and 16 outputs. These ports all are waterproof.



1X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 12

The back of the box is designed for wall mounting or pole mounting indoor and outdoor.



1X8 SC APC PLC Splitter FTTH Drop Cable Fiber Optic Termination Panel Plastic White 2In 16Out 13

FTTH Fiber Splitter Box Accessories



YINGDA produce all kinds of fiber optic box, like:

fiber optic termination box, fiber optic distribution box, fiber optic terminal box,fiber optic splice box,fiber optic splitter box, fiber splice box, fiber splitter box,fiber distribution box, optical termisation box, wall mount fiber termination box,ftth distribution box, ftth termination box, fibre optic splitter box, fibre optic splice box.

Any more questions, pls inquiry us, thanks.
