Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount

Place of Origin china
Brand Name YINGDA
Certification ISO,SGS
Model Number FDB0216G
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details 1pc in a box, 10 pcs per carton box
Delivery Time 6days
Payment Terms Western Union, MoneyGram, T/T
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS+PC Color White
Ftth Drop Cable 16 Pcs Cable Ports 2in 16out
Plc Splitter 1x2,1x4,1x8,1x16 LGX Module PLC Adapter SC, LC Duplex
Max Splicing 24 Fibers Application Wall Or Pole Mounting
Customer Logo Silk Print Cable Entry Uncut Cable Port (express Port)
High Light

optical distribution box

,

splitter distribution box

Leave a Message
Product Description

1*16 Fiber Optic Splitter Box SC LC Duplex Fiber Termination Box PON Netowrk Outdoor Pole Mount





Model:FDB0216G



This outdoor fiber optic terminal box is widely use in FTTH network or cable distribution systems, it can

be wall mount or pole mount. And maximum can hold 1x16 plc splitter, and 16pcs SC adapters, also has

16pcs FTTH drop cable outports 2 cable inport with cable gland. The box is clip design, easy to open

and close.



Features

  • High strength plastic ABS+PC material, waterproof, dustproof, anti-aging.
  • Clamp for feeder cable and drop cable, fiber splice,fix, store,and distribute in one box.
  • Cable, pigtails, patchcord go through own path without disturb each other
  • Cassette type SC adapter installation, easy to install and maintenance.
  • Distribution panel can be flip up,feeder cable can be placed in a cup-join way.
  • Max 16pcs SC adapter and 1x16 plc splitter
  • Cable gland can be changed into un-cut cable joint (express port, the cable go through the box without cutting)
  • White, gray, black color
  • 2inport,16outports
  • Indoor and outdoor use



Fibre Optic Splitter Box dimension

Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 0

Model Size(A*B*C) Max Capacity Installation Size Cable entry
SC LC PLC D*E (mm)
FDB0216G 293*219*84mm 16 32 32(LC) 155*82 With/without express port



Specification



Environmental requirement Main technical data
Working temperature -40°C~+75°C Insertion loss ≤0,2dB
Relative humidity ≤85%(+30°C) UPC return loss ≥50dB
Atmospheric pressure 70KPa~106KPa APC return loss ≥60dB



Details description in photos:

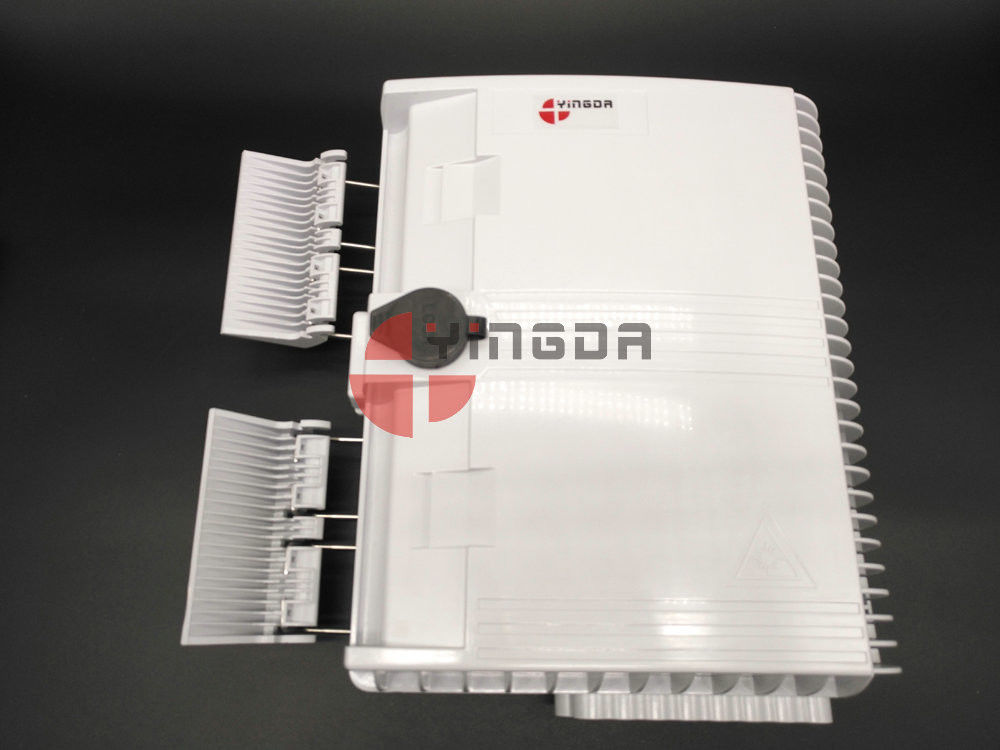

The appearance of the box

Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 1Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 2

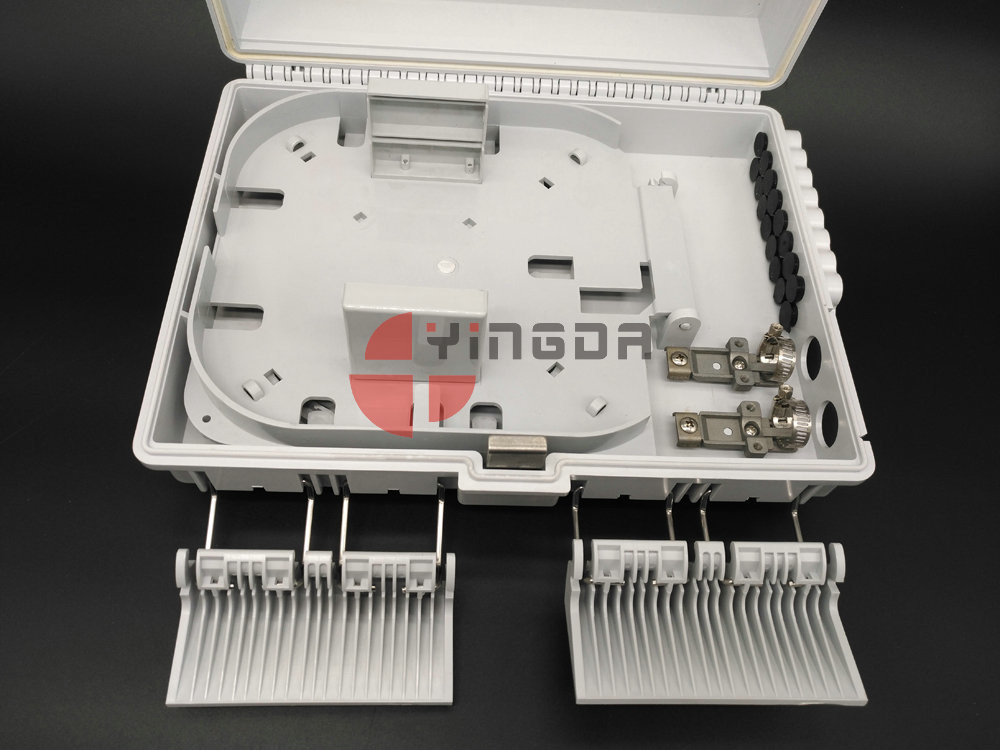

This box internal is designed to install LGX module PLC splitter, like 1x2, 1x4, 1x8, 1x16 LGX Module PLC splitter.

Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 3Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 4

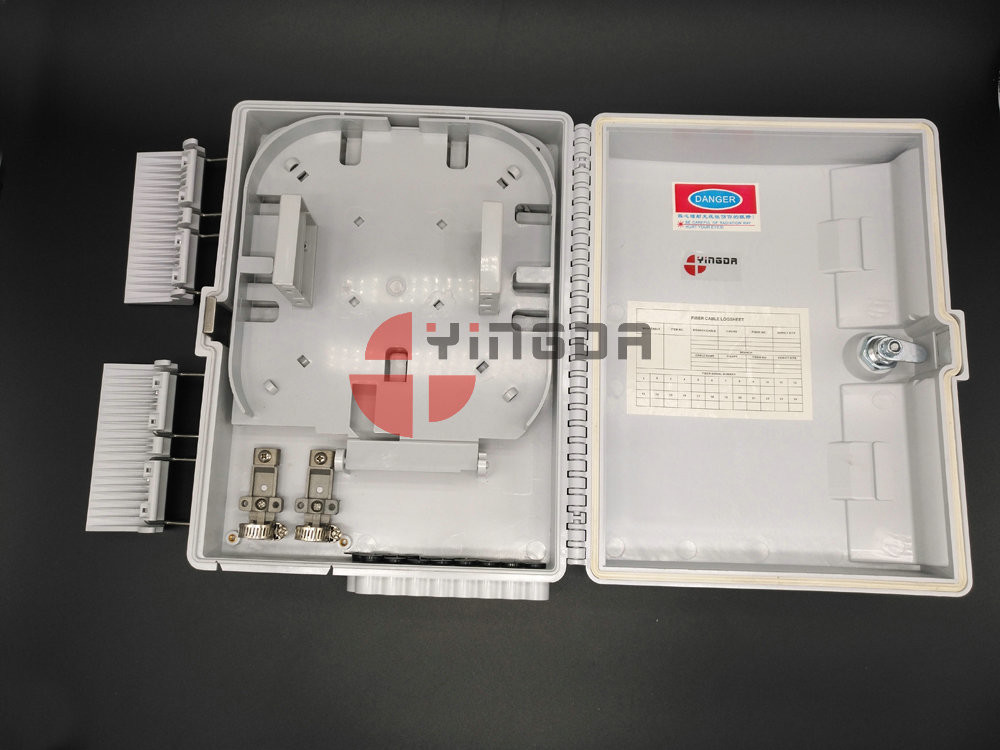

The other side for the plate of LGX PLC splitter like below. The plate can be flipped up, it is more convenient to operate.

Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 5Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 6



The seal method of the box is a key lock and two buckles as below.

Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 7Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 8



The interior of the key lock as below.

Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 9Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 10



The box cover with rubber seal for better waterproof, and suitable for outdoor use.

Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 11Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 12



This box has 2 in 16 out ports. The inputs are two uncut ports, and it also can be cable gland as clients require. At the entrance of the inputs, there are metal things to fix the main cable .

Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 13Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 14



There is a laser mark on the box cover. As the following red circle.

Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 15



The back of box as below, it is designed to wall mount and pole mount.

Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 16

Fiber Optic Splitter Box LGX Module 1x16 PON Netowrk Outdoor Pole Mount 17



How to installation:



1.Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.



2.Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole .



Packaging information



Model CTN qty N.w/ctn G.w./ctn Ctn size
FDB0216G 10pcs 13.5kgs 16.4kgs 51*33.5*68cm





Order information



Model Fiber count PLC split Adapter type Adapter qty Body color Cable port
FDB0216G

01=1fiber

02=2fibers

...

16=16fibers

102=1x2

104=1x4

108=1x8

116=1x16

SCA=SC/APC

SCU=SC/UPC

LCA=LC/APC

LCU=LC/UPC

01=1pc

02=2pcs

03=3pcs

...

16=16pcs

B=Black

W=white

G=gray

A=cable gland

B=uncut cable



Our advantages



1.The most competitive price


2.We are eager to establish long-term cooperation relationship with every customer,so we're responsible for our quality.we provide 3 years warrranty


3.We provide one-stop FTTH Solution Products.besides, we can help you design unique new products and put into production.We care about innovation and would like to change for you and grow up with you.


4.With our own R&D, more completed production lines, advanced production & testing equipments,experienced staffs, we’re confident to provide you satisfied quality and service with competitive price and punctual delivery.


5.For your any queries or inquiries,we will try to reply you within 3 hours
