24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box
24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box

Large Image :  24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box

Product Details:
Place of Origin: china
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: FDB0216G
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Packaging Details: 1pc in a box, 10 pcs per carton box
Delivery Time: 6days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 5000pcs/month

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box

Description
Material: ABS+PC Color: Black / White
Ftth Drop Cable: 16 Pcs Cable Ports: 2in 16out
Plc Splitter: 1x2,1x4,1x8,1x16 Adapter: SC, LC Duplex
Max Splicing: 24 Fibers Application: Wall Or Pole Mounting
Customer Logo: Silk Print
High Light:

optical distribution box

,

splitter distribution box

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box





Model: FDB0216G



Fiber Termination Box provides a high density wall mounted solution for next generation networks,

which aims to provide and manage maximum numbers of fiber termination in a limited space.

It is normally installed in the way of wall mounting or pole mounting.





Features:

1. Water-proof design with IP65 Protection level

2. Integrated with splice cassette and cable management system

3. Manage small & large quantities of fiber with a density

4. Easy to maintain and extend the capacity

5. Fiber bend radius control more than 40mm

6. Suitable for the fusion splice or mechanical splice

7. Capacity of fiber up to 16 ports

8. Varies of adapters are available

9. 1x2,1x4,1×8, 1×16 PLC Splitter can be installed as an option

10. Efficient cable management

11. UV protection and anti-aging material

12. Burglar-proof padlock

13. Double-layer design for easier installation and maintenances:

  • Lower layer for splitters and over length fiber storage.
  • Upper layer for splicing, cross-connecting and fiber distribution.



Specifications

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 0

Uncut Cable Box Dimension



Material Size(A*B*C) Max Capacity

Empty

Weight

Loaded

Weight

Color Installation Size(D*E)
FDB-0216G 293*219*84mm

SC

16 Ports

LC

32 Ports

PLC

1×16

1.4kg 1.8kg

White/

Black

155*82mm



24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 1

                                FDB0216G Fiber optic terminal box - cable management system



Application

  • FTTH access netowrk
  • Telecommunication
  • WAN,LAN network
  • ODN,PON netowrk



Packaging information:



Model CTN qty N.w/ctn G.w./ctn Ctn size
FDB0216G 10pcs 13.5kgs 16.4kgs 51*33.5*68cm





This FDB0216 box can do two colors: White or Black, photo like below:

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 224 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 3



The box ports can do two types: uncut ports and cable gland as below.

                          Uncut port                                                          Cable gland

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 424 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 5

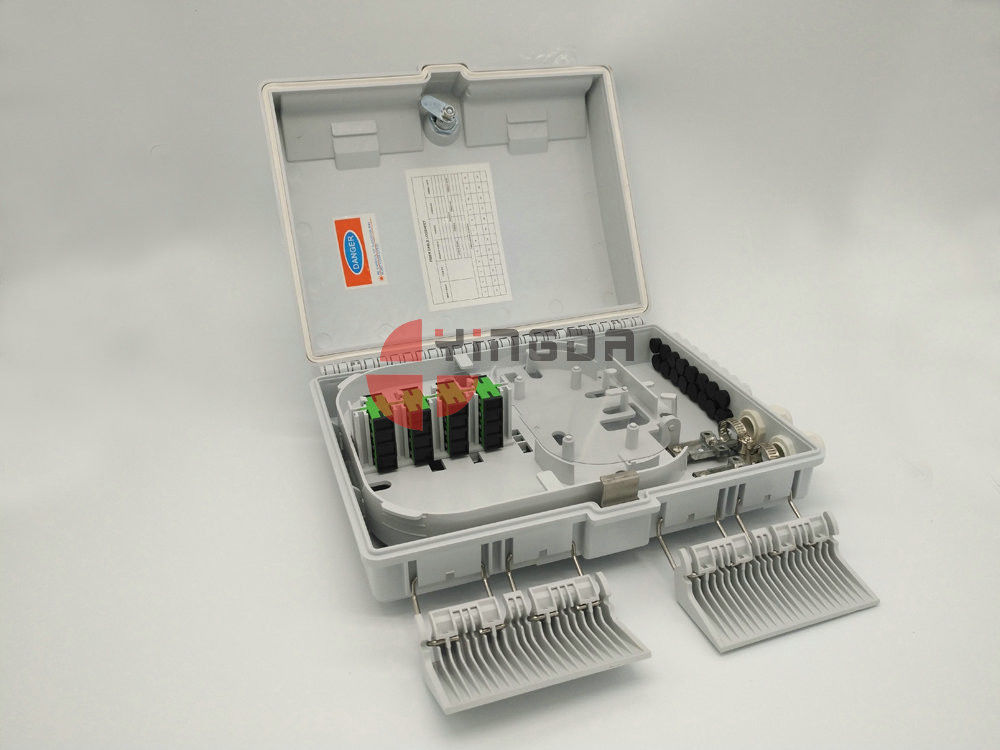

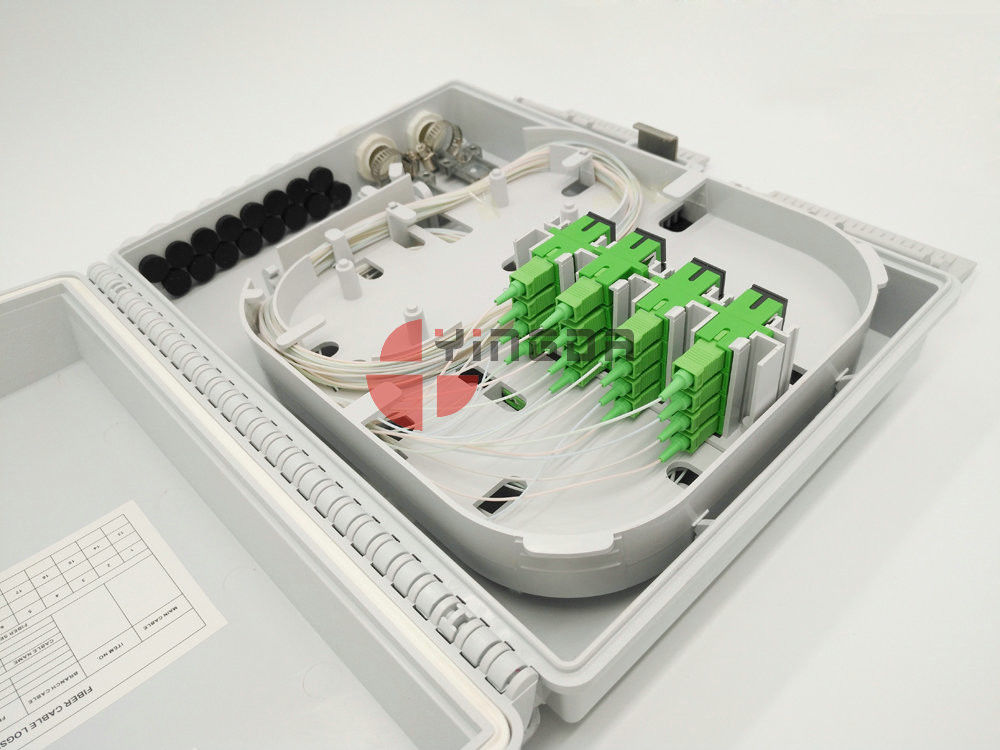

The splitter box can accommodate max. 16pcs SC simplex adapters.

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 624 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 7

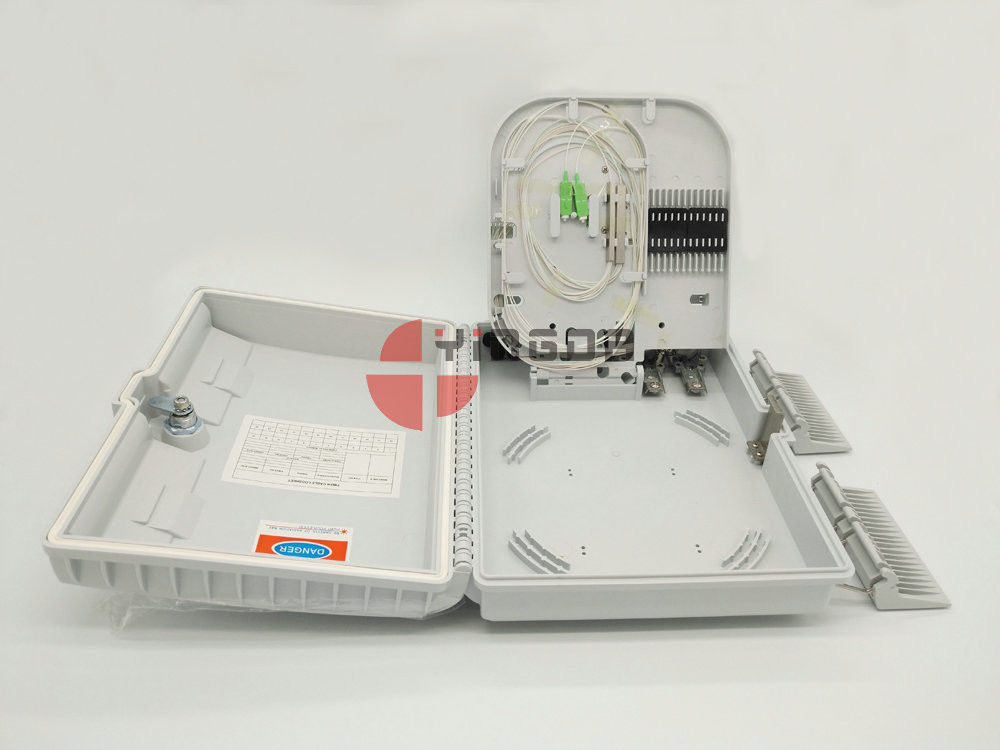

The adapter plate can be flipped-up like following pictures, one side is for adapter installation, the other side is for splicing fibers.

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 824 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 9



More details



1. Port and seal buckles.

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 1024 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 11



2.The key lock.

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 1224 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 13

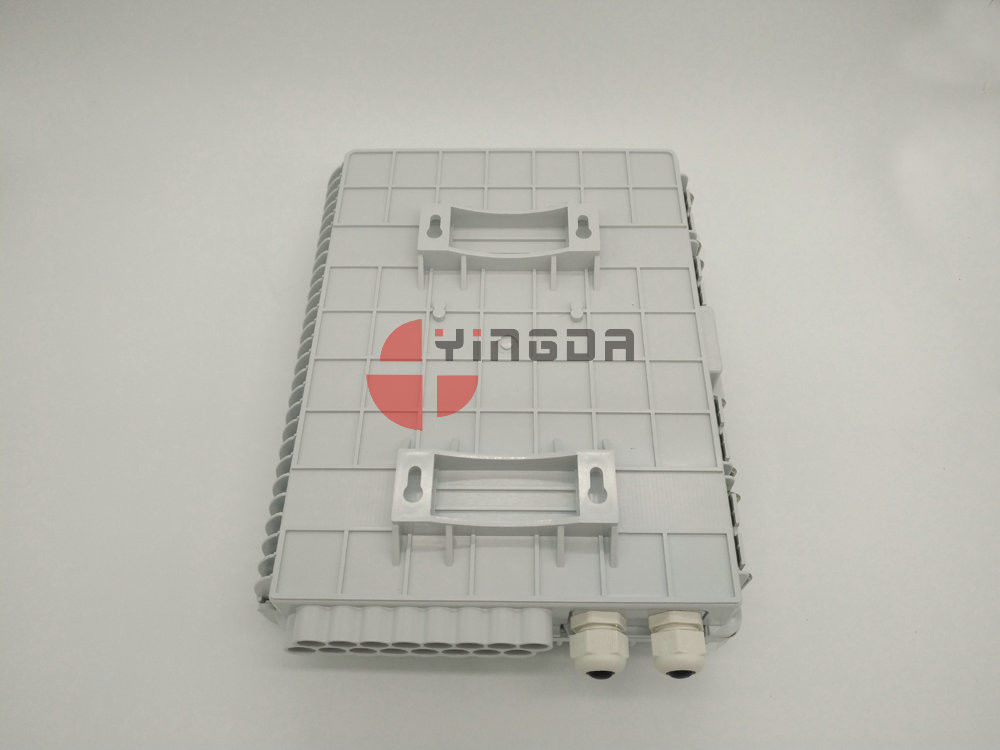

3. Cover and back. The back is designed to use pole mounted and wall mounted.

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 1424 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 15



4.Accessories and packing. 1pc/box, 10pcs/carton box.

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 1624 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 17

24 Fibers Fibre Termination Box Pole Mounting Fiber Optic Junction Box 18



Order information



Model Fiber count PLC split Adapter type Adapter qty Body color Cable port
FDB0216G

01=1fiber

02=2fibers

...

16=16fibers

102=1x2

104=1x4

108=1x8

116=1x16

SCA=SC/APC

SCU=SC/UPC

LCA=LC/APC

LCU=LC/UPC

01=1pc

02=2pcs

03=3pcs

...

16=16pcs

B=Black

W=white

G=gray

A=cable gland

B=uncut cable
