Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter
Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter

Large Image :  Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter

Product Details:
Place of Origin: china
Brand Name: yingda
Certification: ISO,SGS
Model Number: FDB0216A
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Packaging Details: 1pc in a box, 10 pcs per carton box
Delivery Time: 6days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 5000pcs/month

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter

Description
Material: ABS, PC Color: White Or Black
Ftth Drop Cable: 16 Pcs Cable Ports: 2in 16out
Plc Splitter: 1x2, 1x4,1x8,1x16 Adapter: SC, LC Duplex
Max Splicing: 24 Fibers Application: Wall Or Pole Mounting
High Light:

fiber optic closure

,

optical distribution box



Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter





Model: FDB0216A



Fiber Optic Termination Box provides a high density wall mounted solution for next generation networks,

which aims to provide and manage maximum numbers of fiber termination in a limited space.

It is normally installed in the way of wall mounting or pole mounting.





Application

  • Telecommunication Networks
  • WAN,LAN ,CATV Networks
  • Data communications Networks
  • Fiber Optic FTTH access network



Box drawing

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 0



Features

  1. Box is made of high impact plastic
  2. Can accommodate 1x8 1x16 micro PLC splitter with SC Connector
  3. Anti-UV, Ultra violet resistant and rainfall resistant.
  4. Wall and pole mounted application
  5. Max. Hold 16pcs SC or LC duplex adapters
  6. 2 pcs un-cut cable port, 16 pcs FTTH drop cable outports
  7. Pre-install SC adapter or micro splitter, pigtails available.



Specifications:



Model Size(W*H*D) Max capacity Adapter qty PLC splitter Color
FDB0216A 260*320*115mm 16fibers 16 x SC 1x2,1x4,1x8,1x16 micro splitter White, black,grey



How to install:

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 1

Packing information:



Model QTY/CTN CTN size N.W/CTN G.W/ CTN
FDB0216A 10pcs 56*36*63cm 1.48 16.5kgs





Real photos show:

for example:

FDB0216 fully load 1x16 PLC Splitter SC/APC connectors 1 meter 900um and SC/APC adapters

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 2

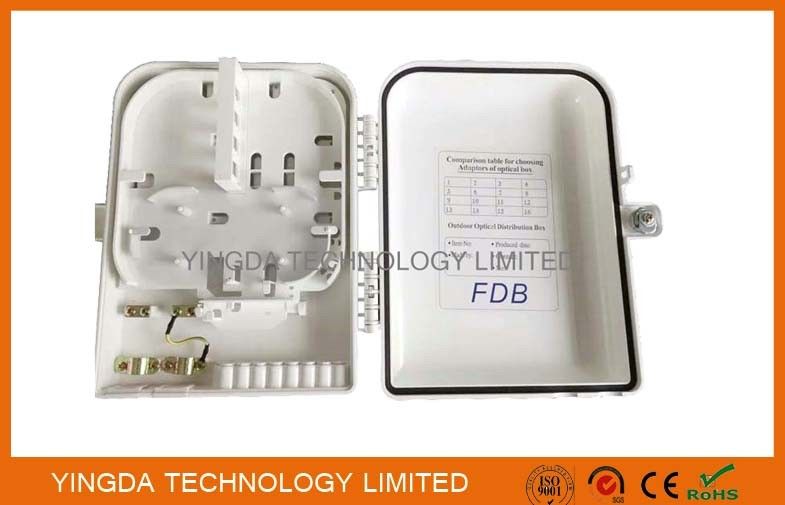

FRONT SIDE INTERNAL VIEW



Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 3



                    FRONT OF SPLICE TRAY INSIDE--- 16pcs Adapter panel module,

                                               This module can take off.





Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 4



               BACK VIEW OF THE SPLICE TRAY --- PLC Splitter splice and distribute



 Adapter panel can changed into LGX module, then can hold 2x 1:8 plc splitter or 1x1:16 spliter, like this:

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 5



Empty box:

Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 6Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 7



1. 2in 16out, can use un-cut cable                    2. adapter panel+ all accessories in 1 bag



Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 8Wall Mounting 16 Port Outdoor Fiber Optic Splitter Box 1x16 PLC Splitter 9

 3. cable port : 2in,16outfor FTTH drop cable   4. cable port: uncut cable or cable gland
