White 8 IP65 Optical Fiber Termination Box Access Terminal FAT

White 8 IP65 Optical Fiber Termination Box Access Terminal FAT

  • High Light

    optical distribution box

    ,

    splitter distribution box

  • Material
    ABS, PC
  • Color
    White
  • Cable Ports
    3 Pieces
  • Dimension
    199*160*46mm
  • Max Capacity
    8 Fiber SC, 16 Fiber LC Duplex
  • PLC Splitter
    1x2, 1x4, 1x8 Micro Splitter
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    FDB0208D
  • Minimum Order Quantity
    100PCS
  • Packaging Details
    1pc/box,40pcs/carton box
  • Delivery Time
    5-8days after payment
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    10000PCS/MONTH

White 8 IP65 Optical Fiber Termination Box Access Terminal FAT

White 8 IP65 Optical Fiber Termination Box Access Terminal FAT



Model: FDB0208D



Fiber Termination Box provides a high density wall mounted solution for next generation networks,

which aims to provide and manage maximum numbers of fiber termination in a limited space. It is

normally installed in the way of wall mounting or pole mounting.



Features:

  1. Flip cover, compact size
  2. Miro mini splitter max. 1x8 SC, 1x16 LC connectors
  3. Water-proof design with IP65 Protection level
  4. 2 ports cable entrance for FTTH drop cable
  5. optical cable underΦ12, soft cable or Φ3 soft cable available
  6. Integrated with splice cassette and cable management system
  7. Manage fibers in a reasonable fiber radius condition
  8. Easy to maintain and extend the capacity
  9. Wall mount or pole mount



Specification



Model FDB0208D
Size(A*B*C) 199*160*46mm
Max capacity SC 8fibers, LC 16fibers, PLC micro splitter 1x8SC or 1x18LC
Material ABS
Color White
Installation size(D*E) 173*136mm
Carton quantity 40pcs
Carton weight 21.5kgs
Carton size 45*38.5*62cm



Termination Box drawing

White 8 IP65 Optical Fiber Termination Box Access Terminal FAT 0White 8 IP65 Optical Fiber Termination Box Access Terminal FAT 1



Fiber Termination Box Full Description

White 8 IP65 Optical Fiber Termination Box Access Terminal FAT 2



Wall-mounted installation



Drill 3 holes over the wall based on the size in table 1,place the expansion bolt Φ5.5*30,place the

box to match up the holes and use bolt to fasten.



More pictures



White 8 IP65 Optical Fiber Termination Box Access Terminal FAT 3White 8 IP65 Optical Fiber Termination Box Access Terminal FAT 4

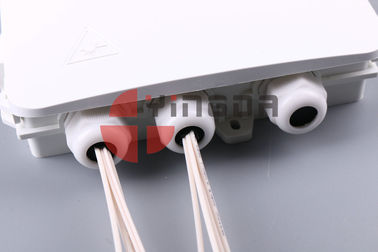

           FDB0208D temrinal box front view                    FDB0208D terminal box back view



White 8 IP65 Optical Fiber Termination Box Access Terminal FAT 5White 8 IP65 Optical Fiber Termination Box Access Terminal FAT 6

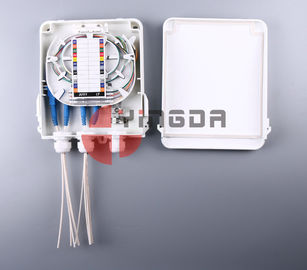

           FDB0208D termination box inside view                FDB0208D termination box side view





Technical performance:



Environmental requirement Main technical data sheet Thunder-proof technical data sheet

Working temperature:-40℃~+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa~106Kp

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:>1000 times

The grounding device is isolated with the cabinet, isolation resistance is less than 1000MΩ/500V(DC);

IR≥1000MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flash over;U≥3000V
