Brand Name: | yinga |
Model Number: | PLCS-MD-232-1323 |
MOQ: | 50pcs |
Delivery Time: | 5-8days |
Payment Terms: | Western Union, T/T, MoneyGram |

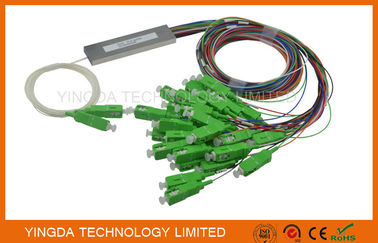

2x32 Micro Fiber Optic PLC Splitter 900um SC / APC Connector LSZH G657A 1M
Features
PLC chip
Steel tube size:60*7*4mm
Mini module size:80×20×6mm
Main application
Install in the cable distribution box, module box, splice closure or the wiring box,etc
For example:
PLC splitter Specifications
1×N PLC Splitter
Parameters |
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
||
Fiber length |
SMF-28e or customer decide |
|||||||
Working temperature (nm) |
1260~1650 |
|||||||
Insertion loss (dB) |
typical |
3.7 |
6.8 |
10.0 |
13.0 |
16.0 |
19.5 |
|
maximum |
4.0 |
7.2 |
10.5 |
13.5 |
16.9 |
21.0 |
||
Uniformity loss (dB) |
maximum |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
Return loss (dB) |
minimum |
50 |
50 |
50 |
50 |
50 |
50 |
|
Polarization dependent loss (dB) |
maximum |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
|
Directivity (dB) |
minimum |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength loss (dB) |
maximum |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.8 |
|
Temperature loss (-40~+85℃) |
maximum |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
1.0 |
|
Working temperature (℃) |
-40~+85 |
|||||||
Storage temperature (℃) |
-40~+85 |
(Measured at room temperature and excludes connector loss)
2×NPLC Splitter
Parameters |
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
|
Fiber length |
SMF-28e or customer decide |
||||||
Working temperature (nm) |
1260~1650 |
||||||
Insertion loss (dB) |
typical |
3.8 |
7.4 |
10.8 |
14.2 |
17.0 |
21.0 |
maximum |
4.2 |
7.8 |
11.2 |
14.6 |
17.5 |
21.5 |
|
Uniformity loss (dB) |
maximum |
1.0 |
1.4 |
1.5 |
2.0 |
2.5 |
2.5 |
Return loss (dB) |
minimum |
50 |
50 |
50 |
50 |
50 |
50 |
Polarization dependent loss (dB) |
maximum |
0.2 |
0.2 |
0.4 |
0.4 |
0.4 |
0.5 |
Directivity (dB) |
minimum |
55 |
55 |
55 |
55 |
55 |
55 |
Wavelength loss (dB) |
maximum |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1.0 |
Temperature loss (-40~+85℃) |
maximum |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
1.0 |
Working temperature (℃) |
-40~+85 |
||||||
Storage temperature (℃) |
-40~+85 |
(Measured at room temperature and excludes connector loss)
Notes:
Package specifications and dimensions
1×N Splitter
item |
Split ratio |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
Steel tube |
L*W*D |
40×4×4 |
40×4×4 |
50×7×4 |
50×7×4 |
60×12×4 |
Mciro module |
50×7×4 |
60×12×4 |
80×12×4 |
80×20×6 |
100×40×6 |
|
ABS module |
100×80×10 |
100×80×10 |
100×80×10 |
140×114×18 |
140×114×18 |
2×N Splitter
item |
Split ratio |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
Steel tube |
L*W*D |
50×4×4 |
50×4×4 |
60×7×4 |
60×7×4 |
60×12×4 |
Mciro module |
60×7×4 |
80×12×4 |
80×12×4 |
80×20×6 |
100×40×6 |
|
ABS module |
100×80×10 |
100×80×10 |
100×80×10 |
140×114×18 |
140×114×18 |
Fiber patch cord and other requirements
Parameters |
Value |
||
fiber |
type |
G657A1 |
|
Outer diameter |
mm |
0.9 |
|
Fibe length |
meter |
1 |
|
Fiber coating |
PVC/LZSH |
LSZH |
|
Sleeve(material,color,length) |
Input |
0.25 Hytrel |
|
output |
0.25 Hytrel |
||
Connectors |
FC/SC/LC/ST, UPC or APC |
||
High and low temperature cycle |
10 cycles |
Product package:
WORKSHOPS
YINGDA TECHNOLOGY LIMITED was established in 2008, is located in China's electronics manufacturing
center Shenzhen, adjacent to Hong Kong and only 40 minutes away from Shenzhen airport. The convenie
nt transportation, rapid logistics can provide more efficient service to customers around the world.
Our company produce and export mainly terminall box, splice closure,fiber optic patchcord, planar optical
waveguide PLC splitter, FBT otpical coupler, WDM, optical fiber communication, optical active / passive
devices. Our products have been sold to more than 10 foreign countries and regions, mainly in South
America, North America, Europe, and Middle east and other countries and regions. Because our
independent design, independent production, the independent quality control, self export ensures better
and faster more service. Uphold the high quality products and services, we absolutely will not reduce the
product standards to participate in the price competition. So we believe that YINGDA TECHNOLOGY
LIMITED is your best choice.
Quality assurance
Products standards:
1. The people's Republic of China communication industry standard: planar optical waveguide integrated
optical path devices - Part 1: Based on planar lightwave circuit (PLC) optical power splitter YD/T200.1
-2009;
2. The people's Republic of China communication industry standard:: fiber optic connector YD/T 1272-
2007 ;
3. Related reliability standards: Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, Telcordia GR-326
-CORE.
Product test methods and technology:
Test equipment - Agilent equipment. For all products test before shipping, ensure product parameters in
line with industry standards and customer requirements; temperature cycle test box, drying oven, high
temperature and high humidity test box and reliability environmental test equipment, and we collaborate
with National Laboratory, such a rigorous series of reliability verification ensure products meet the
corresponding reliability requirements.
Quality management system:
Quality policy: to meet the needs of customers and continuously improve quality, cost and delivery time,
improve customer satisfaction.
Quality assurance:
From the date of receipt of goods from Party A, one year free replacement, two years in charge of
maintenance. Due to external factors such as man-made damage and equipment exceed warranty
period, maintenance charge according to product manufacturers of products and services charges.
Qualification certification
ISO9001:2008 quality management system certificate
TCL product certificate
Product reliability re-verification principle: every two years to do a complete reliability re-verification.
