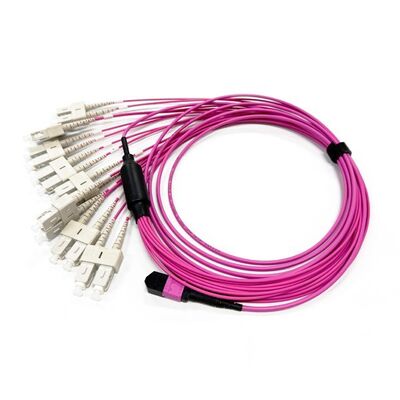

MPO-SC 16Fiber Breakout Fanout Cable OM4 Multimode IL 0.35dB
  • Name
  • Name
  • Name
  • Name

MPO-SC 16Fiber Breakout Fanout Cable OM4 Multimode IL 0.35dB

MOQ: 100
Price: 0.2USD-100USD
Standard Packaging: Carton box
Delivery Period: 5-8 working days
Payment Method: T/T,AliPay,PayPal
Supply Capacity: 1000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
CE, ISO9001
Model Number
MPO
Product Name:
MTP MPO Cable
Cable Jacket:
PVC LSZH
Insertion Loss:
≤0.2dB
Storage Temperature:
-40℃~+85℃
Connector Type:
MTP/MPO
Cable Color:
Aqua
Fiber Count:
8, 12,24
Fiber Grade:
OM3,OM4,OM5
Highlight:

MPO-SC breakout cable OM4 multimode

,

16-fiber fanout cable low insertion loss

,

MTP MPO cable with 0.35dB IL

Product Description
MPO-SC 16Fiber Breakout Fanout Cable OM4 Multimode IL 0.35dB
Product Overview

This MPO fiber optic product features MPO Male to MPO Female connectors and utilizes Multimode 50/125 100GB OM5 fiber. The model is a 48 fibers MPO cable with Type B (Key up, Key Up) polarity and an LSZH jacket. Our MPO patch cable is one of thousands of fiber optic cable assemblies available in-stock and ready to ship.

The cable itself can have 4~144 cores, available in either single mode or multi-mode configurations. Single-mode fiber options include G652D, G657A1, and G657A2. Multi-mode options include 62.5/125, 10G OM2/OM3/OM4, or bending insensitive 10G multi-mode cable.

Yingda has strong product design and manufacturing capabilities for MPO/MTP products, providing customized solutions to meet specific customer requirements while guaranteeing excellent performance and reliability.

Key Features
  • High Speed and High Density: Premium quality multimode fiber provides secure and reliable connections with low insertion loss (IL≤0.35dB) and high return loss (RL≥60dB), supporting 10G/40G/100G applications
  • Versatile Applications: Suitable for residential areas, industrial parks, commercial buildings, large data centers, dense cabling systems, fiber optic communication systems, cable television networks, telecommunication networks, LAN, GPON/EPON applications, wide area networks, and FTTX
  • Safety LSZH Jacket: Low smoke zero halogen jacket material (coefficient of friction μ<0.2) offers fire resistance with minimal smoke and toxic fume production, operating reliably within -20°C to +70°C temperature range
  • Fast Delivery: Available in-stock and ready to ship with lead times of approximately 2-3 working days
MPO Connectors Optical Parameters
Parameter SM Standard SM Elite MM Standard MM Elite
Insertion loss (dB) ≤0.7 ≤0.35 ≤0.7 ≤0.35
Return loss (dB) ≥60 ≥20

Durability (dB) ≤0.2, 500 times mating
Tensile strength (kgf) 10
Working temperature (°C) -20 to +70
Measurement wavelength (nm) 1310 850

Standards

IEC61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5(FOCIS5), structured cabling per TIA-568-C, 10G fiber channel, 40G and 100G IEEE 802.3, etc

Geometry Parameters
Item X-axis Y-axis
Radius of curvature (mm) 500 (Min) 50 (Min)
Polishing angle 0-0.2 8-0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjacent fiber height error (nm) -300 +300
Avg. fiber height error (nm) -300 +300
Central concave (nm) 300
LC/SC/FC Fiber Connectors
Parameter Single Mode Multimode
Connector polishing PC / APC PC
Insertion loss (dB) ≤0.3
Return loss (dB) ≥50 / ≥60 ≥35
Repeatability (dB) ≤0.2, 1000 times mating
Working temperature (°C) -40 to +85
Measurement wavelength (nm) 1310 850
MPO MTP Trunk Cable Polarity Types
MPO Patch cord Full crossed type A straight polarity diagram

Type A: Straight

MPO Patch cord Full crossed type B full crossed polarity diagram

Type B: Full Crossed

MPO Patch cord Full crossed type C pairwise crossed polarity diagram

Type C: Pairwise Crossed

MPO Cable Product Details
MTP 48cores cable
More types are available

MPO-SC 16Fiber Breakout Fanout Cable OM4 Multimode IL 0.35dB   MPO-SC 16Fiber Breakout Fanout Cable OM4 Multimode IL 0.35dB MPO-SC 16Fiber Breakout Fanout Cable OM4 Multimode IL 0.35dB  MPO-SC 16Fiber Breakout Fanout Cable OM4 Multimode IL 0.35dB

      MPO-LC OM4 12Cores                           MPO-FC OM3 8Cores                  MPO-FC 16Cores                      MPO-ST  SM 12Cores Elite


12 Cores Fiber Optic Cable
Micro 12F Round fiber optic cable 3.0mm for MPO applications

There is made of 3.0mm Round LSZH Cable.

YINGDA'S MPO Patch Cord Workshop
YINGDA MPO cable production workshop overview MPO cable quality control inspection process

YINGDA MPO cable production teams adopt multiple tests to strictly control quality for clients. 100% End-Face inspection and polarity test.
