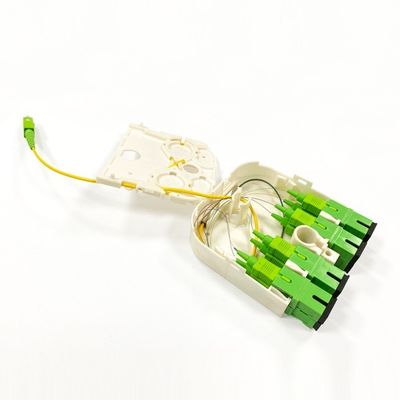

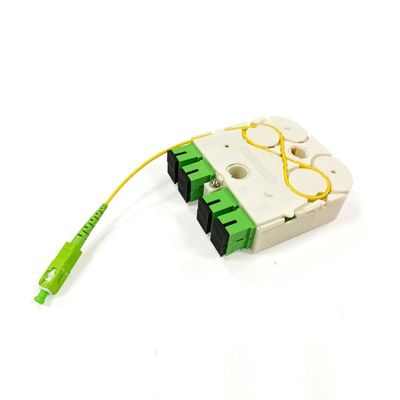

Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions

Name: Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YDPLC-LGX-208LU
Price: 2.10 USD
Availability: InStock

Brand Name:	yingda
Model Number:	YDPLC-LGX-208LU
MOQ:	1pc
Price:	1.1USD-4.58USD
Delivery Time:	5DAYS
Payment Terms:	T/T,Western Union,MoneyGram,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Color:

Gray

Cable Port:

4ports For Outlet Cable

Splitter Type:

1x16 2x16 Fiber Potic Splitter

Fiber Type:

Single Mode 9/125um

Loose Tube:

0.9mm Diameter White

Connector:

SC LC

Packaging Details:

1PC/PLASTIC BAG, 40pcs/carton box

Product Description

The LGX Optical Splitter is a high-performance fiber optic splitter specifically designed to meet the demanding requirements of the Russian market.

Engineered to operate in extreme conditions, this splitter can withstand temperatures as low as -50°C, making it ideal for use in cold winter.

A 1×8 split ratio, this splitter has a customizable shell, with stainless steel nuts for added durability and reliability.

The design allows for the direct input of patch cords, reducing construction costs and simplifying installation. Its superior performance, compact design, and adaptability make it a versatile solution for a wide range of fiber optic network applications.

Specification:

Item	Value
Type	Fiber Optic PLC Splitter
Model Number	1x8
Place of Origin	China
Brand Name	YINGDA
Use	FTTH
Warranty Time	5 years
Fiber Type	G657A1 or Customized
Wave Length	1260-1650nm
Connector Type	SC/APC
Cable Diameter	0.9mm
Insertion Loss(dB)	10.7 with connector
Fiber length	1 m 1.5 m or Customized
Fiber Color	Yellow or colors
Operating temperature	-40℃~85℃
Certification	CE/ROHS/ISO9001

Product details:

Direct patch cord Input design:

Input side with 2.0mm yellow cable, allows patch cords to be directly connected to the splitter, eliminating the need for additional components. Reduces construction and material costs, simplifying installation and maintenance.

Two models for option:

The 1X4 and 1X8 with SC/APC mini cassette PLC splitters are available. The splitter performance as below:

Splitter Performance

Specification	1×4 Splitter	1×8 Splitter
Insertion Loss (IL)	≤7.7dB (With Connector) / ≤7.5dB (Without Connector)	≤10.7dB (With Connector) / ≤10.5dB (Without Connector)
Polarization Dependent Loss (PDL)	≤0.2dB	≤0.2dB
Uniformity	≤0.8dB	≤0.8dB
Directivity	≥55dB	≥55dB
Return Loss (RL)	≥55dB	≥55dB

Application:

1· FTTx
2· Cable television (CATV)
3· Local area networks (LAN)
4· Test equipment
5· Passive optical networks(PON)

YINGDA 'S PLC Splitter production line:

Manufacture Price FTTH 1x8 SC/APC Mini Cassette Fiber Optic PLC Splitter Wave length 1260-1650nm for Custom network solutions 4

1.Advanced production and testing equipment

Professional manufacturer. 100% tested
Full compliance with IS0 9001:2008 quality managemen system
Our company has experienced professional team
Provide reliable solutions and satisfactory services
Warmly services with careful attentions
Can provide your specific inquiry within 24 hours Advanced production and testing equipment.
