Factory price 1M ABS box type fiber optical MPO plc splitter 96core LSZH Multi-mode OM3 no connector

MOQ: 100 pcs
Price: 1.1USD-4.58USD
Standard Packaging: 1pc/ box,80pcs/carton box
Delivery Period: 5-8days after payment
Payment Method: Western Union,T/T,MoneyGram
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO, CE
Model Number
1:8 PLC splitter no connector
Split Ratio:
8X12cores Splitter
Fiber Type:
G657A1
Insertion Loss:
2.2dB / 16.3 DB
Connector:
No Connector
Wavelength:
1260 - 1650 Nm
Tube Dimension:
120*80*18mm
Input And Output Length:
1meter
Cable Type:
Tight Buffer
Cable Color:
White, Blue, Colorful
Cable Diameter:
2.0mm
Highlight:

ABS fiber optic MPO splitter

,

96core LSZH PLC splitter

,

OM3 MPO splitter no connector

Product Description

Factory price 1M ABS box type fiber optical MPO plc splitter LSZH Multi-mode OM3 no connector


Cassette PLC Splitter: Efficient Signal Distribution for Fiber Optic Network

The ABS cassette fiber optic PLC splitter is named so because it comes pre-loaded in a compact cassette module, which simplifies installation and improves overall optical cable management. It typically features one input port and multiple output ports, allowing it to split a single optical fiber signal into several channels. The cassette design of the optical PLC splitter offers space efficiency, making it ideal for installations with limited cabinet space. It neatly fits into the cassette slot, reducing clutter and enabling easy maintenance and future expansion.



Features

Low PDL, Insertion loss and back reflection loss
Compact size,good channel to channel uniformity
High Reliability and Stability
Wide Operating Temperature and operating Wavelength
Excellent Environmental & Mechanical Stability
Conforms with Telcordia GR-1221 and GR-1209 and ROHS
Fiber identification (ribbon cable) conforms to IEC 6030

Application
FTTx (FTTB, FTTH, FTTC) Systems
Passive Optical Networks (PON) Networks
CATV Link
Optical Signal Distribution
Local Area Networks (LAN)
Test Equipment


Fiber optic splitter 1:8 Optical Specification

Split ratio 1×2 1×4 1×8 1×16 1×32 1×64 1×128 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260-1650nm
Fiber Type G657A1 or customer specified





Insertion Loss (dB)S Grade 4.2 7.6 10.7 14 17.2 20.8 24 4.4 8 11 14.6 17.8 21
Insertion Loss (dB) P Grade 4 7.4 10.5 13.8 17 20.4 23.7 4.2 7.7 10.8 14.1 17.4 20.7
Loss Uniformity(dB) 0.6 0.8 0.8 1.0 2.0 2.0 2.0 0.8 1.0 1.2 1.5 1.8 2.0
PDL(dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.5 0.2 0.2 0.3 0.3 0.3 0.4
Return Loss (dB) 55
Directivity (dB) 55
Wavelength Dependent Loss(dB) 0.6 0.8 0.8 1.0 1.5 2.0 0.2 0.8 1.0 1.2 1.5 1.8 2.0
Operating Temperature -40- +85℃

Note: All the data above does not include connectors.

UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB


Actually picture:

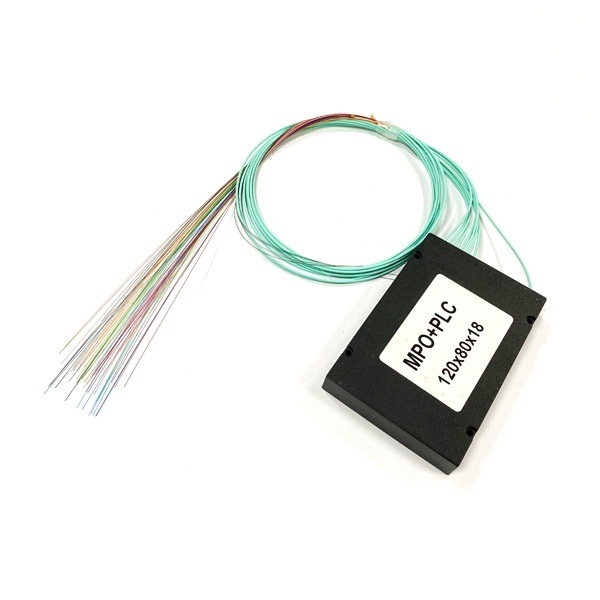

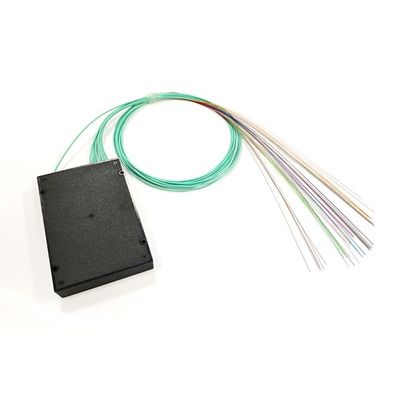

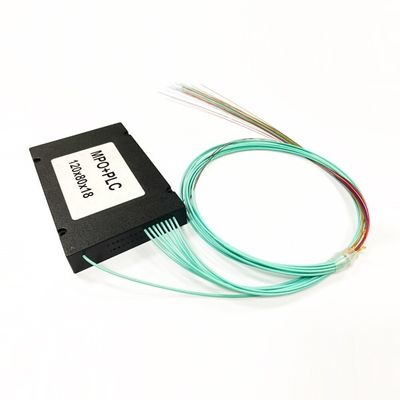

Without any connector

Factory price 1M ABS box type fiber optical MPO plc splitter 96core LSZH Multi-mode OM3 no connector 0Factory price 1M ABS box type fiber optical MPO plc splitter 96core LSZH Multi-mode OM3 no connector 1

ABS Box Size:120*80*18mm, within 2.0mm cable for inlet port and out port.


With SC /LC connector

Factory price 1M ABS box type fiber optical MPO plc splitter 96core LSZH Multi-mode OM3 no connector 2Factory price 1M ABS box type fiber optical MPO plc splitter 96core LSZH Multi-mode OM3 no connector 3

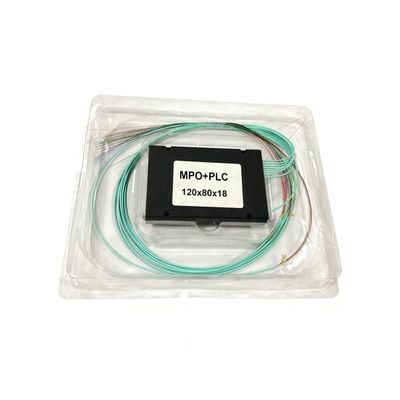

Packaging & Delivery

Factory price 1M ABS box type fiber optical MPO plc splitter 96core LSZH Multi-mode OM3 no connector 4


Other Fiber optic PLC splitter products:

Factory price 1M ABS box type fiber optical MPO plc splitter 96core LSZH Multi-mode OM3 no connector 5  Factory price 1M ABS box type fiber optical MPO plc splitter 96core LSZH Multi-mode OM3 no connector 6

                 Unbalance 1X9 PLC Splitter                                                        1x8 PLC Splitter


  Factory price 1M ABS box type fiber optical MPO plc splitter 96core LSZH Multi-mode OM3 no connector 7 Factory price 1M ABS box type fiber optical MPO plc splitter 96core LSZH Multi-mode OM3 no connector 8

                       ABS box splitter 1X2                                              LGX Modular 1x16 splitter box
