Design for Korean Fiber Optic Splitter With SC UPC Connector Singlemode Dual Window FBT Coupler PLC Splitter
  • name
  • name
  • name
  • name

Design for Korean Fiber Optic Splitter With SC UPC Connector Singlemode Dual Window FBT Coupler PLC Splitter

MOQ: 100 pcs
Price: 1.1USD-4.58USD
Standard Packaging: 1pc/ box,80pcs/carton box
Delivery Period: 5-8days after payment
Payment Method: Western Union,T/T,MoneyGram
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO, CE
Model Number
1:2 FBT splitter
Split Ratio:
1x2 Optial Splitter
Fiber Type:
G657A1
Insertion Loss:
2.2dB - 16.3 DB
Connector:
SC UPC Connector
Wavelength:
1260 - 1650 Nm
PDL(Max.):
0.3dB
Standard:
Telcordia GR-1221 And GR-1209
Tube Dimension:
60*7*4mm
Highlight:

Korean fiber optic splitter SC UPC

,

single mode dual window FBT coupler

,

PLC splitter with SC connector

Product Description



Quick Deatails of 1X9 Fibra Optica PLC Splitter



Optical splitter is one of themost component in the FTTH netowrl. In addition to the conventional 1xN/2XN series splitter, as user’s requirements for the network change, demand for 1x3 1x6 1x5 1x9 1x12 1x24 single mode and multi mode splitters are increasing,and they can better meet the market demand for special light splitting ratio. The predecessor of this 1x9 Splitter is FBT 1X2 fused unbalanced splitter (coupler) and 1x8 PLC balanced splitter . In contrast, the large scale popularization of the 1x9 splitter chip greatly reduces the cost of the related network wiring, but ensure better long term optical performance than fusion couplers.



Fiber Optic splitter Features

Characteristics:
Low insertion loss and excess loss
Low polarization dependence
High optical return loss
Better uniformity
Environmental Stability and Reliability
Small package size

Application:
FTTH, LAN, PON and Optical CATV
Local ring net
Optical fiber communication system
Optical fiber test equipment
Optical fiber sensor


1x3 fbt Splitter Specification


Inline Dual Window FBT Coupler Optical-SC/PC-SC/PC-1310/1550nm-0.6M
Lead mark
Wavelength
Insertion Loss(dB)
PDL(dB)
Directivity(dB)
Out1

1310
3.76
0.09
>50
Out2
3.67
0.14
Out1

1550
3.51
0.19
Out2
3.73
0.14

Note:

1. Specified without connectors

2. Add an additional 0.2dB loss including connectors



Unbalanced optical splitter rate Detail information:

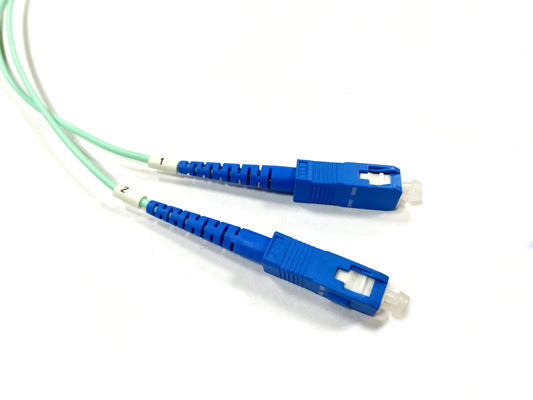

Design for Korean Fiber Optic Splitter With SC UPC Connector Singlemode Dual Window FBT Coupler PLC Splitter 0

1x9 unbalanced splitter use the same steel tube 60*7*4mm as 1x8 splitter, input 1, output 9= 4*2+1pcs fiber array.

Fiber color is colorful, loose tube 900um can be customized, like blue, orange, green ,brown, gray, white, red, black, etc, with number marks to distinguish.

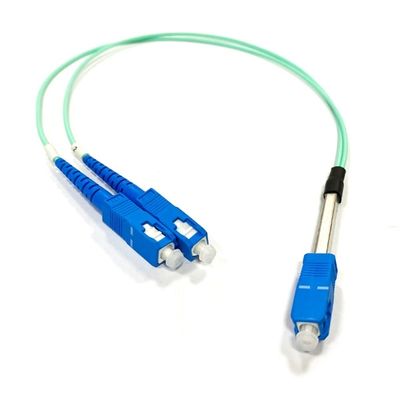

Design for Korean Fiber Optic Splitter With SC UPC Connector Singlemode Dual Window FBT Coupler PLC Splitter 1

In order to distinguish the split ration, use different color like blue to mark, this special chip 1x9 ensure unbalanced split ratio not equal types, which can meet special requirements and flexible optical application, and is widely used in 5G FTTR networks;

Output of the optical splitter can divide into 70/30 80/20 60/40 or 85/15% 4types;

All types of optical connectors can be used, like SC FC LC ST; Polish method: UPC, APC；

Input ouput pigtails length: 0.5meter, 1meter, 1.5meter, etc

GPON Splitter Application

  • Passive optical network (such as EPON, GPON, BPON, FTTX, FTTH, etc.)
  • Supports multiple users to share a single PON interface.

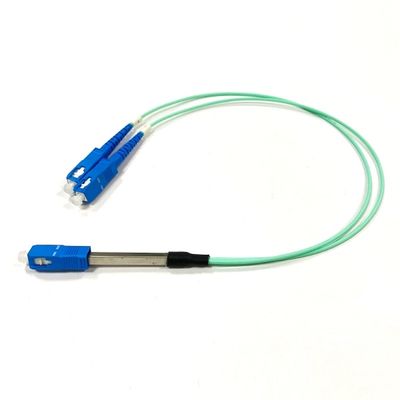

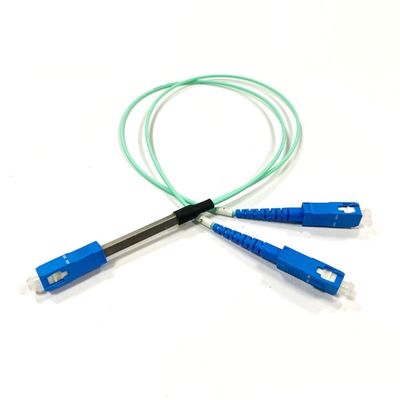

More pictures:

Design for Korean Fiber Optic Splitter With SC UPC Connector Singlemode Dual Window FBT Coupler PLC Splitter 2Design for Korean Fiber Optic Splitter With SC UPC Connector Singlemode Dual Window FBT Coupler PLC Splitter 3
