MPO MTP Connector Fiber Optic Splitter FTTH 8PCS 1x8 2.0mm ABS Cassette Multimode OM3 PLC Splitter 1M

MOQ: 50
Price: $8.50-125
Standard Packaging: Individual box or according to customer's request
Delivery Period: 5-8working days
Payment Method: T/T,L/C,Western Union
Supply Capacity: 50000set per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
CE,ISO
Model Number
8x1:8 PLC Splitter ABS
Packing Size:
100*80*18mm
Pigtail Length:
1m, 1.5m Or Customized
Operation Wavelength:
1260 ~ 1650nm
Applications:
FTTH, PON, CATV, FTTx, LAN, WAN, Test Equipment
Return Loss:
>50dB
Type:
Fiber Splitter
Model:
1x8 PLC Splitter MPO
Ip Grade:
IP55
Adopt:
Fiber To The Home
Pigtail Color:
Yellow
Highlight:

MTP fiber optic splitter 1x8

,

ABS cassette PLC splitter

,

OM3 multimode fiber splitter

Product Description

 MPO MTP Connector Fiber Optic Splitter FTTH 8PCS 1x8  2.0mm ABS Cassette Multimode OM3 PLC Splitter 1M


The ABS cassette fiber optic PLC splitter is named so because it comes pre-loaded in a compact cassette module, which simplifies installation and improves overall optical cable management. It typically features one input port and multiple output ports, allowing it to split a single optical fiber signal into several channels. The cassette design of the optical PLC splitter offers space efficiency, making it ideal for installations with limited cabinet space. It neatly fits into the cassette slot, reducing clutter and enabling easy maintenance and future expansion


Sales points:

  • 1×8 MPO PLC Splitter OM3
  • Input 8 fiber MPO 2mm pigtails yellow
  • Output 8 pcs 8 fiber MPO 2mm pigtails yellow
  • ABS Module, Size 100*80*18mm



Features

1.Low Insertion loss and Low PDL

2.Uniform power splitting

3.High reliability

4.Excellent environmental stability

5.Compact size and various package




Specification for ABS 1x8 Optical Splitter

Type
1x8
Fiber Type
Singlemode G657A2
Connector Type
MPO/APC or MTP/APC
SC/APC,SC/UPC,LC/APC,LC/UPC
Operating Wavelength
1260nm ~ 1650nm
Insertion Loss(dB)
Typical
10.5
Maximum
10.7
Loss Uniformity(dB)
0.8
Polariation Dependent Loss(dB)
0.3
Directivity(dB) Mini
50
Return Loss(dB) Mini
50
OperatingTemperature(℃)
-40 to +85
Storage Temperature(℃)
-40 to +85
Input/ Out Fiber Length
Customer requirements
Input/output cable diameter
2.0mm  loose tube
Packing way
ABS Box (100*80*18mm)

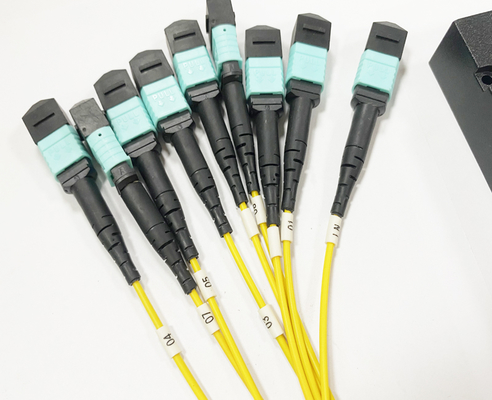

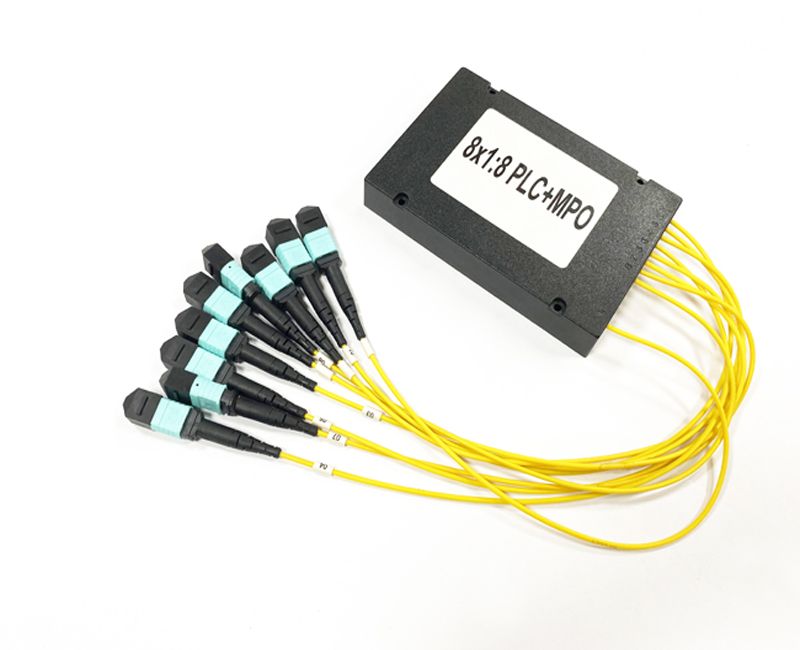

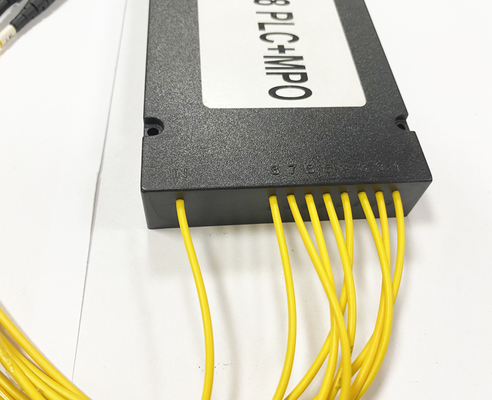

Actual Pictures:

MPO MTP Connector Fiber Optic Splitter FTTH 8PCS 1x8 2.0mm ABS Cassette Multimode OM3 PLC Splitter 1M 0 MPO MTP Connector Fiber Optic Splitter FTTH 8PCS 1x8 2.0mm ABS Cassette Multimode OM3 PLC Splitter 1M 1
