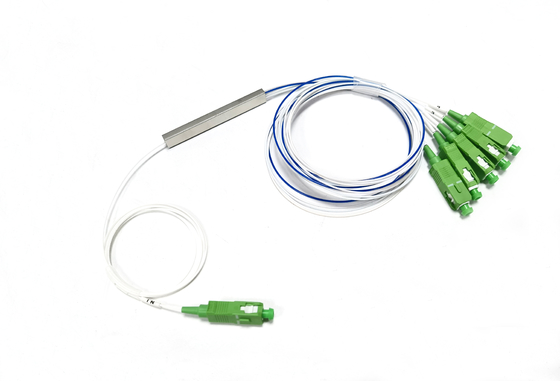

Factory Price FTTH Unbalanced 1*5 Mini Type PLC Splitter SC Connector  Fiber Optic Telecom Power for Optical Network Systems

Quick Deatails of 1X5 Fibra Optica PLC Splitter

*20/80, 33/67, 50/50, 75/25, or 95/5 Split Ratios Available

*Low Insertion Loss and Low Polarization Dependent Loss

*Fully Passive Optical Branching Device

*Compact Housing Fits Racks, Wall-mounted Boxes, Optical Distribution Boxes, etc.

*1260~1650nm Broad Operating Wavelengths

*G.657A1 Bend Insensitive Fibers for Low Bending Loss

*Commonly Found in PON, Datacom, LAN, CATV, LCP, FTTx and More Application

Optical splitter is one of themost component in the FTTH netowrl. In addition to the conventional 1xN/2XN series splitter, as user’s requirements for the network change, demand for 1x3 1x6 1x5 1x9 1x12 1x24 single mode and multi mode splitters are increasing,and they can better meet the market demand for special light splitting ratio. The predecessor of this 1x9 Splitter is FBT 1X2 fused unbalanced splitter (coupler) and 1x8 PLC balanced splitter . In contrast, the large scale popularization of the 1x9 splitter chip greatly reduces the cost of the related network wiring, but ensure better long term optical performance than fusion couplers.

1x5 Splitter Specification

Note:

1. Specified without connectors

2. Add an additional 0.2dB loss including connectors

Unbalanced optical splitter rate Detail information:

1x9 unbalanced splitter use the same steel tube 60*7*4mm as 1x4 splitter, input 1, output 5= 2*2+1pcs fiber array.

Fiber color is colorful or white, loose tube 900um can be customized, like blue, orange, green ,brown, gray,  etc, with number marks to distinguish.

In order to distinguish the split ration, use different color like blue to mark, this special chip 1x5 ensure unbalanced split ratio not equal types, which can meet special requirements and flexible optical application, and is widely used in 5G FTTR networks;

Output of the optical splitter can divide into 70/30 80/20 60/40 or 85/15% 4types;

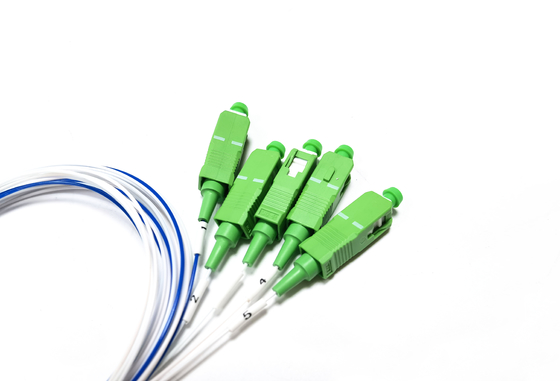

All types of optical connectors can be used, like SC FC LC ST; Polish method: UPC, APC；

Input ouput pigtails length: 0.5meter, 1meter, 1.5meter, etc

GPON Splitter Application

• Passive optical network (such as EPON, GPON, BPON, FTTX, FTTH, etc.)
• Supports multiple users to share a single PON interface.

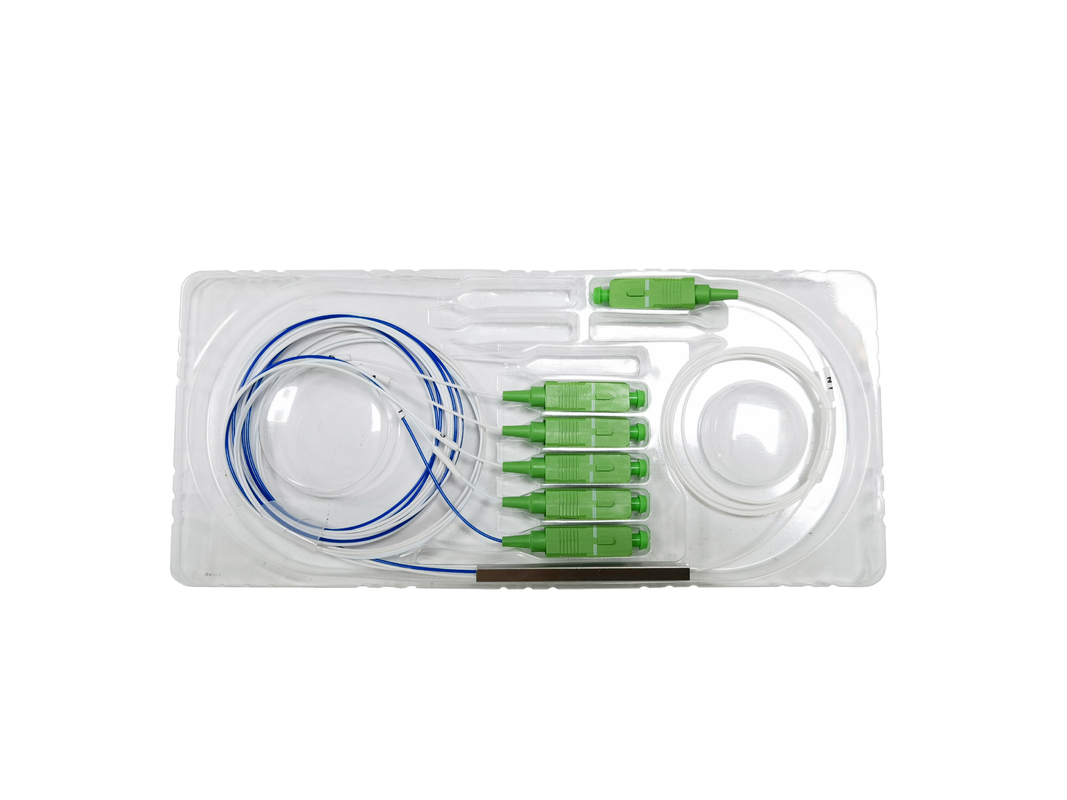

If buy 1:5 optical splitter blockless type only, will pack in blister box with test report. The tube, connectors or cables will be fixed in place in blister box with good protection.

Pre-terminated with connectors and assembly in optical nap box or distribution box is acceptable at factory before delivery.

Frequently work with termination fiber box
