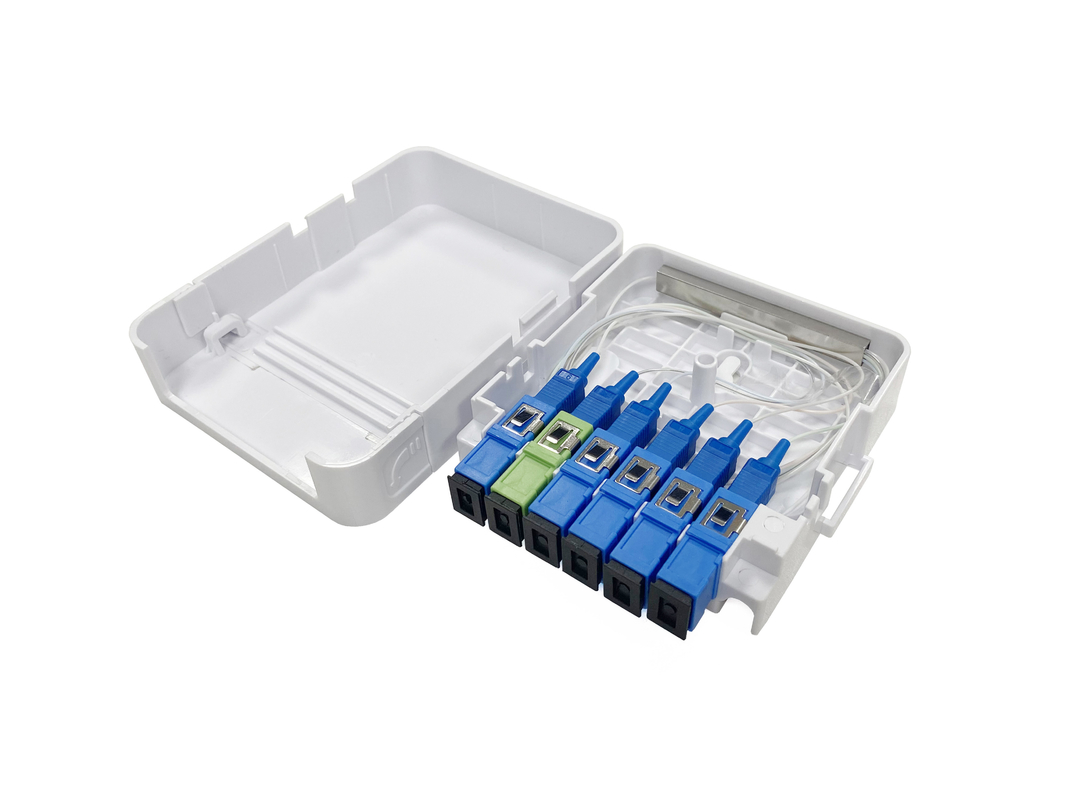

Fiber Optic Termination Box with 1X5 Splitter for FTTH Home and Outdoor Wall-Mounted

Name: Fiber Optic Termination Box with 1X5 Splitter for FTTH Home and Outdoor Wall-Mounted
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FTB106A
Price: 2.18 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	FTB106A
MOQ:	100PCS
Price:	0.18USD-4.29USD
Delivery Time:	5-8 working days
Payment Terms:	Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Capacity:

5cores Single Fiber Bunchy

Cable Inport:

1PCS

Dimension:

86*115*22mm

Load With:

1*5 PLC Splitter

Material:

ABS

Color:

White

Application:

Fiber To The Home FTTH Or Indoor Outdoor Use

Adapter:

6 Pcs SC Simplex Adapter, LC Duplex Adapter

Cable Output:

7-10mm Or 2.0*3.0mm FTTH Drop Cable

Packaging Details:

1 pc / box, 60 pcs / carton shipping box

Supply Ability:

100000 pcs / month

Product Description

YINGDA Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability,wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

FTB106A (Indoor Optical Socket) is a passive optical device for connecting ONTs and home information panels, ATB Installed indoors, provides optical fiber sockets, and supports wall-mounted installation.

Fiber To The Home, FTTH is a transmission method for optical fiber communication. This box directly connect the fiber to the subscriber's home (user desired place). The optical fiber communication mode and strategy is different with FTTN, FTTC, HFC (Hybrid Fiber Coaxial) which are all depend on metal wires including twisted pair and coaxial cable.FTTH is used as the last one kilometer information transmission.

Features

Wall-mounted and rack mounted application
Max capacity 5fibers
Environmental Temperature:－25℃～40℃;
Fiber to the Home (FTTH) home and outdoor use
Drop cable 2*3.0mm figure-8 FRP LSZH and fast field installation connector install
With rotated transparent cover, port vertically downward to avoid causing personal injury.

Specifications

Operating Wavelength (nm)	1260~1650
Split Ratio	1*5
Fiber Type	G657A1
Insertion Loss (dB) (S/P Grade)	Max 2.2
Loss Uniformity (dB)	0.8
Return Loss (dB) (S/P Grade)	50/55
Polarization Dependent Loss(dB)	0.2
Directivity (dB)	55
Wavelength Dependent Loss(dB)	0.3
Temperature Stability (-40~85 °C)(dB)	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Box Dimension (mm) (L×W×H)	8611522mm

More pictures

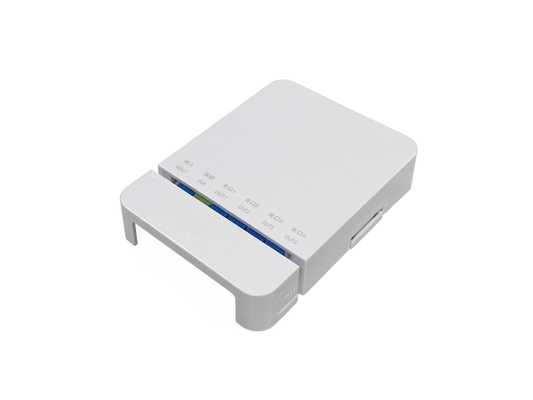

box top view box back view

Fiber Optic Termination Box with 1X5 Splitter for FTTH Home and Outdoor Wall-Mounted 0

Fiber Optic Termination Box with 1X5 Splitter for FTTH Home and Outdoor Wall-Mounted 4

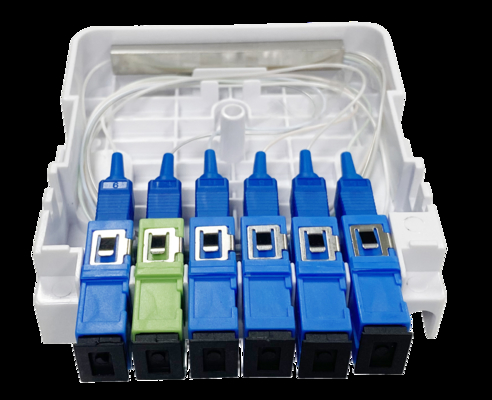

1x fiber tray have enough space for fiber optical cable routing and storage.
there is a place to fix the steel tube which can use PLC splitter.
