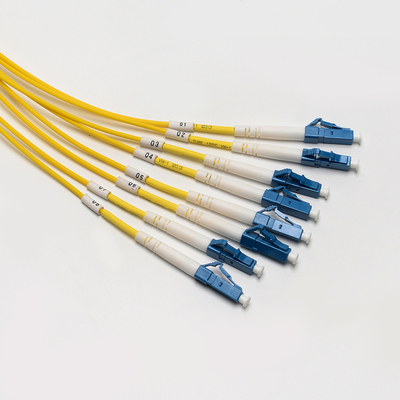

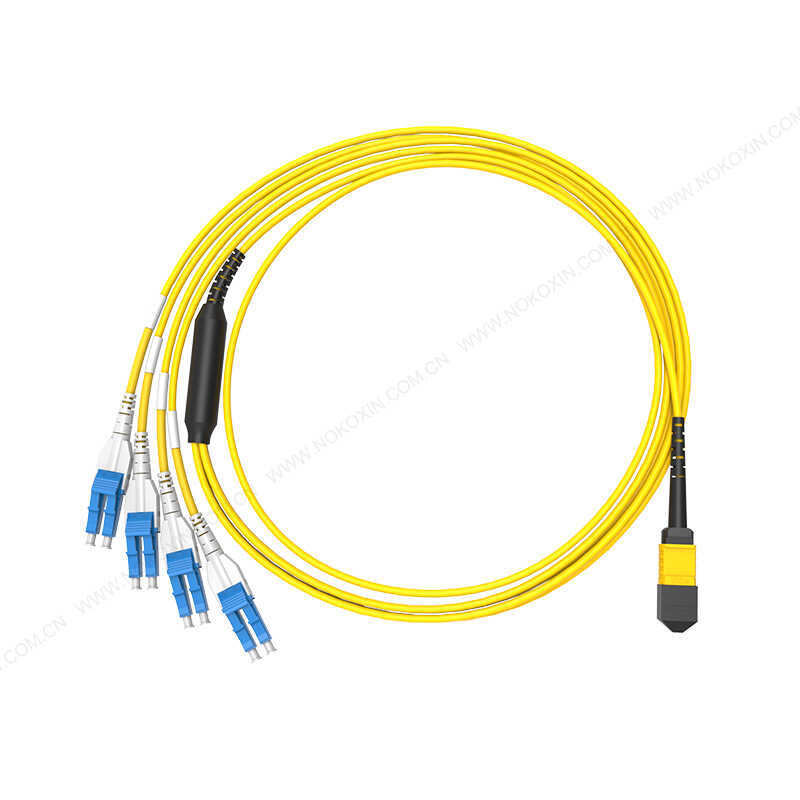

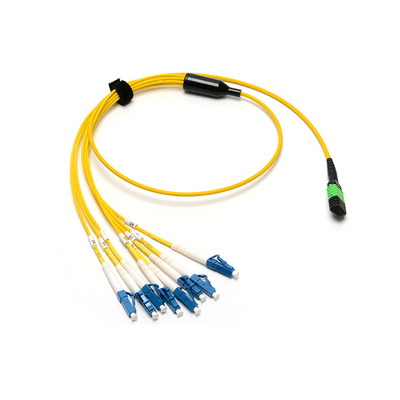

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network

MOQ: 100
Price: 0.2USD-100USD

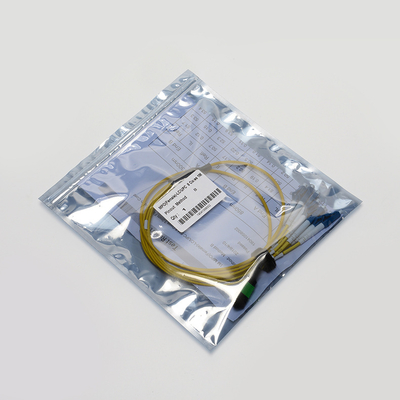

Standard Packaging: Carton box
Delivery Period: 5-8 working days
Payment Method: T/T,AliPay,PayPal
Supply Capacity: 1000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
CE, ISO9001
Model Number
MPO-LC 8cores Elite
Product Name:
MTP MPO Cable
Cable Jacket:
PVC LSZH
Insertion Loss:
≤0.35dB Elite
Storage Temperature:
-40℃~+85℃
Connector Type:
MTP/MPO
Cable Color:
Yellow
Fiber Count:
8, 12,24
Fiber Grade:
SM,OM3,OM4,OM5
Highlight:

8 cores MTP MPO breakout cable

,

female to LC duplex patch cord

,

MTP MPO cable for FTTH network

Product Description

MPO Cable Description


MPO/MTP ribbon and trunk mulit-core cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost.





MTP/MPO is used to interconnect cassettes, panels, or fan outs, it offered in fiber types in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged micro cables structure. The compact cable optimize cable way use and improve airflow.





These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion for demanding high speed networks where power budgets are critical.


Feature


【High Speed and High Density】This mpo fiber optic cable features premium quality multimode fiber,mpo om5 cables provides a secure and reliable connection,low insertion loss(IL≤0.35dB) and high return loss(RL≥60dB),support 10G/40G/100gigabit


【 MPO Breakout Cable Application】Residential area,industrial park room,commercial building optical signal connection,large data centers,building dense cabling system,fiber optic communication system,cable television network,telecommunication network LAN,GPON/EPON applications,wide area network,fttx


【Safety LSZH Jacket Multimode Fiber 】Our fiber patch cable featuring an lszh low smoke zero halogen jacket material(coefficient of frictionμ<0.2),offers fire resistance and minimal smoke and toxic fume production in case of a fire,and reliably operates within a temperature range of -20ºc to +70ºc


【Fast Delivery】Our MPO patch cable is one of thousands of fiber optic cable assemblies available in-stock and ready to ship. Lead time around 2-3 working days.



MPO Connectors Optical Parameters

Insertion loss(dB)
SM Standard
SM Elite
MM Standard
MM Elite
≤0.7
≤0.35
≤0.7
≤0.35
Return loss(dB)
≥60
≥20
Durability (dB)
≤0.2, 500 times mating
Tensile strength(kgf)
10
Working temperature(℃)
-20 ~+70
Measurement wavelength(nm)
1310
850
Standards
IEC61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5(FOCIS5), structured cabling per TIA-568-C, 10G fiber channel, 40G and 100G IEEE 802.3, etc
Housing color
Green connectors+black boot
Yellow connector+black boot
OM1&OM2: beige connector+black boot

OM3&OM4:aqua connector+black boot
OM3&OM4: violet connector+black boot


Geometry parameters

Item X-axis Y-axis
Min Max Min Max
Radius of curvature(mm) 500 – 50 –
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjacent fiber height error (nm) -300 +300
Avg. fiber height error (nm) -300 +300
Central concave (nm) 300


LC/SC/FC Fiber Connectors

Fiber mode Single Mode Multimode
Connector polishing PC APC PC
Insertion loss (dB) ≤0.3

Return loss (dB) ≥50 ≥60 ≥35
Repeatability(dB) ≤0.2, 1000 times mating
Working temperature(℃) -40 ~+85
Measurement wavelength (nm) 1310 850


MPO Structure diagram

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 0


8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 1



More MPO patch cord types for optional

   8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 2
 8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 3

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 4



YINGDA'S MPO Patch Cord Workshop

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 5


8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 6

8 Cores MPO Multimode Elite Breakout Cable Female To LC Duplex MTP MPO Patch Cord For 4G/WiFi/FTTH/3G/GSM/GPRS Network 7

YINGDA MPO cable production teams is adopt multiple tests to strictly control quality for clients. 100% End-Face inspection and polarity test.
