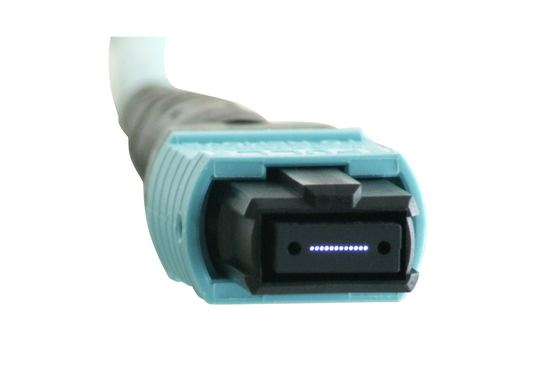

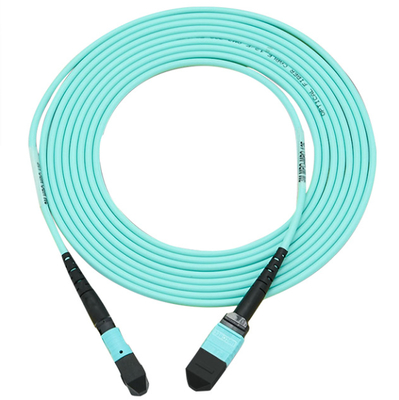

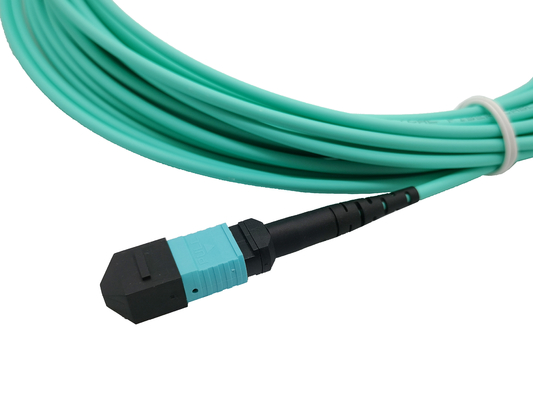

400G MPO Cable MPO to MPO Patch Cord Female OM3 16 Fiber Type B 5M

Name: 400G MPO Cable MPO to MPO Patch Cord Female OM3 16 Fiber Type B 5M
Brand: YINGDA TECHNOLOGY LIMITED
SKU: MPO 16fibers
Price: 49.20 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	MPO 16fibers
MOQ:	100
Price:	0.2USD-100USD
Delivery Time:	5-8 working days
Payment Terms:	T/T,AliPay,PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Product Name:

MTP MPO Cable

Cable Jacket:

PVC LSZH

Insertion Loss:

≤0.2dB

Storage Temperature:

-40℃~+85℃

Connector Type:

MTP/MPO

Cable Color:

Aqua

Fiber Count:

Fiber Grade:

APC,OM3,OM4,OM5

Packaging Details:

Carton box

Supply Ability:

1000 pcs/day

Product Description

400G MPO Cable MPO to MPO Patch Cord Female OM3 16 Fiber Type B 5M

16 Fibers MPO to MPO Patch Cable is good for fast data center or fiber infrastructure implementation. It is used to bridging among MPO cassette or fan out fiber patch cable among HAD and EDA. The high efficient plug and play patch cable structure remarkably reduced the initial installation and daily maintenance cost. Yingda MPO truck cable adopts selected fiber cable and MPO components, with low insertion loss, high return loss, fully meet the requirement of high speed data network.

16 Fibers MTP MPO Connector Specification

Optical Parameters
Insertion loss (dB)	SM standard	SM Elite	MM standard	MM Elite
	≤0.7	≤0.35	≤0.7	≤0.35
Return loss(dB)	≥60		≥6020
Durability (dB)	≤0.2 500times mating
Tensile strength(kgf)	10
Working temperature (℃)	-20 ~+70
Measurement wavelength(nm)	1310		850
Geometry parameters
Item	X-axis		Y-axis
	Min	Max	Min	Max
Radius of cruvature (mm)	500	–	50	–
Polishing angle	0-0.2	0+0.2	8-0.2	8+0.2
Item	Min		Max
Fiber height (nm)	1000		3000
Max fiber height error(nm)	600
Adjacent fiber height error(nm)	-300		+300
Avg. Fiber height error (nm)	-300		+300
Central concave (nm)	300

16 Fibers MPO Fiber Patch Cable Standards:

Ø Meets IEC Standard 61754-7& JIS C5982

Ø Structured cabling per TIA-568-C

16 Fiber MPO Patch Cable Features

Ø Backbone installation

Ø Choice of either both ends with pins (Male type) or both ends without pins (female type)

Ø Fiber counts available in 12/24/36/48/72/96/144 fibers

Ø Round & mini-core cable structure to eliminate bend sensitivity and save space

Ø Available in single mode G 652 D and G 657, multimode OM2, OM3, OM4 fiber

Ø Optional pulling eye design to fit for different installation environment

Parallel Optics

– Optical Internetworking Forum (OIF) Compliant

– Infiniband Compliant

Infiniband

– 10G Fiber Channel Compliant

– 40G,100G, 400G, 800G

– QSFP

16F MPO Truck Cable Application:

Ø Optical switching inter-frame connections

Ø High fiber density card edge access

Ø Array trunk cables

Ø Data center cabling

MPO MTP Truck Cable Polarity 3 Types

400G MPO Cable MPO to MPO Patch Cord Female OM3 16 Fiber Type B 5M 0

400G MPO Cable MPO to MPO Patch Cord Female OM3 16 Fiber Type B 5M 1

Truck Cable Structure:

400G MPO Cable MPO to MPO Patch Cord Female OM3 16 Fiber Type B 5M 3

YINGDA'S MPO Patch Cord Workshop

400G MPO Cable MPO to MPO Patch Cord Female OM3 16 Fiber Type B 5M 5

400G MPO Cable MPO to MPO Patch Cord Female OM3 16 Fiber Type B 5M 6

YINGDA MPO cable production teams is adopt multiple tests to strictly control quality for clients. 100% End-Face inspection and polarity test.
