MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System

Brand Name: YINGDA
Model Number: MPO MTP-OM4
MOQ: 10PCS
Price: 0.04USD-2.15USD
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Color:
Black, Green, Aqua, Purple ,etc
Material:
Plastic PC ABS
Connector:
MPO MTP Adaptor
Fiber Count:
12 Fiber, 24 Fibers
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Packaging Details:
1pc / box
Product Description

MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System

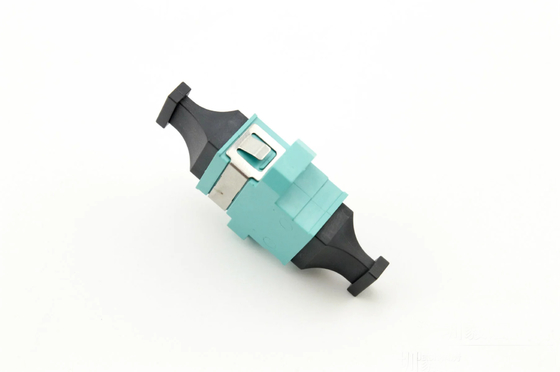

MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System 0


‌MPO Adapter‌ is a high-performance optical fiber connector, mainly used for connecting multi-core optical fibers. It can connect multiple optical fibers at the same time, significantly improving the wiring density and transmission efficiency of optical fiber networks.

MPO adapters are commonly used in high-density optical fiber cabling systems, such as data centers, supercomputing centers, communication system base station,building room fiber distribution (ODF),MPO box, and large enterprise networks.

12/24 core single mode multimode general use MPO/MTP fiber adapter is the manufacturer sell direct, standard delivery time: 2days -3days. Color can be customized according to customer requirements.

Features
  • Good repeat ability, repeat >500times
  • Low insertion loss
  • High reliability
  • Variety of kinds
  • Meet RoSH requirements


Strong compatibility
MPO coupler for multi mode OM3 100G fiber optic cables, 12/24 cores MPO fiber optic cables,with protective dust plug,-40~75℃ operating temperature.
Easy installation
The mpo to mpo fiber optic patch cord coupler key up and key down connections for easy installation.
High repeatability
The mpo to mpo adapter can be plugged and unplugged 500 times, loss change ≤ 0.20dB.


Adapter Structure

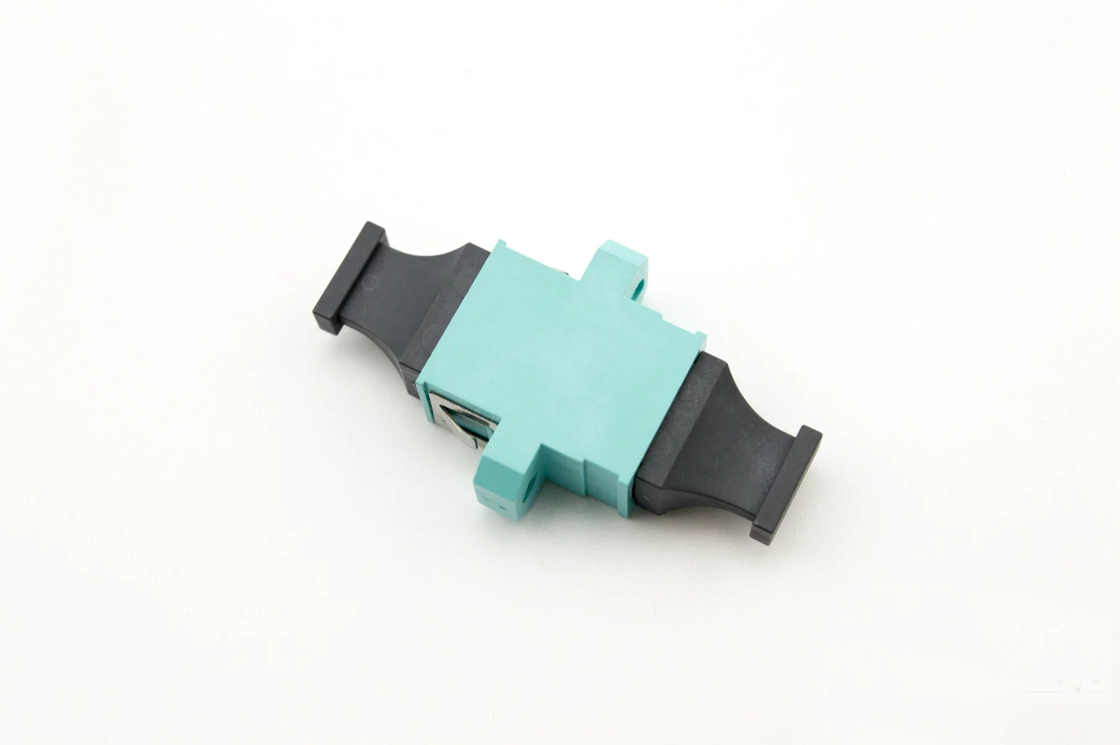

MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System 1

Specification

Connector

MPO / MTP

Color

Black / aqua

Test wavelength

1310nm, 1550nm, 850nm, 1300nm

Insertion loss

typical<0.20dB, maximum< 0.30dB

Repeat ability

≤0.10dB

Interchangeable

≤0.20dB

Plug performance

Plug 500 times, <0.20dB

Adapter material

Plastic PC

Working temperature

0℃ to +70℃

Storage temperature

-40℃ to +85℃

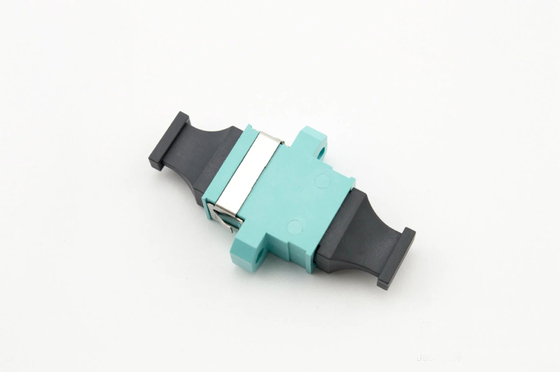

MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System 2
---------------------------------------------------------------------------------------------------------------------------------------------

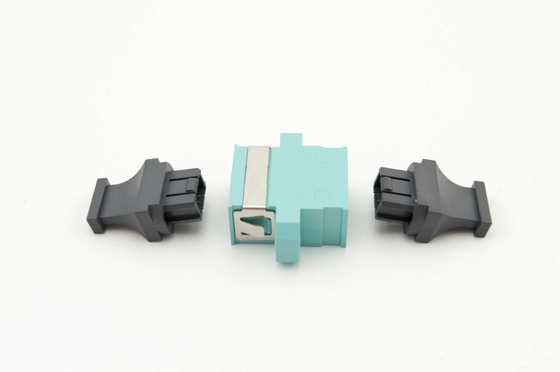

MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System 3
---------------------------------------------------------------------------------------------------------------------------------------------
Application

  • Test instruments
  • The fiber link test
  • The connection between the equipment
  • The connection between the MPO - jumper
  • The cable TV network, metropolitan area network,
  • wide area network, FTTX

MPO Adapter OM3 MM Low Loss Quick Optical Adapter Auqa For Data Center Docking System 4
