Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Termination Box
Created with Pixso. Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity
Name
  • Name
  • Name
  • Name
  • Name
  • Name

Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity

Brand Name: yingda
Model Number: FTB108B
MOQ: 100PCS
Price: 0.18USD-4.29USD
Delivery Time: 1-2 working weeks
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO
Product Name:
Fiber Access Terminal 8cores
Material:
ABS
Color:
White/Grey
Capacity:
8 Cores SC Or LC Duplex
Splitter Qty:
1pc 1*8 Mini Plc Splitter
Adapter Type:
SC Simplex LC Duplex With Flange
Cable Diameter:
In:7-10 Mm, Out:2x5mm
Dimension:
205*110*28mm
OEM:
OK
Application:
Indoor Wall Mount, DIN Rail (45mm Distance)
Packaging Details:
1pc/box,20pcs/carton box
Supply Ability:
20000pcs per month
Highlight:

ftth fiber optic termination box

,

Wall Mount Fiber Optic Termination Box

,

Indoor Fiber Optic Termination Box

Product Description

 Fiber Optic Termination Box FTB108B

FTB108B is used in FTTH termination in residential building and villas to fix and splice with pigtails. It can be installed indoor on wall, and adapt variety of optical interface SC LC ST FC. This terminal box can also load 1x8 splitter on the splice tray, and connected out with drop cables,which ensure splitting, distribution, storage, fusion in a set.





Fiber Box 8cores Indoor FTB108B Features:

  • FTTH indoor wall mount, home or work area
  • Embedded surface frame, easy to install and disassemble
  • Integrated with fiber cassette and cable management rods
  • Max. 8pcs SC/LC duplex adapter, 8 cores fusion splice holder
  • High strength engineering plastic, long lasting
  • Dust-proof, and ROHS proof with IP45 protection level
  • Front 1port cable enter and 8adapter outs, both sides are 4pcs drop cable exit
  • Laser mark, Logo print position reserved on the lid
  • Top cover and the bottom hinge design, and 180℃ flat open



Fiber Optic Termination Kit 8fibers Box Specification:



Model FTB108B
Dimension (A*B*C) 205*110*28mm
Max.Capacity 8 core (single fiber)
Cable ports 1in, 8out
Cable diameter In:7-10 mm, out:2x5mm
Adapter 8 SC / LC duplex
Color White
Splitter Mini module 1x8 splitter





Fiber Optic Box FTB108B Product pictures:

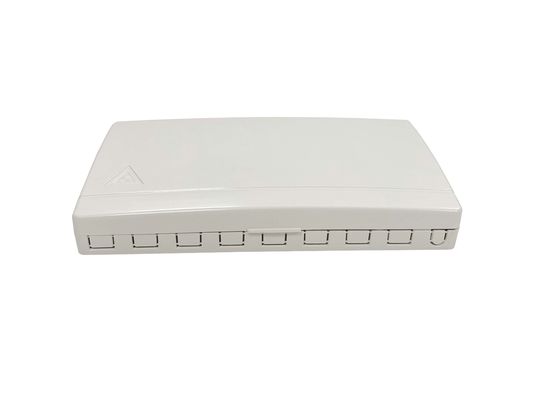

Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity 0 Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity 1

Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity 2Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity 3

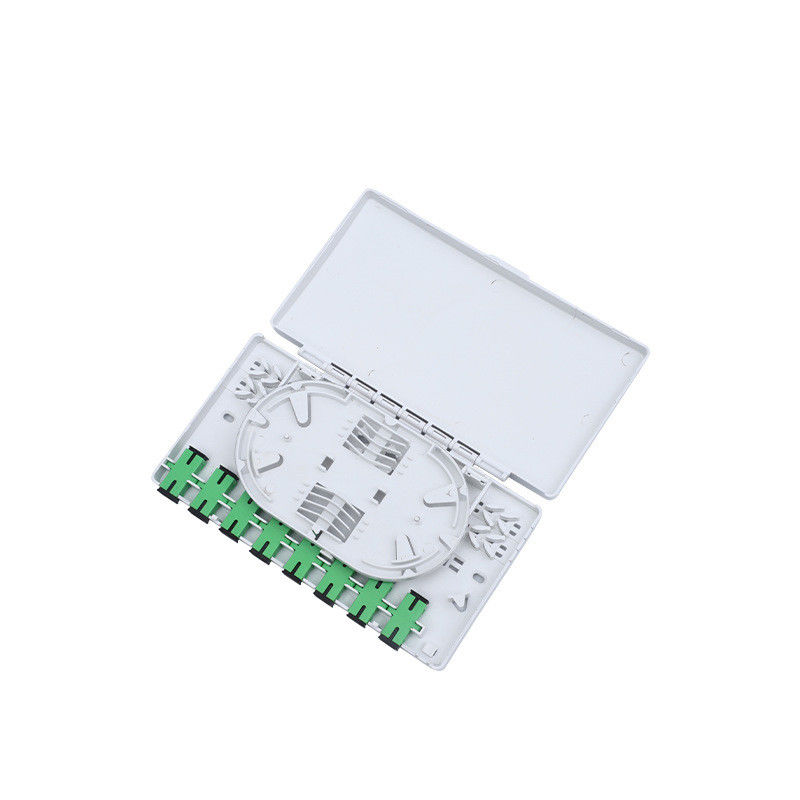

Optic Terminal box front, 8 SC adapter ports Fully load with 1*8 mini splitter+ 8pcs SC coupler

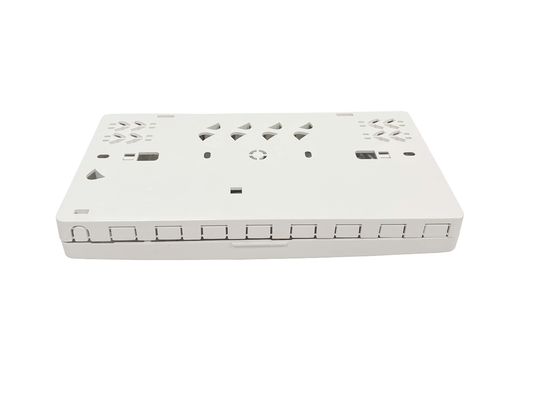

Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity 4Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity 5

Go-through design for cable entry and out, no need uncut cable when it's mulit-cores. 2ports entry port on bottom side and 2ports on top side.

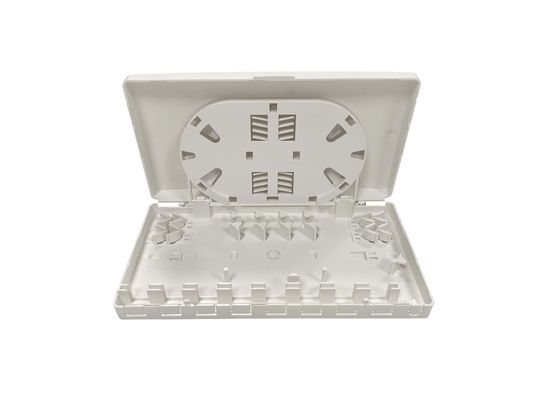

Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity 6Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity 7

With 1pc splice tray for storage fiber, 8slot for fiber heat shrinkable protection sleeve. and the splice tray can be removeble during installation.



Actual pictures in fiber box production line



Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity 8Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity 9Fiber Optic Termination Box for FTTH Indoor Wall Mount with 8 Core Capacity 10
