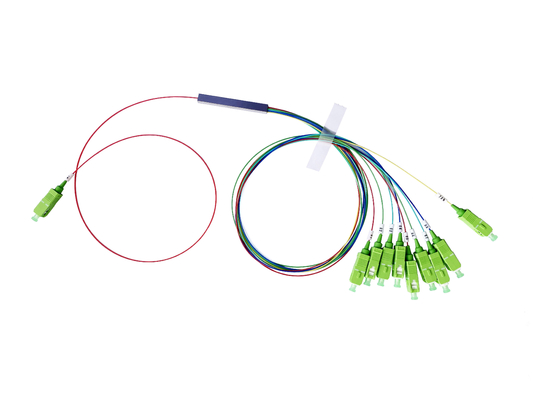

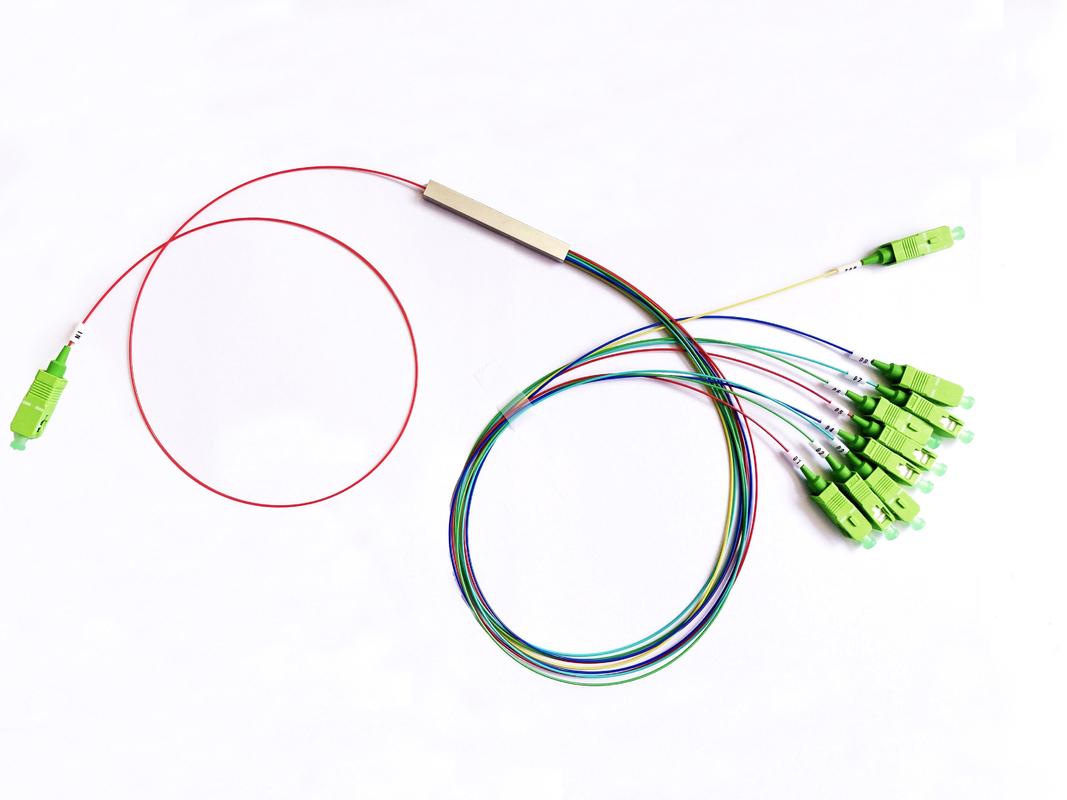

Steel Tube NAP Fiber Optical Splitter G657A1 1x9 FTTR PLC Splitter SC APC Connector
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Split Ratio | 1x9 Optial Splitter | Fiber Type | G657A1 |
|---|---|---|---|
| Insertion Loss | 2.2dB / 16.3 DB | Connector | SC APC Connector |
| Wavelength | 1260 - 1650 Nm | PDL(Max.) | 0.3dB |
| Standard | Telcordia GR-1221 And GR-1209 | Tube Dimension | 60*7*4mm |
| High Light | Steel Tube Fiber Optical splitter,FTTR Fiber Optical splitter,G657A1 FTTR PLC splitter |
||
Product Description
FTTR 1:9 1x9 70/30 Unbalanced Fiber Optic Mini Splitter Steel Tube NAP 1X2+1X8 Splitter
Quick Deatails of 1X9 Fibra Optica PLC Splitter
- 1x9 unbalanced split ratio, not only 50/50
- Split ratio type: 85/15 80/20 70/30 60/40
- 10/90 can be use with 1x8 plc splitter+1x2 FBT coupler
- 1x3 1x5 1x6 1x12 1x24 can be customized with PLC technology
- SC LC FC ST connectors can be use
Optical splitter is one of themost component in the FTTH netowrl. In addition to the conventional 1xN/2XN series splitter, as user’s requirements for the network change, demand for 1x3 1x6 1x5 1x9 1x12 1x24 single mode and multi mode splitters are increasing,and they can better meet the market demand for special light splitting ratio. The predecessor of this 1x9 Splitter is FBT 1X2 fused unbalanced splitter (coupler) and 1x8 PLC balanced splitter . In contrast, the large scale popularization of the 1x9 splitter chip greatly reduces the cost of the related network wiring, but ensure better long term optical performance than fusion couplers.
Features
• Low insertion loss and high return loss
• PDL automatic screening system(Ultra low PDL is available)
• High reliability and stability
• Connector can up to grade B
• 100% 3D tested by Daisi and Sumix
• High-low temperature cycle test
• 100% test before delivery
• FTTH Cabling solution could be design
1x9 Splitter Specification
| Split ratio (%) | 85/15 | 80/20 | 70/30 | 60/40 | |
| Operating wavelength (nm) | 1260-1650 | ||||
| Fiber type | G657A or customized | ||||
| IL max(dB) | channel 1 | 1.6 | 1.8 | 2.1 | 2.7 |
| channel 2-9 | 21.0 | 18.6 | 16.5 | 15.1 | |
| IL uni(dB) | Channel 2-9 | 1.8 | 1.8 | 1.8 | 1.8 |
| Return loss (dB) | ≥55 | ||||
| Directivity (dB) | ≥55 | ||||
| PDL (max.) | 0.3 | 0.3 | 0.3 | 0.3 | |
| Uniformity (max.) | 0.8 | 0.8 | 0.8 | 0.8 | |
| Wavelength dependent loss (dB) | ≤0.3 | ||||
| TDL (max.) | 0.5 | ||||
| Operating temperature | -40 ~+85 | ||||
| Storage temperature | -40 ~+85 | ||||
| Dimension (mm) / LXWXH | Bare fiber | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 |
| 900um | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 | |
| ABS box | 120x80x18 | 120x80x18 | 120x80x18 | 120x80x18 | |
Note:
1. Specified without connectors
2. Add an additional 0.2dB loss including connectors

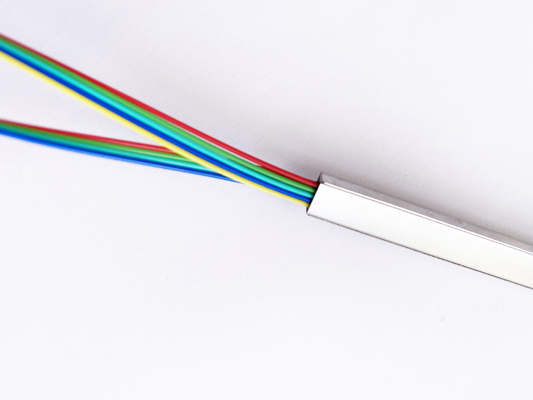

1x9 unbalanced splitter use the same steel tube 60*7*4mm as 1x8 splitter, input 1, output 9= 4*2+1pcs fiber array.

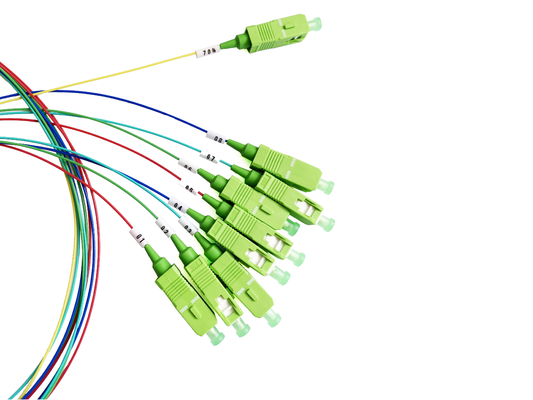

Fiber color is colorful, loose tube 900um can be customized, like blue, orange, green ,brown, gray, white, red, black, etc, with number marks to distinguish.
In order to distinguish the split ration, use different color like blue to mark, this special chip 1x9 ensure unbalanced split ratio not equal types, which can meet special requirements and flexible optical application, and is widely used in 5G FTTR networks;
Output of the optical splitter can divide into 70/30 80/20 60/40 or 85/15% 4types;
All types of optical connectors can be used, like SC FC LC ST; Polish method: UPC, APC；
Input ouput pigtails length: 0.5meter, 1meter, 1.5meter, etc
Application
- Passive optical network (such as EPON, GPON, BPON, FTTX, FTTH, etc.)
- Supports multiple users to share a single PON interface.
If buy 1:9 optical splitter blockless type only, will pack in blister box with test report. The tube, connectors or cables will be fixed in place in blister box with good protection.
Pre-terminated with connectors and assembly in optical nap box or distribution box is acceptable at factory before delivery.
