Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals

MOQ: 10 PCS
Price: 1.0USD-18.6USD
Standard Packaging: 1 pc per box, 30 pcs per carton shipping box
Delivery Period: 5-8 working days
Payment Method: Western Union, T/T, L/C
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS CE ROHS
Model Number
FDB6001 (GP62DW-9)
Capacity:
2 Cores
Cable Ports:
3 Pcs
Dimension:
150*120*37mm
Material:
ABS
Color:
White
Application:
FTTH FTTX ODN,PON Network
Adapter:
2 SC Simplex Adaptors
Application:
Outdoor Wall Mount, Pole Mount
Feature:
Waterproof
Sealing Method:
Rubber Seals
Highlight:

Optical Fiber Terminal Connection Box

,

Wall Mounting Fiber Terminal Connection Box

,

Waterproof Sealing Fiber Terminal Connection Box

Product Description

FDB6001 terminal box is a compact fiber terminal box for use at the final fiber termination point outside the wall of customer premises. It provides good fiber protection and convenient connectivity for the end users.





FDB6001 Fiber Terminal Box Features

  • This box could be used for outdoor wall mounted applications
  • Cable ener from bottom
  • Support field assembly or fusion splice
  • Box and key design is easy for operation with complete functions of small size
  • It could be used for adaptors such as SC(up to 2 pcs) or LC (up to 4 pcs)
  • It could load 1:2 mini type plc 1unit
  • Protect level:IP65



FDB6001 Fiber Terminal Box Specification

Model FDB6001
Dimension (W*D*H) 150*120*37mm
Max.Capacity 2 core (single fiber)
Cable ports 1in 2out
Cable diameter Φ12mm
Splitter quantity 1pc 1x2(SC) or 1x4(LC) steel tube



FDB6001 Fiber Terminal Box Component kits:

Item no. Description Qty
1 Box body 1pc
2 Box cover 1pc
3 Hasp 2pcs
4 Sealing ring 2pcs
5 Sealing plug 2pcs
6 Sc/apc adapter 1pc

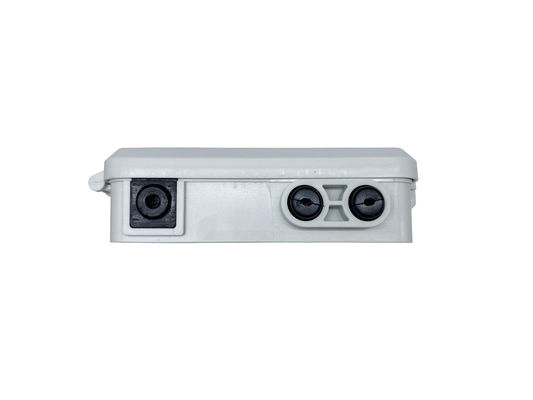

Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals 0

simple structure, compact size, internal have deisgn for cable winding, fusion splicing slots for heat shrink protection tubes, and 2 adapter slot for sc simplex without flange.

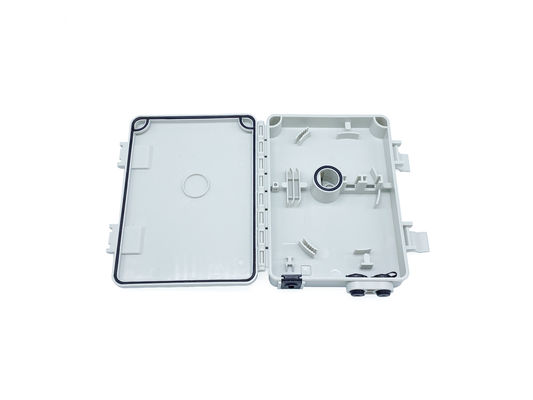

Wall Mounting SC 2 Core Optical Fiber Terminal Connection Box with Waterproof Sealing and Rubber Seals 1

The bottom and cover is connected with hinge, not separate. the cable inlet and outlets are all sealed with rubber, waterproof and dustproof.
