FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution

MOQ: 100 PCS
Price: 1.0USD-18.6USD
Standard Packaging: 1pc/box, 10pcs per carton box
Delivery Period: 5-8 working days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 10000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
FDB0208D
Material:
ABS+PC
Color:
White
Capacity:
FTTH Drop Cable 8 Cores
Cable Port:
3 Cables Gland
Dimension:
240*195*66 Mm
Adapter:
8pcs SC SX/ LC DX
Installation:
Wall Mount, Pole Mount
Usage:
Indoor Or Outdoor
PLC Splitter:
1x2, 1x4, 1x8 Mini Splitter
Sample:
Support
Highlight:

Distribution Fiber Optic Splitter Box

,

8SC Fiber Optic Splitter Box

Product Description

FDB0208D Fiber Optic Distribution Box





FDB0208D is a new generation product for fiber to the home. It is designed to connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter in FTTX network.


Features
  • It is easily to access the box by sliding shackle
  • Rotate tray with 8SC adapter bracket, laser mark on lid
  • It is applicable for outdoor cables or indoor soft cable
  • The box can use for a minimum period of 20 years.
  • FTTH outdoor wall mounted
  • All port with rubber seal, waterproof circle, protection class is IP65
  • Made of high quality ABS+PC plastic, all metal parts is stainless steel
  • Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance


FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution 0FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution 1

There are 3pcs cable glands for drop cable.

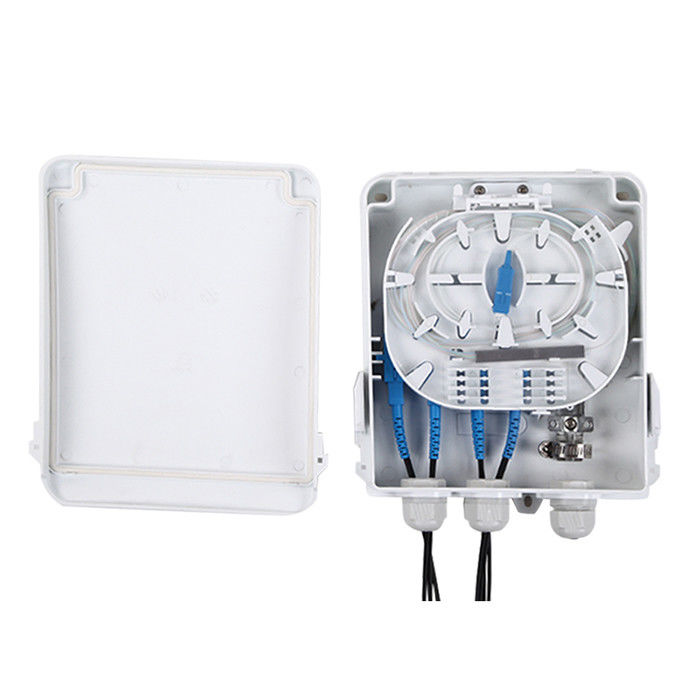

there is a splice tray:

one side is for fusion, max. splice 8fibers in total, and 2 slots for plc splitter steel tube.

the other side is for distribution with 8pcs SC/APC adapters, and ftth drop cable connection on site work.

FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution 2FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution 3



lock system: 2 buckles, anti-thief, and waterproof, special design., back with wall mounting holes with screws and pole mount with clamps.

FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution 4FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution 5.



Big space for splicing,can be put 8pcs fiber Splicing Sleeve.

FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution 6FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution 7





Specification
Model FDB0208D (GP62DW-I)
Dimension (W*D*H) 210*175*50mm
Max.Capacity 8 core(single fiber)
Cable ports 3 cable glands
Cable diameter In:Φ7-12m; out:2*3mm
Splitter quantity 1x8 steel tube
Adapter quantity 8SC
Color White
