Efficiently Distribute Optical Signals Fiber Optic PLC Splitter 1*4 No Connector For PON Networks

MOQ: 100 pcs
Price: 1.1USD-4.58USD
Standard Packaging: 1pc/ box,80pcs/carton box
Delivery Period: 5-8days after payment
Payment Method: Western Union, T/T, MoneyGram
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO, CE
Model Number
1:4 PLC splitter no connector
Split Ratio:
1x4 Splitter
Fiber Type:
G657A1
Insertion Loss:
2.2dB / 16.3 DB
Connector:
No Connector
Wavelength:
1260 - 1650 Nm
Tube Dimension:
60*7*4mm
Input And Output Length:
1meter
Cable Type:
Tight Buffer
Cable Color:
White, Blue, Colorful
Cable Diameter:
0.9mm
Highlight:

PON Networks Fiber Optic PLC Splitter

,

Efficiently Fiber Optic PLC Splitter

,

1*4 Fiber Optic PLC Splitter

Product Description

Fiber optic PLC splitter



Fiber optic splitter is an optical passive device used to realize the splitting and combining of optical signals. Fiber Splitter distributes the light energy which transmitted in one fiber to two or more fibers in a set ratio, or combines the light energy which transmitted in multiple fibers into a single fiber.



PLC splitter is Planar Light wave Circuit splitter based on optical semiconductor technology. It is one of the most important passive devices in passive optical network (PON), with multiple inputs and multiple outputs, commonly use MxN to indicate a splitter has M inputs and N outputs.The optical splitters used in fiber optic CATV systems are generally 1×2, 1×3, 1×4, 1×8, 1×9, 1×12, 1×16, 1×24, 1×32 and 1xN etc. PLC splitters are used to evenly divide one or two optical signals into multiple optical signals.





Features

Low PDL, Insertion loss and back reflection loss
Compact size,good channel to channel uniformity
High Reliability and Stability
Wide Operating Temperature and operating Wavelength
Excellent Environmental & Mechanical Stability
Conforms with Telcordia GR-1221 and GR-1209 and ROHS
Fiber identification (ribbon cable) conforms to IEC 6030

Application
FTTx (FTTB, FTTH, FTTC) Systems
Passive Optical Networks (PON) Networks
CATV Link
Optical Signal Distribution
Local Area Networks (LAN)
Test Equipment




Fiber optic splitter 1:4 Optical Specification

Split ratio 1×2 1×4 1×8 1×16 1×32 1×64 1×128 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260-1650nm
Fiber Type G657A1 or customer specified
Insertion Loss (dB)S Grade 4.2 7.6 10.7 14 17.2 20.8 24 4.4 8 11 14.6 17.8 21
Insertion Loss (dB) P Grade 4 7.4 10.5 13.8 17 20.4 23.7 4.2 7.7 10.8 14.1 17.4 20.7
Loss Uniformity(dB) 0.6 0.8 0.8 1.0 2.0 2.0 2.0 0.8 1.0 1.2 1.5 1.8 2.0
PDL(dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.5 0.2 0.2 0.3 0.3 0.3 0.4
Return Loss (dB) 55
Directivity (dB) 55
Wavelength Dependent Loss(dB) 0.6 0.8 0.8 1.0 1.5 2.0 0.2 0.8 1.0 1.2 1.5 1.8 2.0
Operating Temperature -40- +85℃

Note: All the data above does not include connectors.

UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB



Actually picture:

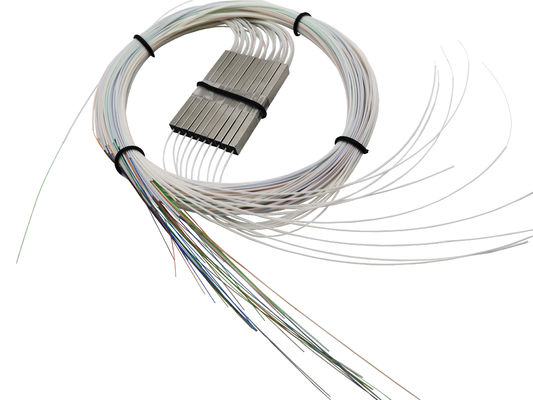

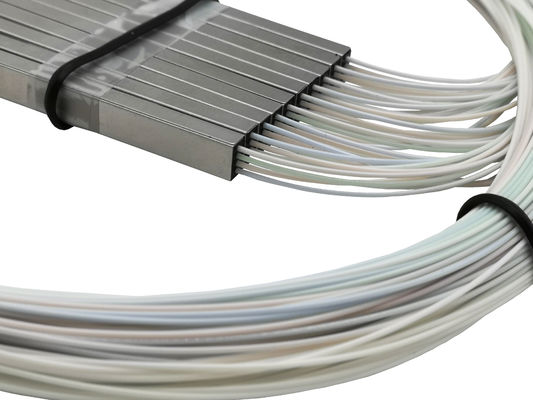

Without any connector

Efficiently Distribute Optical Signals Fiber Optic PLC Splitter 1*4 No Connector For PON Networks 0

With SC APC connector

Efficiently Distribute Optical Signals Fiber Optic PLC Splitter 1*4 No Connector For PON Networks 1
