Fiber Optic FBT Splitter 1:2 5% 95% Ratio Dual Window Coupler High Stability And Reliability Accurate Coupling Ratio For FTTH

Brand Name:	Yingda
Model Number:	FBT
MOQ:	100pcs
Price:	1.1USD-4.58USD
Delivery Time:	7days
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Reflection:

1310/1490nm

Transmition:

1550nm

Connector Type:

SC/UPC SC/APC

Package:

Blister Box, 2pcs/ Box

Coupling Ratio(%):

1~50

Directivity (dB):

>55

Operating Temperature (℃):

-20 - + 85

Storage Temperature (℃):

-40 - + 85

Port Configuration:

1x2 Or 2x2

Packaging Details:

1pc/box, 10pcs/master box

Supply Ability:

20000pcs per month

Highlight:

Dual Window Fiber Optic FBT Splitter

1:2 Fiber Optic FBT Splitter

High Stability Fiber Optic FBT Splitter

Product Description

Single Mode Fused Coupler

Single mode Dual Window Coupler 1x2, 2x2 offer very low insertion loss, low polarization dependence and excellent

environmental stability. Accurate coupling ratio from 50/50 to 1/99, fiber type 250um bare fiber, 3mm and 900um loose

tube fiber are available with very tight uniformity in a wide wavelength range of both 1310 nm and 1550 nm windows.

Singlemode dual window coupler find extensive application to perform power splitting and monitoring functions in all

kinds of optical communication systems.

Features

Low insertion loss

High isolation

High stability and reliability

Different ratios of splitting, according to your requirement

Application

Long-haul

Telecommunications

CATV Systems & Fiberoptic

Sensors

Local Area Network

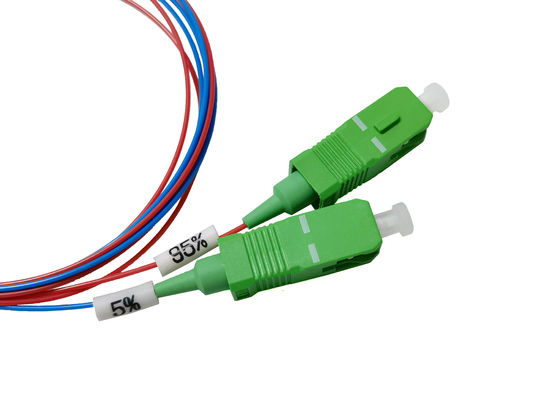

Fiber Optic FBT Splitter 1:2 5% 95% Ratio Dual Window Coupler High Stability And Reliability Accurate Coupling Ratio For FTTH 0

Specification

Coupling Ratio/insertion Loss Conversion Chart

1*2 FBT Coupler Coupling Ratio Insertion Loss Conversion Chart

Coupling Ratio	Insertion Loss
	Premium	A Grade
40/60	4.7/2.7	5.0/2.9
30/70	6.0/1.9	6.4/2.1
20/80	7.9/1.2	8.5/1.4
10/90	11.3/0.5	12.0/0.8
5/95	14.0/0.35	14.6/0.43
1/99	22.5/0.25	23.0/0.35
Coupling Ratio(%)	1~50
Directivity (dB)	>55
Operating Temperature (℃)	-20 – + 85
Storage Temperature (℃)	-40 – + 85
Fiber Type	Corning Single mode SMF-28, DS Fiber, or flex core
Fiber Pigtail Length (m)	1
Port Configuration	1×2 or 2×2
Package Dimension	Package D,E,F,G

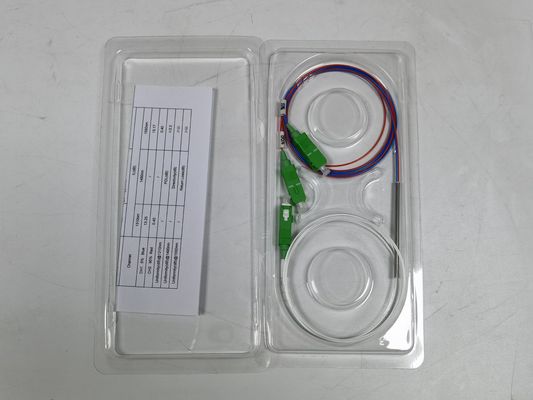

Package information:

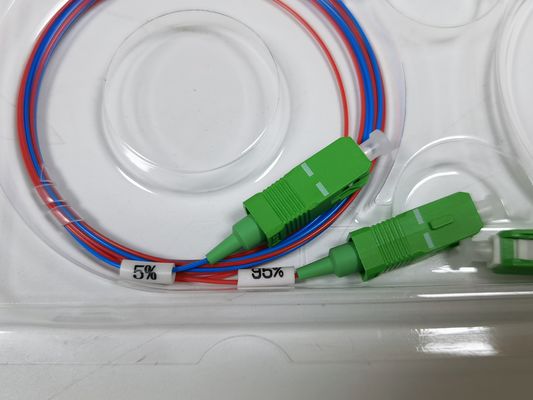

Fiber Optic FBT Splitter 1:2 5% 95% Ratio Dual Window Coupler High Stability And Reliability Accurate Coupling Ratio For FTTH 1

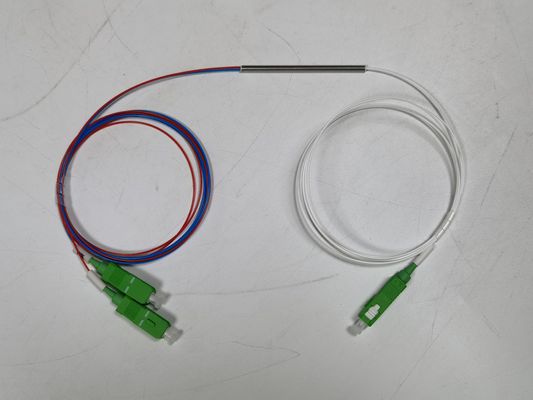

Fiber Optic FBT Splitter 1:2 5% 95% Ratio Dual Window Coupler High Stability And Reliability Accurate Coupling Ratio For FTTH 3
