FTTH Fiber Optic Access Terminal Closure ST Adapter Type Fiber Terminal Box

Name: FTTH Fiber Optic Access Terminal Closure ST Adapter Type Fiber Terminal Box
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FDB0216M
Price: 9.00 USD
Availability: InStock

Brand Name:	Yingda
Model Number:	FDB0216M
MOQ:	10pc
Price:	1.0USD-18.6USD
Delivery Time:	7-15days
Payment Terms:	T/T, D/A, D/P,Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，China

Certification:

ISO CE

Structuer:

Stranded Loose Tube

Suitable Adapter:

SC,LC

Product:

6 Core Fiber Termination Box

Protection Level:

IP65

Mount Type:

Wall Mount, Pole Mount

Life Span:

≥1000 Times

Splitter Qty:

1:8 Mini Splitter

Polishing:

APC UPC

Materoal:

ABS+PC

Adapter Type:

SC, LC, FC, ST

Thickness:

0.6, 0.8, 1.0mm

Max. Adapter:

18-24pcs SC

Max Capacity:

96cores Single Fiber (4tray, 24fiber/tray)

Packaging Details:

6 pcs per carton

Supply Ability:

10000/month

Highlight:

FTTH Fiber Optic Access Terminal Closure

Fiber Optic Access Terminal Closure

ST Adapter Fiber Terminal Box

Product Description

Description

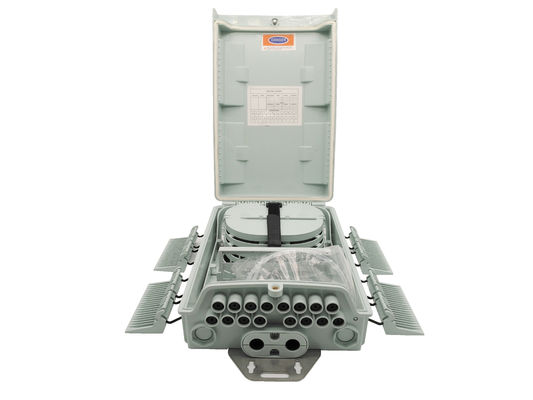

FDB0216M fiber access terminal box can accommodate up to 16 users and 96 splicing points. It is used as a splicing box and terminal point for connecting feeder cables and incoming cables in FTTX network systems. It integrates fiber splicing, branching, distribution, storage and cable connection in a sturdy protective box.

Product

FTTH Fiber Optic Access Terminal Closure ST Adapter Type Fiber Terminal Box 0

FTTH Fiber Optic Access Terminal Closure ST Adapter Type Fiber Terminal Box 1

FTTH Fiber Optic Access Terminal Closure ST Adapter Type Fiber Terminal Box 2

FTTH Fiber Optic Access Terminal Closure ST Adapter Type Fiber Terminal Box 3

FTTH Fiber Optic Access Terminal Closure ST Adapter Type Fiber Terminal Box 4

Feature

1. Waterproof design, protection level IP65, integrated flip-top splicing box and adapter bracket.
2. Impact test: 1K10. Tensile force: 100N. Fully sturdy design.
3. All stainless steel plates and rust-proof bolts and nuts.
4. The fiber bending radius is controlled above 400mm.
5. Suitable for fusion splicing or mechanical splicing, optional installation of 2 1x8 splitters.
6. Mechanical sealing structure and mid-span cable entry (10-17.5mm).

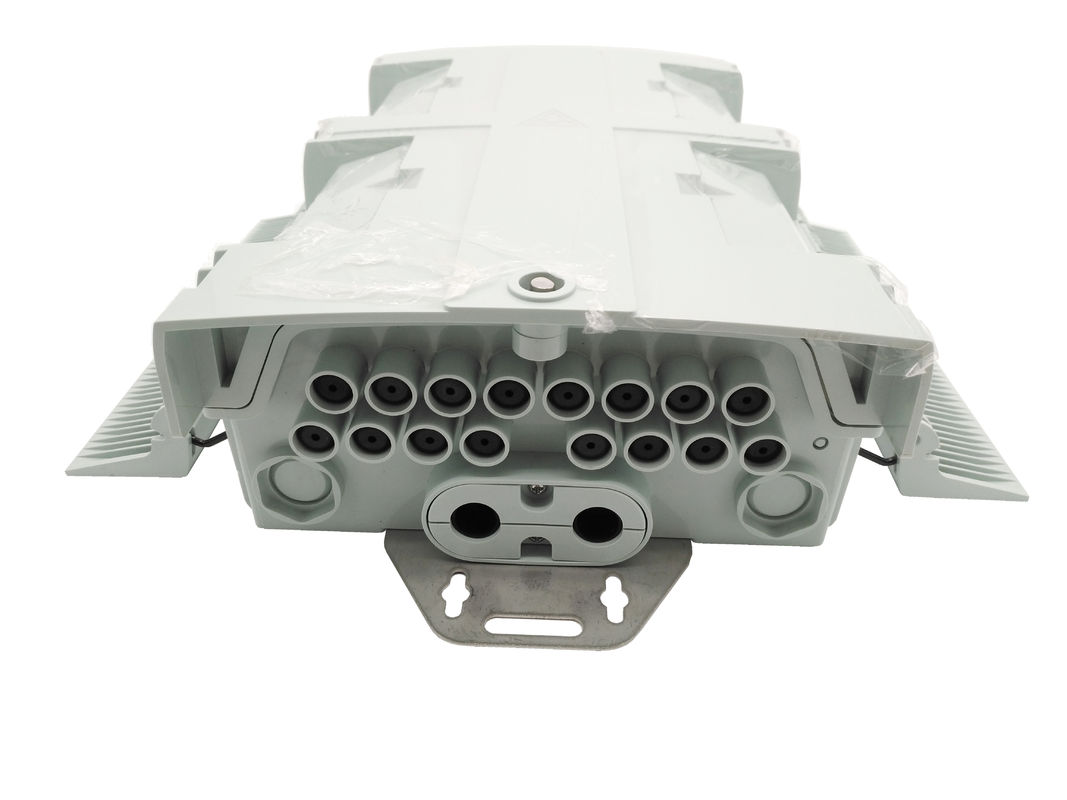

7. 16 cable entry ports for introducing optical cables, 16 adapters for introducing optical cable wiring.

Specification

1. Wall-mounted installation and pole-mounted installation
2. FTTH pre-installation and on-site installation
3. 2*3mm indoor FTTH home optical cable and outdoor 8-shaped FTTH self-supporting home optical cable

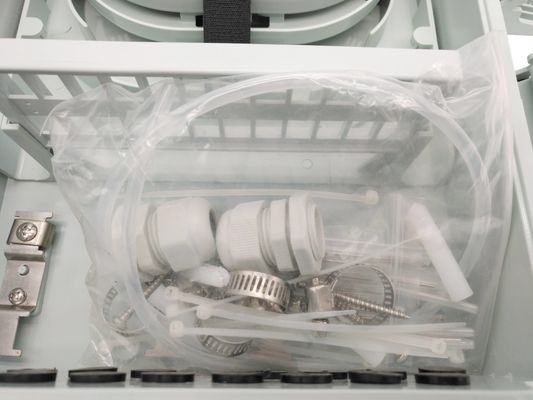

Standard accessories: Splice box and cable management tools, mounting nuts and bolts, protective sleeves, heat shrink tubing, cable ducts, wrenches, covers, brackets, cable entry rubber seals, metal wall mount plates
