Fiber Optic 2-Entry Cable Gland 16 Out 16 Core 1x16 Splitter Box for Networking

MOQ: 500
Price: 1.0USD-18.6USD
Standard Packaging: 10 pcs per carton, 13kg
Delivery Period: 5-10days
Payment Method: D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Shenzhen，China
Brand Name
Yingda
Certification
ISO CE
Model Number
FDB0216A
Highlight:

1x16 Splitter Box

,

16 Out 16 Core Splitter Box

Product Description

Description

Regarding the FDB0216A, from the inside to the outside are two sealed waterproof inlet holes and 16 output holes, and at least one tray can accommodate adapters and back fiber storage. It uses a PLC splitter to connect feeder cables or distribution cables to the user's drop cable. It integrates fiber splicing, branching, distribution, storage and cable connection functions in a sturdy protective box.





Feature

1. The box comes with a key + 2 buckles, the cable entrance can be sealed or uncut, suitable for outdoor optical cables or indoor soft optical cables
2. The service life of the box is at least 20 years, outdoor FTTH wall-mounted or pole-mounted
3. The box has a waterproof ring, IP65 protection level, high-quality ABS+PC plastic, and all metal parts are stainless steel
4. Anti-ultraviolet, anti-ultraviolet, rainproof, good sealing performance, the front of the connector turntable can be connected to a 16SC adapter or LGX module, and the back is used
5. There are 16 cores in the fusion wiring area, clamps and fasteners are used for in and out optical cables, large redundant storage space for optical fibers, and reasonable bending radius

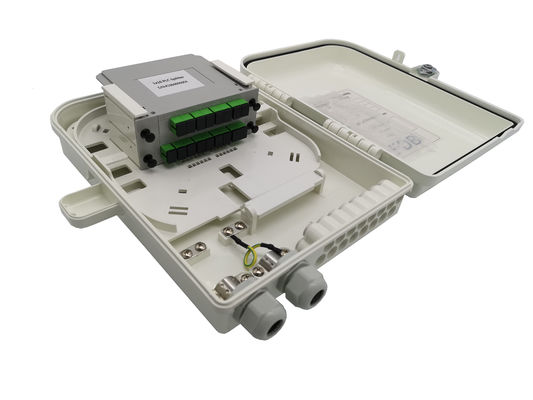

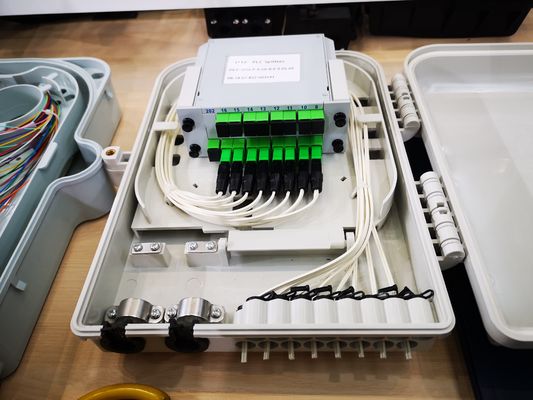

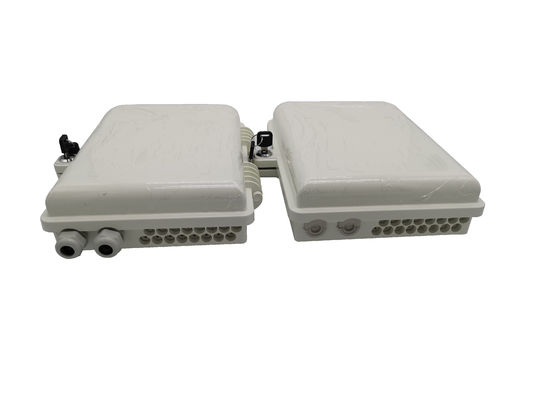

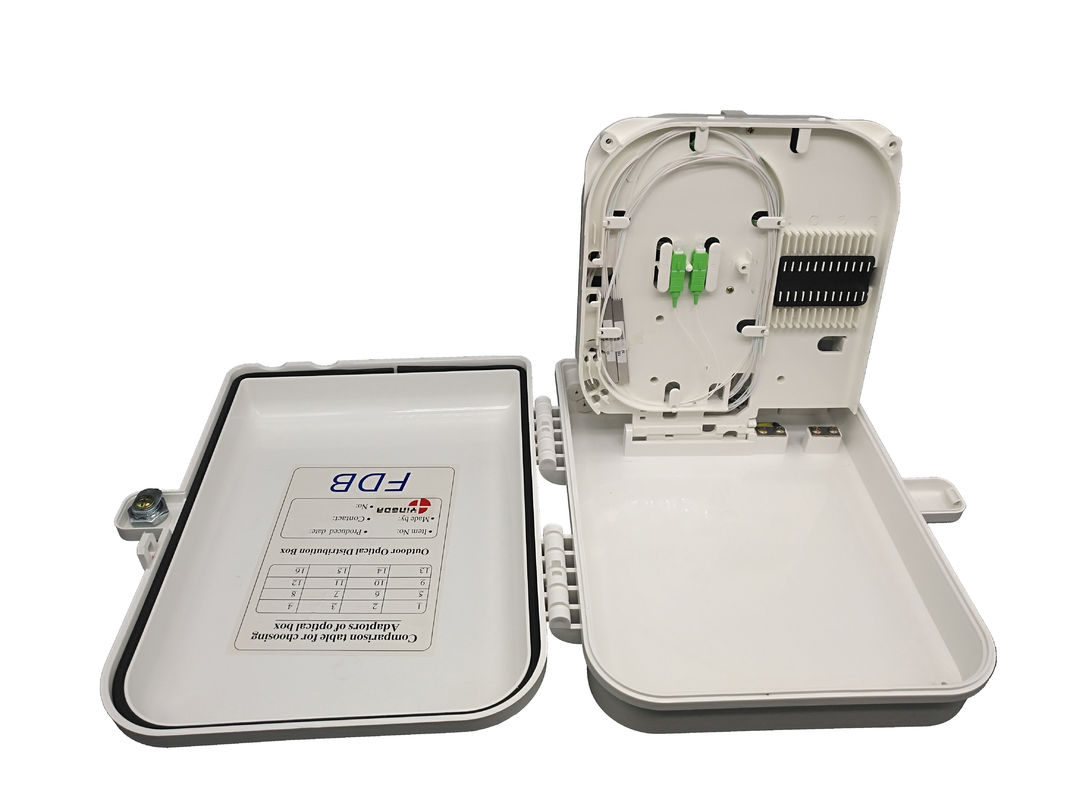

Fiber Optic 2-Entry Cable Gland 16 Out 16 Core 1x16 Splitter Box for Networking 0

Fiber Optic 2-Entry Cable Gland 16 Out 16 Core 1x16 Splitter Box for Networking 1

Fiber Optic 2-Entry Cable Gland 16 Out 16 Core 1x16 Splitter Box for Networking 2

Fiber Optic 2-Entry Cable Gland 16 Out 16 Core 1x16 Splitter Box for Networking 3



Fiber Optic 2-Entry Cable Gland 16 Out 16 Core 1x16 Splitter Box for Networking 4



package

Net weight
Inner box
Quantity /carton box
Carton box size
Gross weight/
0.75kg cm 10pc
57*28*26cm
15kg
