12 Core Pre-connectorized Fiber Optic Splitter Box with IP68 Protection for FTTX Network
  • name
  • name
  • name
  • name

12 Core Pre-connectorized Fiber Optic Splitter Box with IP68 Protection for FTTX Network

MOQ: 10pcs
Price: 1.0USD-18.6USD
Standard Packaging: 1pc/box
Delivery Period: 7-15days
Payment Method: T/T, L/C, Western Union
Supply Capacity: 20K/unit/per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO, CE, ROHS
Model Number
CTO-12BY
Features:
Fiber Optic Splitter Box
Material:
PC+ABS/ABS
Box Type:
Fiber Optic NAP Box
Waterproof:
IP68 Outdoor
Installation:
Wall Mount, Pole Mount
Cable Ports:
10/12 Pcs Waterproof Mini SC Adapter
Box Dimension:
197*162*77mm
Max Capacity:
12cores Single Fiber
Splitter:
1×8, 1×9, 1×2+1×8 Splitter, 1×4+1×8 Splitter Blockless Type
Color:
Black
Mounting Method:
Wall Mounting, Pole Mounting
Highlight:

12 Core Fiber Optic Splitter Box

,

IP68 Fiber Optic Splitter Box

,

FTTX Fiber Optic Splitter Box

Product Description



IP68 Outdoor 12 cores pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.



Features

  • The bottom shell and upper cover are welded by hot plate welding, which is not detachable..
  • Material: Modified PP plastic or PC+ABS
  • Moisture proof, waterproof, dust-proof, anti-aging.
  • Protection level up to IP68.
  • The interior is equipped with 1×2 or 1×4 PLC splitter+ 1×8 PLC splitter or 1×8 PLC splitter.
  • Installation method: pole-mounted, aerial-mounted, wall-mounted.
  • It can be equipped with drop cable storage tray to meet the storage of 30 meters 5mm round cable.

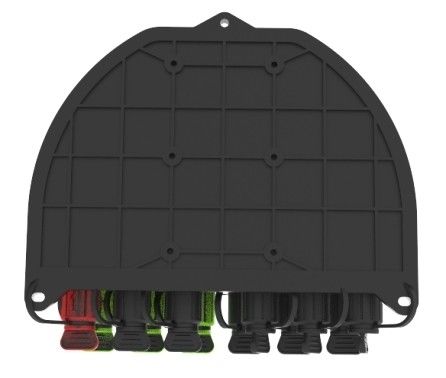

12 Core Pre-connectorized Fiber Optic Splitter Box with IP68 Protection for FTTX Network 0

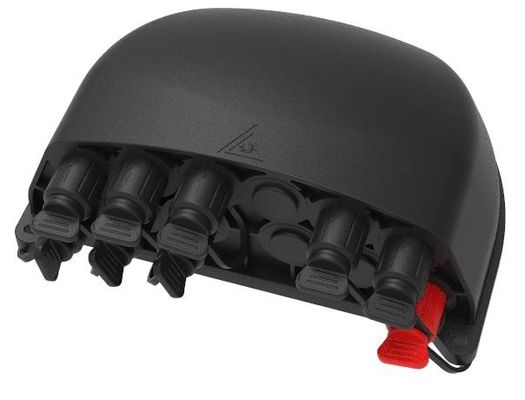

12 Core Pre-connectorized Fiber Optic Splitter Box with IP68 Protection for FTTX Network 1



Specification

Item Specifications Remark
Material of housing Modified PP plastic or PC+ABS
Material of internal components PC+ABS/ABS
Material of metal accessory High-quality stainless steel
External dimension(mm) 197*162*77mm A*B*C
Color Black
Installation hole position(mm) 143*181 D*E
Number of Pre-connectorized adapters 12 CTO-12BY(1red, 3green, 8black)
  9 CTO-12BY-1(1 red, 8 black)
Splitter 1x4 PLC splitter+ 1x8 PLC splitter CTO-12BY
  1x8 PLC splitter CTO-12BY-1
IP grade IP68
Flammability UL94-HB Default
Neutral salt spray test (NSS) 48h



Optical Distribution Box Environmental Requirements

Item Value
Operation temperature -40 ºC～+65 ºC
Installation temperature -5 ºC～+40 ºC
Storage temperature -40ºC～+65 ºC
Atmospheric pressure 70～106Kpa
Relative humidity ≤93％(+40℃)

Installation method

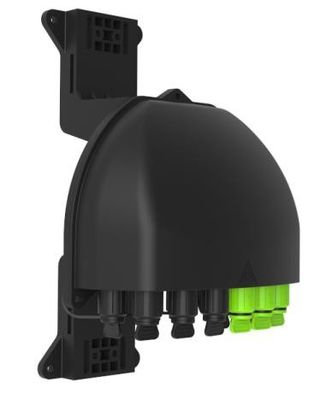

12 Core Pre-connectorized Fiber Optic Splitter Box with IP68 Protection for FTTX Network 2



Application:

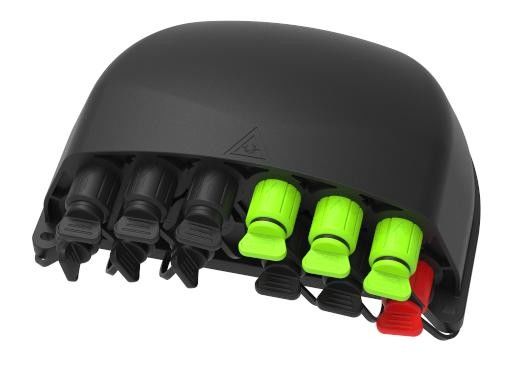

12 Core Pre-connectorized Fiber Optic Splitter Box with IP68 Protection for FTTX Network 3
