16 Port Fiber Optic Splitter Box S 1*8 1*16 Square Cable Out Port For FTTx Network Building And Management

FDB0216HF Optical Splitter  NAP Box

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

16 Port FTTH Drop Cable Box Features

• Total enclosed structurewith key and buckles
• High strength engineer plastic,wet-proof, water-proof, dust-proof, anti-aging
• Outdoor wall mount, pole mount or aerial mount, protection level up to IP65
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one
• Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

Specification

Product Details:

Cable ports

Cable entry: 2cable glands, 1uncut port, dia 13.5mm

Cable exit:  16pcs square flat drop cable ports 2.0*3.0mm

 max.4pcs white optical fiber fusion tray with lid,standard is 2pcs, ach tray capacity: 6core 1layer, dual layer 12core

the tray is clip fix on the back brackets, you can take it off for fast and easy operation on site.

the bottom bracket have slots for steel tube and splitter input side connectors, which ensure stability during long time transportation, not fiber broken or mess.  The adapter plate is plastic, and can hold max. 16pcs SC adapters or LC duplex adapters.

There are holes and projections on the adapter panel to fix the adapter, which can be fixed without screws. Only the protrusion should be aligned with the screw hole on the adapter and the metal spring piece of the adapter itself can be fixed.

The plate also can insert into the reserved hole to make it at place,no need screws to fix.

There is cable clamps to fix on the cable on the stainless brackets,total 4pcs cable entry: 1uncut port (mid span) and 2 cable glands, 16pcs drop cable exit.

Total box is quite often use outdoor wall mount or pole mount, anti UV, there is laser mark sticker inside of the cover. The box is open and close by a screw rods in front and 2 Allen screws (brackets) at both sides. Which make fast and safe construction for FTTH.

There are three mode adapter panel for option: adapter plate with 2trays, adapter holder with tray, splitter cassette holder

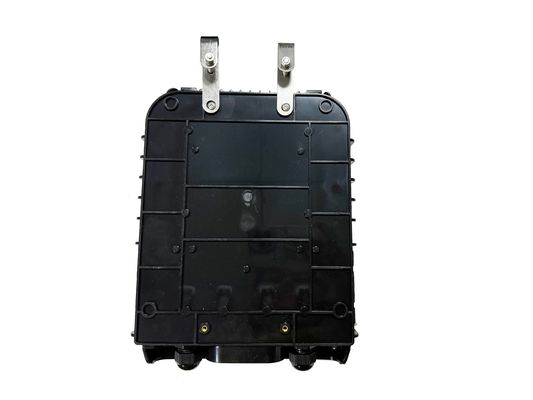

Mounted method:

Standard accessory

Splice tray 2pcs, 4pcs wall mount expansion screws, 16pcs fiber protective sleeve, 4pcs cable clamp,nylon ties, adapter plate for 16 x adapters, cable protection tube, key, PG 13.5 cable glands for distribution ports, Pole mounted kits (optional).

Related products:

                       FTTH drop cable                                                       SC field fast connector                                   SC optical coupler

                          FTTH drop cable                                               Fiber optic pigtails                                        Fiber optic PLC splitter

Application

• Wall-mounted, Pole-mounted Installation
• Suitable for ftth pre-connectorized drop cable with SC/LC connectors

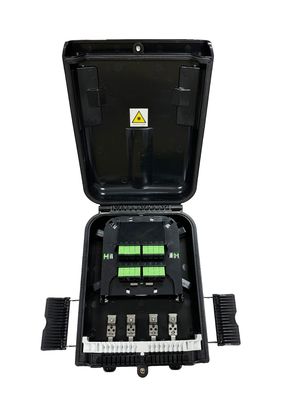

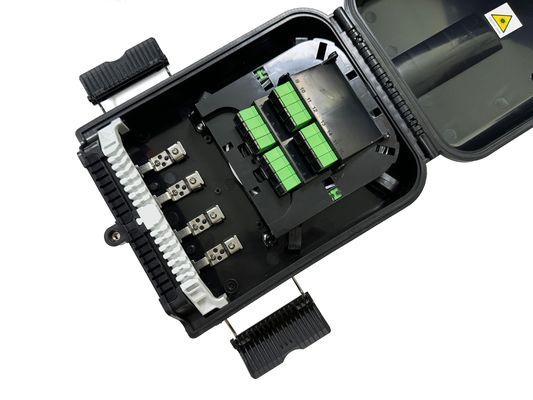

Actual pictures
